ELECTRICAL 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

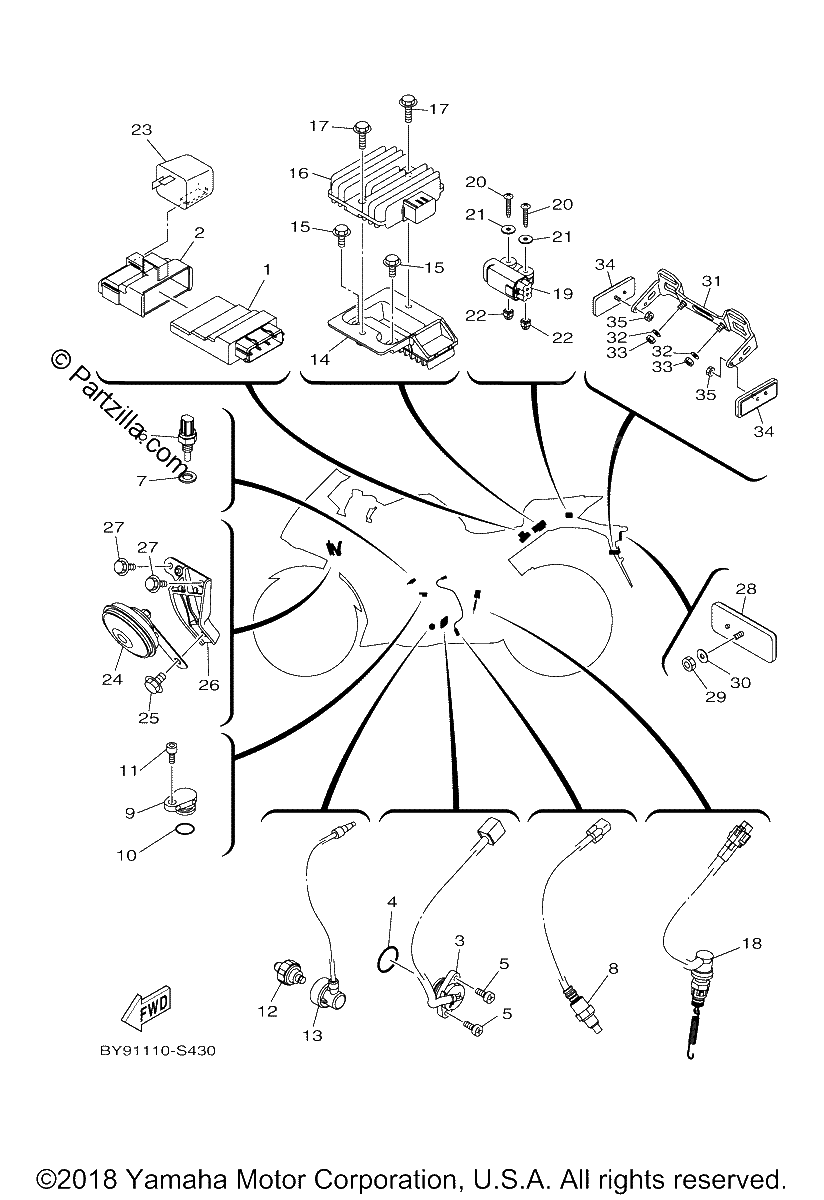

Diagrama de ELECTRICAL 2

Repuestos

#1
B02-H591A-10-00
ENGINE CONTROL UNIT
$383.21¢191 607
1
#2
1WD-H5546-00-00
BAND
$6.74¢3 370
1
#3
1WD-H2540-00-00
NEUTRAL SWITCH ASSY
$35.75¢17 877
1
#4
93210-21801-00
O-RING
$1.75¢874
1
#5
98507-05016-00
SCREW, PAN HEAD
$1.54¢771
1
#6
54P-H3591-00-00
THERMO UNIT (replaces 4P9-83591-00-00)
$31.65¢15 824
1
#7
90430-10804-00
GASKET
$4.90¢2 449
1
#8
1WD-H592A-00-00
SENSOR, OXYGEN
$90.87¢45 436
1
#9
2WD-E5189-00-00
PLUG
$6.81¢3 404
1
#10
93210-15566-00
O-RING
$6.32¢3 162
1
#11
91312-06016-00
BOLT
$5.37¢2 685
1
#12
1WS-82504-00-00
OIL PRESSURE SWITC
$66.99¢33 494
1
#13
1WD-H1315-00-00
LEAD WIRE ASSY
$17.18¢8 590
1
#14
1WD-H1961-00-00
COVER
No Disponible
1
#15
95817-06016-00
BOLT, FLANGE
$1.64¢822
1
#16
1WD-H1960-00-00
RECTIFIER REGULATOR ASSY
$103.53¢51 767
1
#17
95817-06025-00
BOLT,FLANGE (replaces 90105-06125-00)
$1.61¢805
1
#18
1WD-H2530-10-00
STOP SWITCH ASSY
$55.19¢27 594
1
#19
1WD-H2576-00-00
SENSOR, LEAN ANGLE
$73.90¢36 950
1
#20
90160-04009-00
SCREW, ROUND TAPPING
$5.89¢2 944
1
#21
90201-04028-00
WASHER, PLATE
$7.14¢3 571
1
#22
4B4-84334-00-00
NUT, ADJUSTING
$4.57¢2 283
1
#23
4VR-83350-00-00
FLASHER RELAY ASSY
$56.83¢28 417
1
#24
1WD-H3371-00-00
HORN
$34.15¢17 077
1
#25
95817-08012-00
BOLT, FLANGE
$4.35¢2 173
1
#26
1WD-H3378-00-00
STAY, HORN
$26.47¢13 237
1
#27
95817-06016-00
BOLT, FLANGE
$1.64¢822
1
#28
3C1-H5130-00-00
REAR REFLECTOR ASSY
$3.48¢1 742
1
#29
95617-05100-00
NUT, U
$7.30¢3 651
1
#30
90201-05043-00
WASHER, PLATE
$5.96¢2 978
1
#31
2MS-H4751-00-00
BRACKET, LICENSE
$14.08¢7 038
1
#32
90201-06055-00
WASHER, PLATE
$3.22¢1 610
1
#33
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.58¢1 288
1
#34
3C1-H5130-00-00
REAR REFLECTOR ASSY
$3.48¢1 742
1
#35
95707-05500-00
NUT, FLANGE
$6.76¢3 381
1
