FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

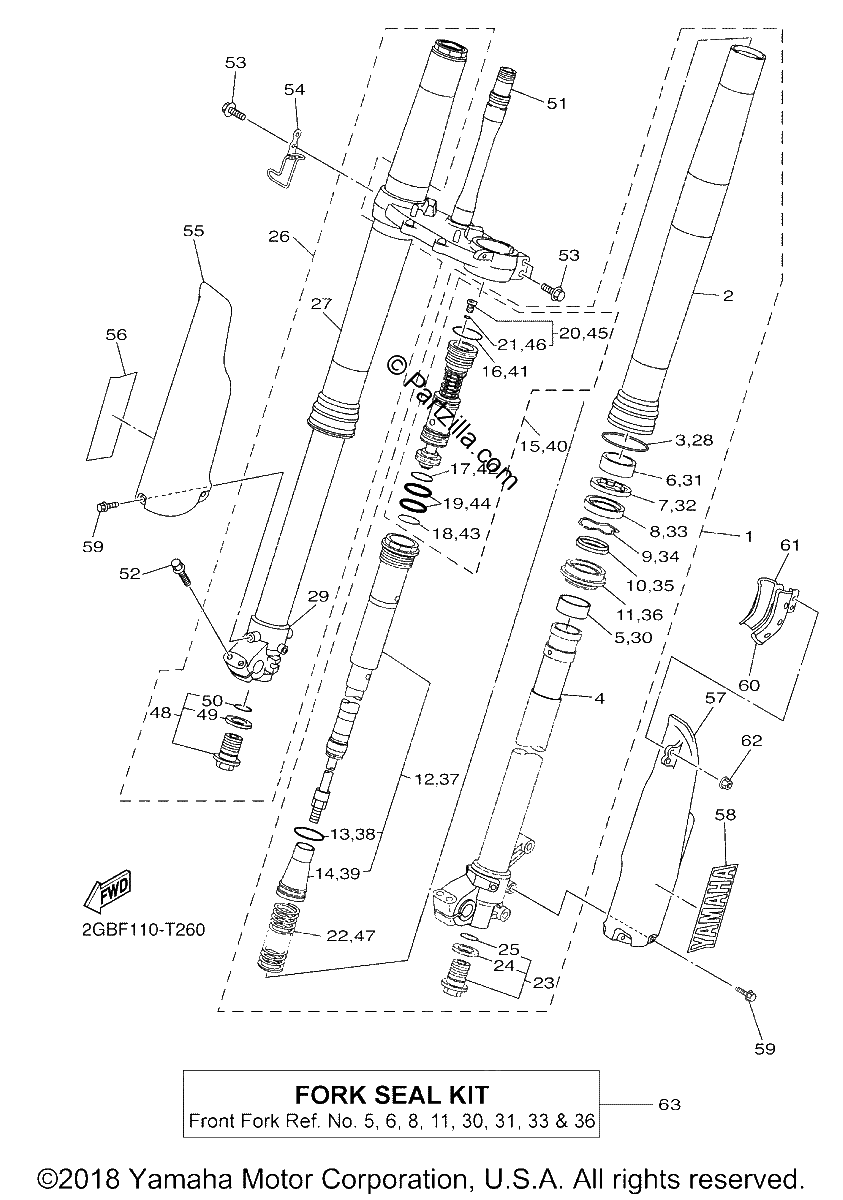

Diagrama de FRONT FORK

Repuestos

#1
2GC-23102-20-00
FRONT FORK ASSY (L.H
$1202.89¢601 444
1
#2
33D-23136-00-00
TUBE, OUTER
$822.24¢411 119
1
#3
17D-23153-00-00
RING, SNAP
$4.58¢2 289
1
#4
1DX-23120-00-00
INNER TUBE COMP. 2
$558.49¢279 243
1
#5
5XE-23171-L0-00
PISTON, FRONT FORK
$22.67¢11 333
1
#6
5XE-23125-L0-00
METAL, SLIDE 1
$23.02¢11 511
1
#7
5XC-23146-10-00
WASHER, OIL SEAL
$11.60¢5 802
1
#8
B29-23145-00-00
Oil Seal
$21.75¢10 873
1
#9
5XE-23153-L0-00
RING, SNAP
$7.04¢3 519
1
#10
B29-4381D-00-00
SCRAPER
$18.14¢9 068
1
#11
5XE-23144-L0-00
SEAL, DUST
$21.11¢10 557
1
#12
2GC-23170-10-00
CYLINDER COMP., FRON
$619.84¢309 919
1
#13
1C3-23147-L0-00
O-RING
$3.51¢1 754
1
#14
17D-23142-00-00
SEAT, SPRING UPPER
$77.73¢38 864
1
#15
2GC-2316A-10-00
VALVE COMP.
$349.98¢174 990
1
#16
1C3-23188-L0-00
O-RING
$3.00¢1 501
1
#17
1C3-23188-N0-00
O-RING
$7.04¢3 519
1
#18
1C3-23188-P0-00
O-RING
$6.51¢3 254
1
#19
1W4-23114-L0-00
GASKET
$8.14¢4 071
1
#20
1C3-23190-L0-00
AIR VALVE COMP.
$21.98¢10 988
1
#21
1C3-23188-R0-00
O-RING
$3.00¢1 501
1
#22
2GB-23141-40-00
SPRING, FRONT FORK
$115.71¢57 857
1
#23
5XC-23111-00-00
BOLT, CAP
$75.81¢37 904
1
#24
2HH-23158-L0-00
GASKET
$10.43¢5 215
1
#25
276-23114-00-00
GASKET
$4.25¢2 128
1
#26
2GC-23103-20-00
FRONT FORK ASSY (R.H
$1202.89¢601 444
1
#27
33D-23136-00-00
TUBE, OUTER
$822.24¢411 119
1
#28
17D-23153-00-00
RING, SNAP
$4.58¢2 289
1
#29
1DX-23110-20-00
INNER TUBE COMP.1
$327.55¢163 777
1
#30
5XE-23171-L0-00
PISTON, FRONT FORK
$22.67¢11 333
1
#31
5XE-23125-L0-00
METAL, SLIDE 1
$23.02¢11 511
1
#32
5XC-23146-10-00
WASHER, OIL SEAL
$11.60¢5 802
1
#33
B29-23145-00-00
Oil Seal
$21.75¢10 873
1
#34
5XE-23153-L0-00
RING, SNAP
$7.04¢3 519
1
#35
B29-4381D-00-00
SCRAPER
$18.14¢9 068
1
#36
5XE-23144-L0-00
SEAL, DUST
$21.11¢10 557
1
#37
2GC-23170-10-00
CYLINDER COMP., FRON
$619.84¢309 919
1
#38
1C3-23147-L0-00
O-RING
$3.51¢1 754
1
#39
17D-23142-00-00
SEAT, SPRING UPPER
$77.73¢38 864
1
#40
2GC-2316A-10-00
VALVE COMP.
$349.98¢174 990
1
#41
1C3-23188-L0-00
O-RING
$3.00¢1 501
1
#42
1C3-23188-N0-00
O-RING
$7.04¢3 519
1
#43
1C3-23188-P0-00
O-RING
$6.51¢3 254
1
#44
1W4-23114-L0-00
GASKET
$8.14¢4 071
1
#45
1C3-23190-L0-00
AIR VALVE COMP.
$21.98¢10 988
1
#46
1C3-23188-R0-00
O-RING
$3.00¢1 501
1
#47
2GB-23141-40-00
SPRING, FRONT FORK
$115.71¢57 857
1
#48
5XC-23111-00-00
BOLT, CAP
$75.81¢37 904
1
#49
2HH-23158-L0-00
GASKET
$10.43¢5 215
1
#50
276-23114-00-00
GASKET
$4.25¢2 128
1
#51
33D-23340-20-00
UNDER BRACKET COMP.
$542.79¢271 394
1
#52
90105-08134-00
BOLT, FLANGE
$6.43¢3 214
1
#53
90105-08154-00
BOLT, FLANGE
$6.32¢3 162
1
#54
2GB-23525-00-00
GUIDE
$25.63¢12 817
1
#55
5TJ-2315J-C0-00
PROTECTOR 2
$15.21¢7 607
1
#56
4XL-2153A-10-00
EMBLEM, YAMAHA
$9.04¢4 520
1
#57
1C3-2315H-10-00
PROTECTOR 1
$18.55¢9 275
1
#58
4XL-2153A-10-00
EMBLEM, YAMAHA
$9.04¢4 520
1
#59
3SP-23356-L0-00
BOLT 2
$5.84¢2 921
1
#60
5XC-23466-L0-00
CLAMP
$5.21¢2 605
1
#61
5XC-23467-L0-00
CLAMP
$11.97¢5 986
1
#62
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#63
B29-W003B-00-00
FORK SEALS KIT
$63.50¢31 751
1
