PARTS OPTION KICK STARTER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

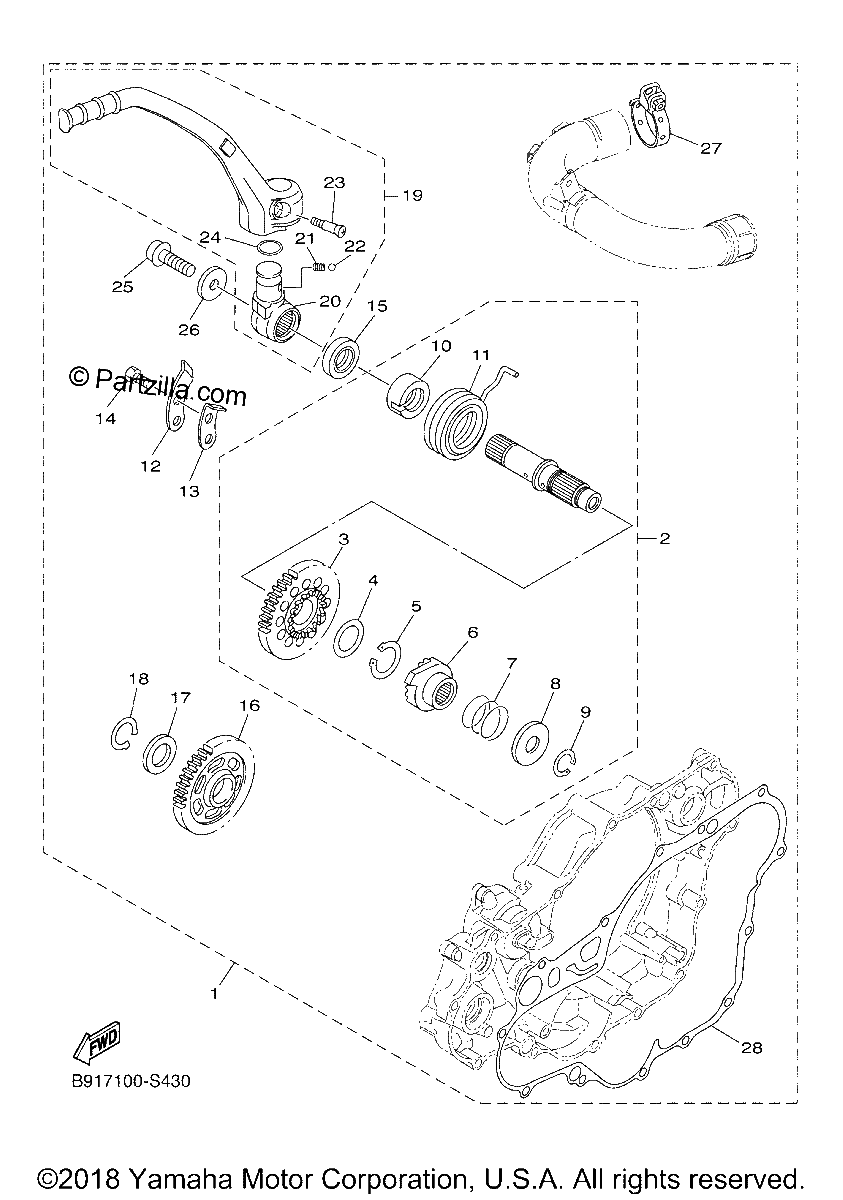

Diagrama de PARTS OPTION KICK STARTER

Repuestos

#1
B91-15602-00-00
KICK STARTER KIT
$629.31¢314 656
1
#2
2S2-15601-00-00
KICK SHAFT ASSY
$327.33¢163 663
1
#3
2S2-15641-00-00
GEAR, KICK
$93.10¢46 550
1
#4
90201-20685-00
WASHER,PLATE
$7.01¢3 506
1
#5
93410-20038-00
CIRCLIP
$3.11¢1 556
1
#6
2S2-15671-00-00
WHEEL, RATCHET
$67.06¢33 531
1
#7
90501-160A2-00
Spring, Compression
$4.40¢2 200
1
#8
90201-167P7-00
WASHER, plate
$10.00¢5 000
1
#9
99009-16400-00
CIRCLIP,S-TYPE
$6.14¢3 069
1
#10
5GR-15664-00-00
Guide, Spring
$21.80¢10 900
1
#11
90508-305B0-00
Spring, Torsion
$14.85¢7 425
1
#12
3Y6-15674-00-00
GUIDE,RATCHET WHL
$13.97¢6 988
1
#13
2NX-15668-00-00
Stopper
$24.94¢12 469
1
#14
97D95-06016-00
BOLT (GA1) (replaces 90101-06044-00)
$2.26¢1 131
1
#15
93102-20108-00
OIL SEAL,SD-TYPE
$10.93¢5 463
1
#16
5TA-15651-00-00
GEAR, KICK IDLE
$150.33¢75 163
1
#17
90201-20685-00
WASHER,PLATE
$7.01¢3 506
1
#18
99009-20400-00
Circlip
$7.34¢3 669
1
#19
1SL-15620-00-00
Kick Crank Assy
$252.25¢126 125
1
#20
1SL-15621-00-00
BOSS, KICK CRANK
$74.47¢37 238
1
#21
90501-147A5-00
Spring, Compression
$7.34¢3 669
1
#22
93507-32031-00
BALL
$4.65¢2 325
1
#23
90151-06045-00
SCREW, COUNTERSUNK
$7.34¢3 669
1
#24
93210-17570-00
O-Ring
$6.99¢3 494
1
#25
90110-08097-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#26
90201-08047-00
WASHER, plate
$5.15¢2 575
1
#27
1SL-14715-00-00
BAND, MUFFLER
$32.95¢16 475
1
#28
1SL-15462-00-00
GASKET, CRANKCASE COVER 3 | INCL. IN BOTTOM END GASKET KIT
$32.63¢16 313
1
