REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

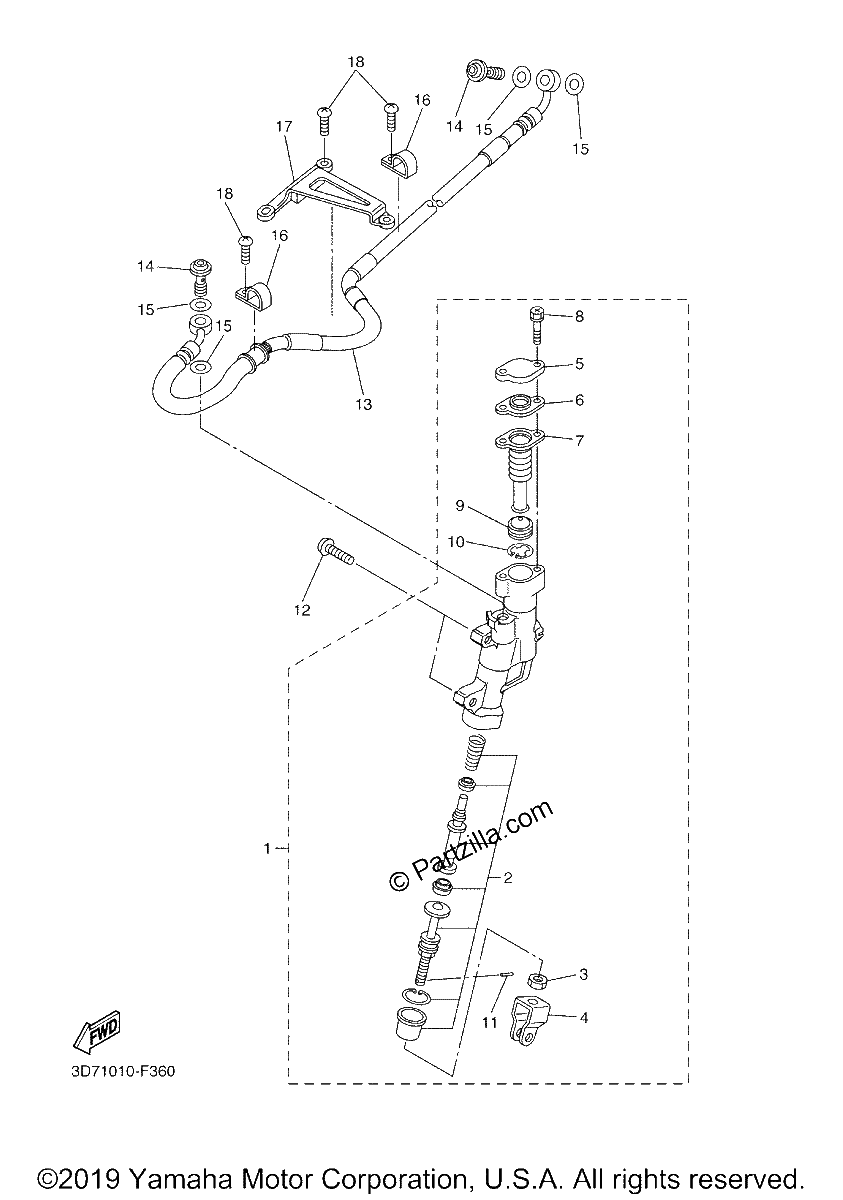

Diagrama de REAR MASTER CYLINDER

Repuestos

#1
3D7-2583V-00-00
REAR MASTER CYLINDER ASSY.
$227.46¢113 729
1
#2
3D7-W0042-00-00
CYLINDER KIT, MASTER
$61.89¢30 946
1
#3
3D7-27218-00-00
NUT
$2.02¢1 012
1
#4
5UN-27222-00-00
JOINT
$16.43¢8 217
1
#5
5UN-25852-50-00
CAP, RESERVOIR
$16.38¢8 188
1
#6
5UN-2585B-00-00
PLATE, DIAPHRAGM
$7.04¢3 519
1
#7
5UN-25854-00-00
DIAPHRAGM, RESERVOIR
$13.48¢6 739
1
#8
5UN-27217-00-00
BOLT
$5.21¢2 605
1
#9
5CG-25715-00-00
SEPARATOR ASSY
$11.59¢5 796
1
#10
5CG-2585G-00-00
CIRCLIP
$5.40¢2 702
1
#11
3KW-27234-00-00
PIN, BRAKE ROD
$7.28¢3 640
1
#12
90111-06059-00
BOLT, HEX. SOCKET BUTTON
$4.28¢2 139
1
#13
3D7-25873-00-00
HOSE, BRAKE 2
$75.66¢37 829
1
#14
90401-10172-00
BOLT, UNION
$4.06¢2 030
1
#15
90430-10005-00
GASKET
$7.72¢3 858
1
#16
3D7-25876-00-00
HOLDER, BRAKE HOSE 2
$4.51¢2 254
1
#17
3D7-25886-00-00
HOLDER, BRAKE HOSE
$9.48¢4 738
1
#18
90159-05053-00
SCREW, WITH WASHER
$1.35¢673
1
