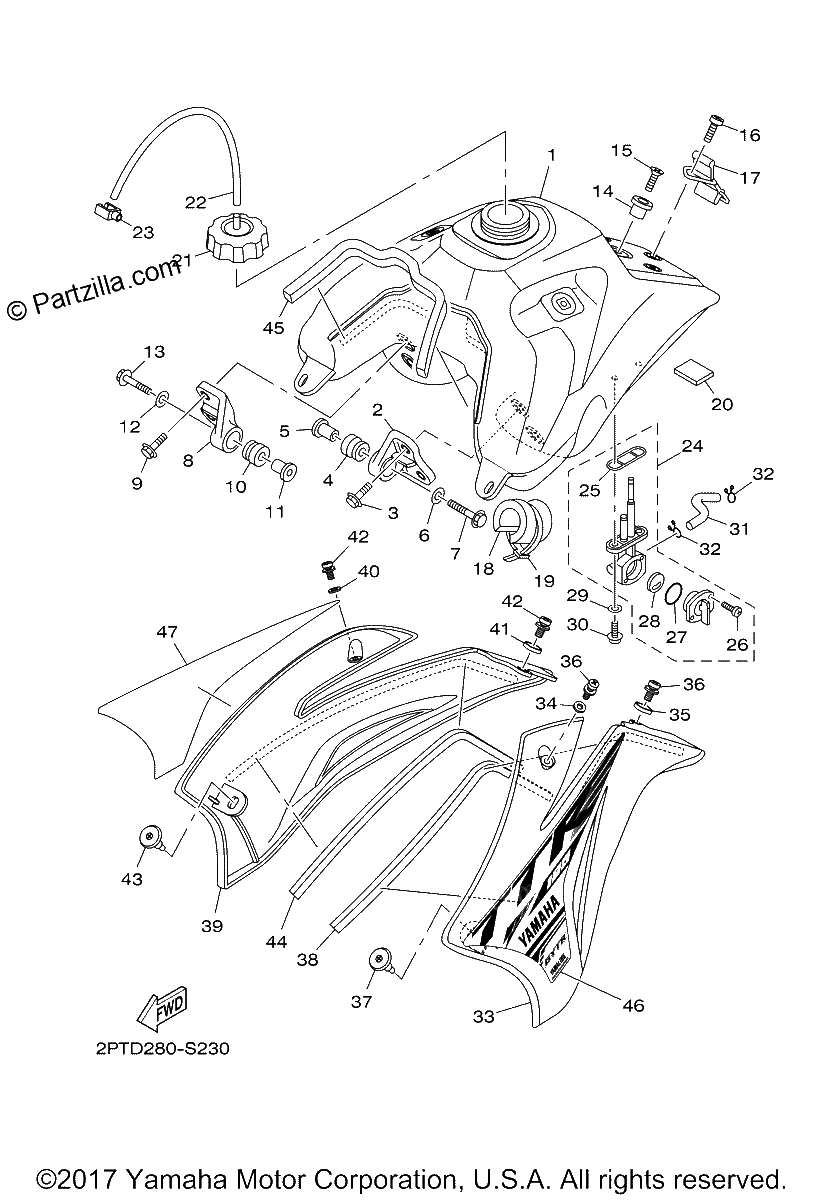

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FUEL TANK COMP. (replaces 1B2-24110-10-00)
$448.10¢224 050
#2
TANK BRACKET ASSY
$12.75¢6 375
#3
BOLT, FLANGE (replaces 95827-06012-00)
$1.79¢894
#4
Grommet
$10.50¢5 250
#5
WASHER,SPECIAL (replaces 1B2-F4186-00-00)
$13.14¢6 569
#6
WASHER, PLATE
$5.30¢2 650
#7
BOLT,FLANGE (replaces 95807-06030-00)
$4.65¢2 325
#8
TANK BRACKET ASSY
$12.75¢6 375
#9
BOLT, FLANGE (replaces 95827-06012-00)
$1.79¢894
#10
Grommet
$10.50¢5 250
#11
WASHER,SPECIAL (replaces 1B2-F4186-00-00)
$13.14¢6 569
#12
WASHER, PLATE
$5.30¢2 650
#13
BOLT,FLANGE (replaces 95807-06030-00)
$4.65¢2 325
#14
BRACKET,SEAT (replaces 1B2-F412F-00-00)
$15.13¢7 563
#15
Screw, Flat Head
$7.95¢3 975
#16
BOLT,SOCKET (replaces 9890M-06016-00)
$8.49¢4 244
#17
BAND,TANK FITTING (replaces 1B2-F4173-00-00)
$22.03¢11 013
#18
DAMPER, side cover
$1.44¢719
#19
CLAMP
$1.06¢531
#20
DAMPER 1
$0.34¢169
#21
CAP ASSY (replaces 2FJ-24610-10-00)
$73.65¢36 825
#22
Pipe, Breather
$11.29¢5 644
#23
Clamp
$7.75¢3 875
#24
FUEL COCK ASSY 1
$40.65¢20 325
#25
GASKET
$13.06¢6 531
#26
SCREW, PAN HEAD
$3.26¢1 631
#27
SEAL, COCK
$8.43¢4 213
#28
VALVE PACKING
$13.81¢6 906
#29
WASHER, PLATE
$1.57¢788
#30
SCREW,SPEC'L SHAPE
$1.95¢975
#31
HOSE
$4.49¢2 244
#32
Clip
$2.97¢1 487
#33
SCOOP, AIR 1
$97.40¢48 700
#34
COLLAR (replaces 90387-10W66-00)
$10.22¢5 113
#35
Collar
$0.61¢306
#36
SCREW, WITH WASHER
$7.63¢3 813
#37
RIVET,SPEC'L SHAPE
$7.13¢3 563
#38
DAMPER, PLATE 2 (replaces 1B2-F414J-00-00)
$11.69¢5 844
#39
SCOOP, AIR 2
$97.40¢48 700
#40
COLLAR (replaces 90387-10W66-00)
$10.22¢5 113
#41
Collar
$0.61¢306
#42
SCREW, WITH WASHER
$7.63¢3 813
#43
RIVET,SPEC'L SHAPE
$7.13¢3 563
#44
DAMPER, PLATE 2 (replaces 1B2-F414J-00-00)
$11.69¢5 844
#45
DAMPER, PLATE 2 (replaces 1B2-F414J-00-00)
$11.69¢5 844
#46
GRAPHIC 1
$51.14¢25 569
#47
GRAPHIC 2
$51.14¢25 569
