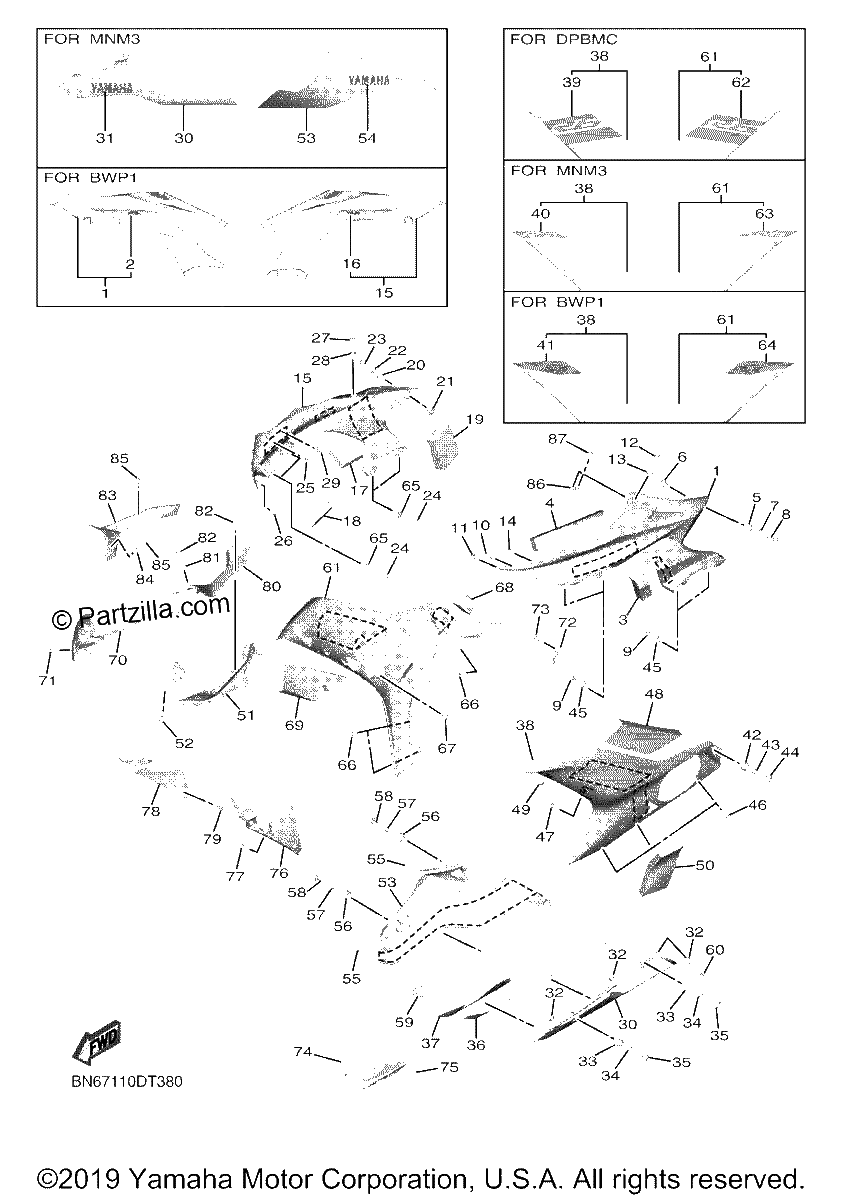

COWLING 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
COVER 7
$344.36¢172 178
#1
COVER 7
$346.02¢173 012
#1
COVER ASSY 7
$367.67¢183 833
#2
GRAPHIC 5
$23.48¢11 742
#3
DAMPER, PLATE
$1.77¢886
#4
SEAL 12
$2.68¢1 340
#5
Grommet
$22.05¢11 023
#6
COLLAR
$5.69¢2 846
#7
WASHER, PLATE
$7.77¢3 887
#8
BOLT,HEX. SOCKET BUT
$6.88¢3 439
#9
BOLT,HEX. SOCKET BUT
$6.88¢3 439
#10
NUT, SPRING
$4.58¢2 289
#11
Clamp
$0.67¢333
#12
SCREW,SPEC'L SHAPE
$4.67¢2 335
#13
WASHER, PLATE
$3.73¢1 863
#14
Clip
$0.99¢494
#15
COVER 8
$289.73¢144 866
#15
COVER 8
$346.02¢173 012
#15
COVER ASSY 8
$367.67¢183 833
#16
GRAPHIC 6
$30.11¢15 053
#17
DAMPER, PLATE
$1.77¢886
#18
DAMPER, PLATE
$1.68¢839
#19
SEAL 26
$2.68¢1 340
#20
Grommet
$22.05¢11 023
#21
COLLAR
$5.69¢2 846
#22
WASHER, PLATE
$7.77¢3 887
#23
BOLT,HEX. SOCKET BUT
$6.88¢3 439
#24
BOLT,HEX. SOCKET BUT
$6.88¢3 439
#25
NUT, SPRING
$4.58¢2 289
#26
Clamp
$0.67¢333
#27
SCREW,SPEC'L SHAPE
$4.67¢2 335
#28
WASHER, PLATE
$3.73¢1 863
#29
Clip
$0.99¢494
#30
COVER, UNDER
$140.07¢70 035
#30
COVER, UNDER
$136.57¢68 287
#30
COVER, UNDER
$155.31¢77 654
#31
EMBLEM, YAMAHA
$20.19¢10 097
#32
NUT, SPRING
$2.60¢1 299
#33
GROMMET
$6.83¢3 415
#34
COLLAR
$6.83¢3 415
#35
bolt
$3.68¢1 840
#36
SEAT 1
$32.37¢16 186
#37
DAMPER, locating 1
$6.11¢3 053
#38
PANEL ASSY 1
$299.30¢149 650
#38
PANEL ASSY 1
$279.73¢139 863
#38
PANEL ASSY 1
$297.72¢148 862
#39
GRAPHIC 1
$53.70¢26 853
#40
GRAPHIC 1
$18.92¢9 459
#41
GRAPHIC 1
$31.31¢15 657
#42
GROMMET
$6.83¢3 415
#43
COLLAR
$6.83¢3 415
#44
bolt
$3.68¢1 840
#45
NUT, SPRING
$2.60¢1 299
#46
BOLT,HEX. SOCKET BUT
$6.88¢3 439
#47
RIVET
$5.93¢2 967
#48
DAMPER 2
$6.55¢3 278
#49
DAMPER
$6.99¢3 496
#50
DAMPER, PLATE
$3.99¢1 995
#51
COVER 1
$32.18¢16 089
#52
BOLT,HEX. SOCKET BUT
$6.88¢3 439
#53
COVER, UNDER 2
$138.54¢69 270
#53
COVER, UNDER 2
$142.12¢71 059
#53
COVER, UNDER 2
$128.80¢64 400
#54
EMBLEM, YAMAHA
$20.19¢10 097
#55
NUT, SPRING
$2.60¢1 299
#56
GROMMET
$6.83¢3 415
#57
COLLAR
$6.83¢3 415
#58
bolt
$3.68¢1 840
#59
SEAT 2
$28.04¢14 018
#60
BOLT,HEX. SOCKET BUT
$6.88¢3 439
#61
PANEL ASSY 2
$230.56¢115 282
#61
PANEL ASSY 2
$299.71¢149 856
#61
PANEL ASSY 2
$332.95¢166 474
#62
GRAPHIC 2
$53.70¢26 853
#63
GRAPHIC 2
$18.92¢9 459
#64
GRAPHIC 2
$42.18¢21 091
#65
NUT, SPRING
$2.60¢1 299
#66
BOLT,HEX. SOCKET BUT
$6.88¢3 439
#67
RIVET
$5.93¢2 967
#68
DAMPER, PLATE
$1.23¢615
#69
DAMPER 4
$7.04¢3 519
#70
COVER 2
$32.18¢16 089
#71
BOLT,HEX. SOCKET BUT
$6.88¢3 439
#72
BRACKET 4
$5.13¢2 565
#73
BOLT, FLANGE (replaces 95802-06014-00)
$2.44¢1 219
#74
PANEL, INNER 1
$86.12¢43 062
#75
NUT, SPRING
$2.60¢1 299
#76
PANEL, INNER 2
$55.67¢27 836
#77
RIVET
$8.10¢4 048
#78
PANEL, INNER 3
$65.25¢32 625
#79
RIVET
$8.10¢4 048
#80
PANEL, console 1
$17.72¢8 861
#81
DAMPER
$5.93¢2 967
#82
RIVET
$8.10¢4 048
#83
PANEL, CONSOLE 2
$17.76¢8 878
#84
DAMPER
$5.93¢2 967
#85
RIVET
$8.10¢4 048
#86
STAY 2
$7.91¢3 956
#87
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
