CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

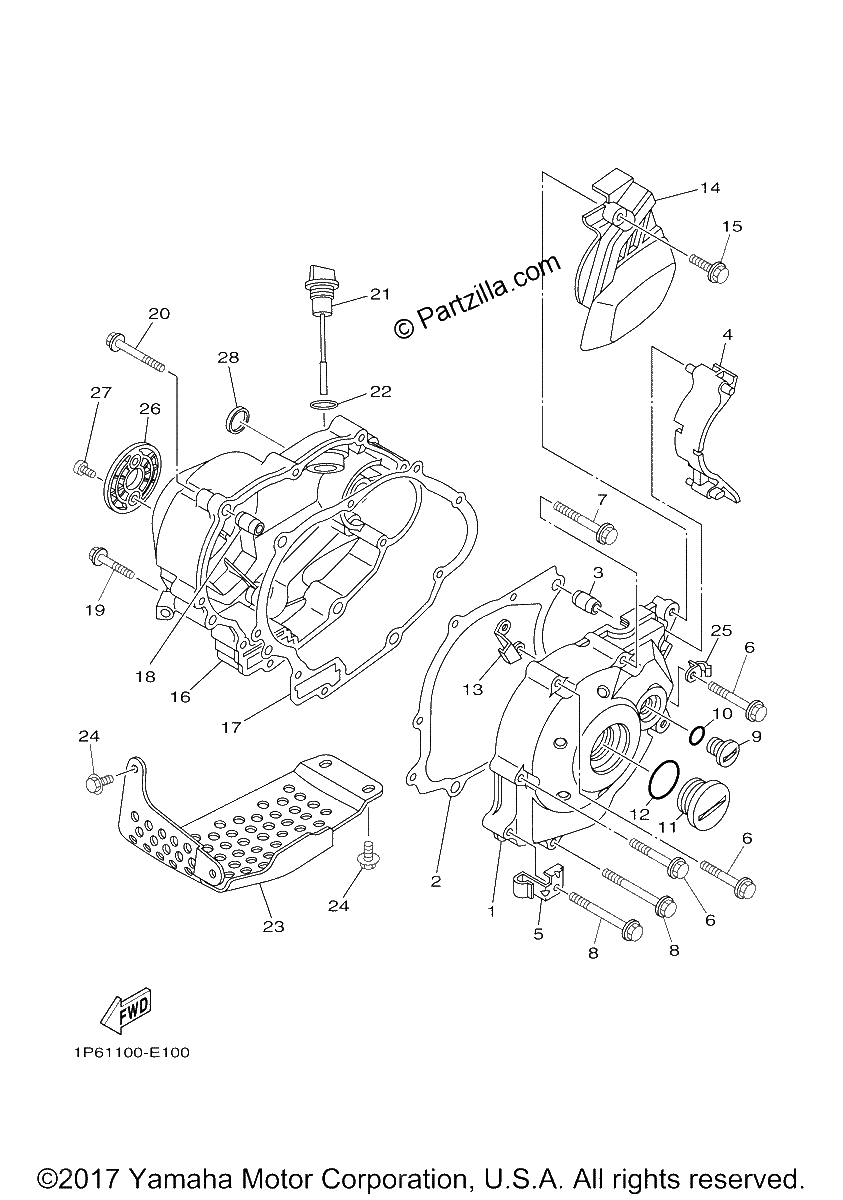

Diagrama de CRANKCASE COVER 1

Repuestos

#1
1P6-E5411-20-00
COVER, CRANKCASE 1
$359.19¢179 594
1
#2
1P6-E5451-00-00
GASKET, CRANKCASE COVER 1
$24.49¢12 244
1
#3
99530-10114-00
PIN,DOWEL
$2.71¢1 356
1
#4
1P6-E7466-00-00
GUIDE, CHAIN
$128.19¢64 094
1
#5
1P6-E5484-01-00
CLAMP 2
$9.07¢4 538
1
#6
95027-06040-00
BOLT, FLANGE
$2.95¢1 475
1
#7
95027-06050-00
BOLT, FLANGE
$2.15¢1 075
1
#8
90105-065A1-00
BOLT, FLANGE
$3.36¢1 681
1
#9
2CJ-E5167-00-00
PLUG, BLIND 1
$15.63¢7 813
1
#10
93210-14369-00
O-Ring
$6.91¢3 456
1
#11
2CJ-E5168-00-00
PLUG, BLIND 2
$20.36¢10 181
1
#12
93210-32172-00
O-Ring
$6.88¢3 438
1
#13
1P6-E5113-00-00
PLATE
$2.31¢1 156
1
#14
1P6-E5418-00-00
COVER, CHAIN CASE
$43.10¢21 550
1
#15
95022-06025-00
BOLT, FLANGE
$1.75¢875
1
#16
1P6-E5421-20-00
COVER, CRANKCASE 2
$144.77¢72 387
1
#17
1P6-E5461-00-00
GASKET, CRANKCASE COVER 2
$22.05¢11 025
1
#18
99530-10114-00
PIN,DOWEL
$2.71¢1 356
1
#19
95027-06040-00
BOLT, FLANGE
$2.95¢1 475
1
#20
95027-06050-00
BOLT, FLANGE
$2.15¢1 075
1
#21
1P6-E5362-00-00
PLUG, OIL LEVEL
$25.29¢12 644
1
#22
93210-19123-00
O-Ring
$8.24¢4 119
1
#23
1P6-E5436-01-00
COVER, STARTING MOTOR
$70.08¢35 038
1
#24
95814-08016-00
BOLT,FLANGE (replaces 95802-08016-00)
$7.94¢3 969
1
#25
90465-08803-00
CLAMP
$6.51¢3 256
1
#26
1P6-E5431-00-00
COVER, CRANKCASE 3
$37.43¢18 713
1
#27
98507-05008-00
SCREW,PANHEAD(JN2
$2.34¢1 169
1
#28
90338-26802-00
PLUG
$9.93¢4 963
1
