FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

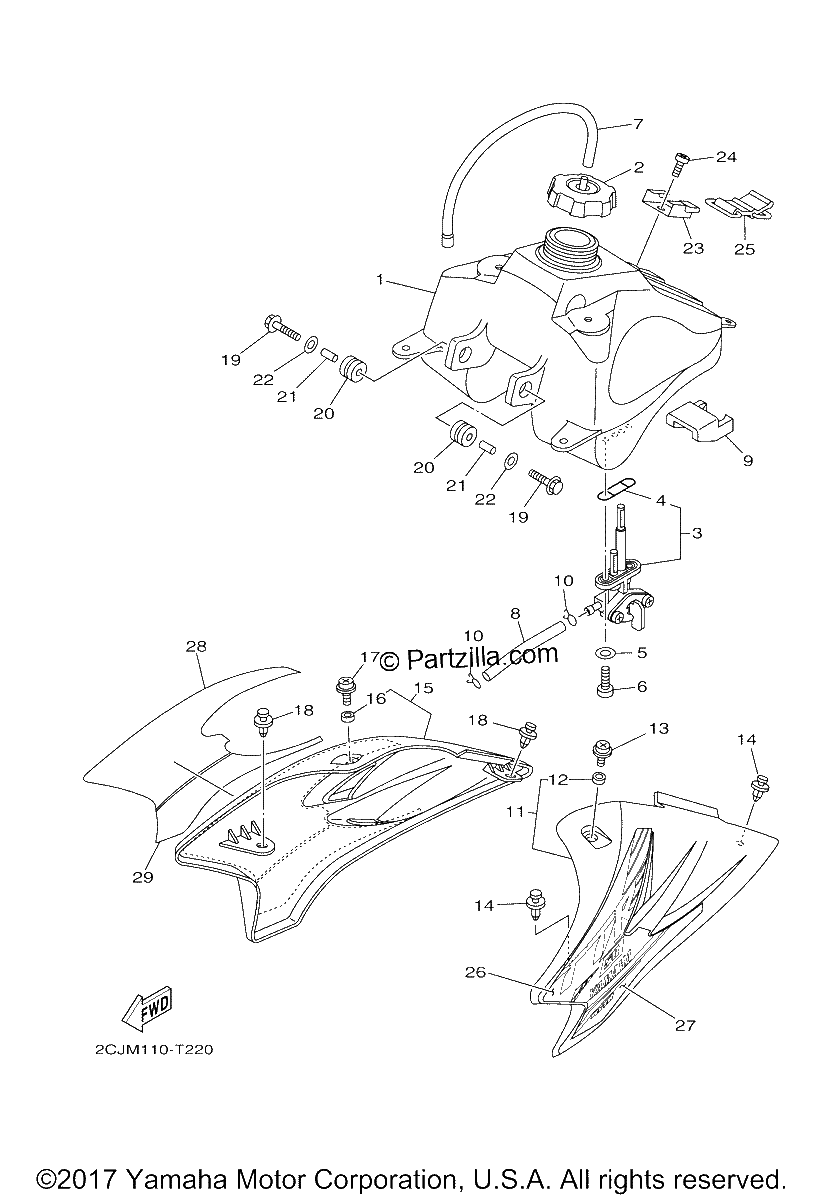

Diagrama de FUEL TANK

Repuestos

#1
1P6-24110-10-00
FUEL TANK COMP.
$348.52¢174 263
1
#2
2FJ-24610-20-00
CAP ASSY (replaces 2FJ-24610-10-00)
$73.65¢36 825
1
#3
1P6-24500-10-00
FUEL COCK ASSY 1
$146.66¢73 331
1
#4
1P6-24512-10-00
O-Ring
$17.31¢8 656
1
#5
90202-05187-00
WASHER, PLATE
$1.57¢788
1
#6
90149-06011-00
SCREW,SPEC'L SHAPE
$1.95¢975
1
#7
1P6-F1826-10-00
Pipe, Breather
$18.56¢9 281
1
#8
1P6-24311-00-00
PIPE, FUEL 1
$22.03¢11 013
1
#9
1P6-F4181-00-00
DAMPER, locating 1
$18.85¢9 425
1
#10
90467-090A2-00
Clip
$2.97¢1 487
1
#11
1P6-F137A-00-00
SCOOP AIR ASSY. 1
$90.21¢45 106
1
#12
90387-07805-00
Collar
$12.29¢6 144
1
#13
90159-06182-00
SCREW, WITH WASHER
$7.63¢3 813
1
#14
90269-07076-00
RIVET,SPEC'L SHAPE
$7.13¢3 563
1
#15
1P6-F137B-00-00
SCOOP AIR ASSY. 2
$80.38¢40 188
1
#16
90387-07805-00
Collar
$12.29¢6 144
1
#17
90159-06182-00
SCREW, WITH WASHER
$7.63¢3 813
1
#18
90269-07076-00
RIVET,SPEC'L SHAPE
$7.13¢3 563
1
#19
95817-06030-00
BOLT,FLANGE (replaces 95807-06030-00)
$4.65¢2 325
1
#20
90480-18803-00
Grommet
$6.15¢3 075
1
#21
90387-07804-00
Collar
$12.75¢6 375
1
#22
90201-06072-00
WASHER, PLATE
$7.63¢3 813
1
#23
1P6-F4116-01-00
STAY, FUEL TANK 2
$14.59¢7 294
1
#24
98980-06010-00
SCREW,BIND (replaces 98902-06010-00)
$6.99¢3 494
1
#25
1P6-F4173-00-00
BAND, TANK FITTING 1
$13.65¢6 825
1
#26
1P6-F4244-D0-00
GRAPHIC
$15.45¢7 725
1
#27
1P6-F4245-D0-00
GRAPHIC
$9.16¢4 581
1
#28
1P6-F4246-D0-00
GRAPHIC
$15.63¢7 813
1
#29
1P6-F4247-D0-00
GRAPHIC
$9.01¢4 506
1
