FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

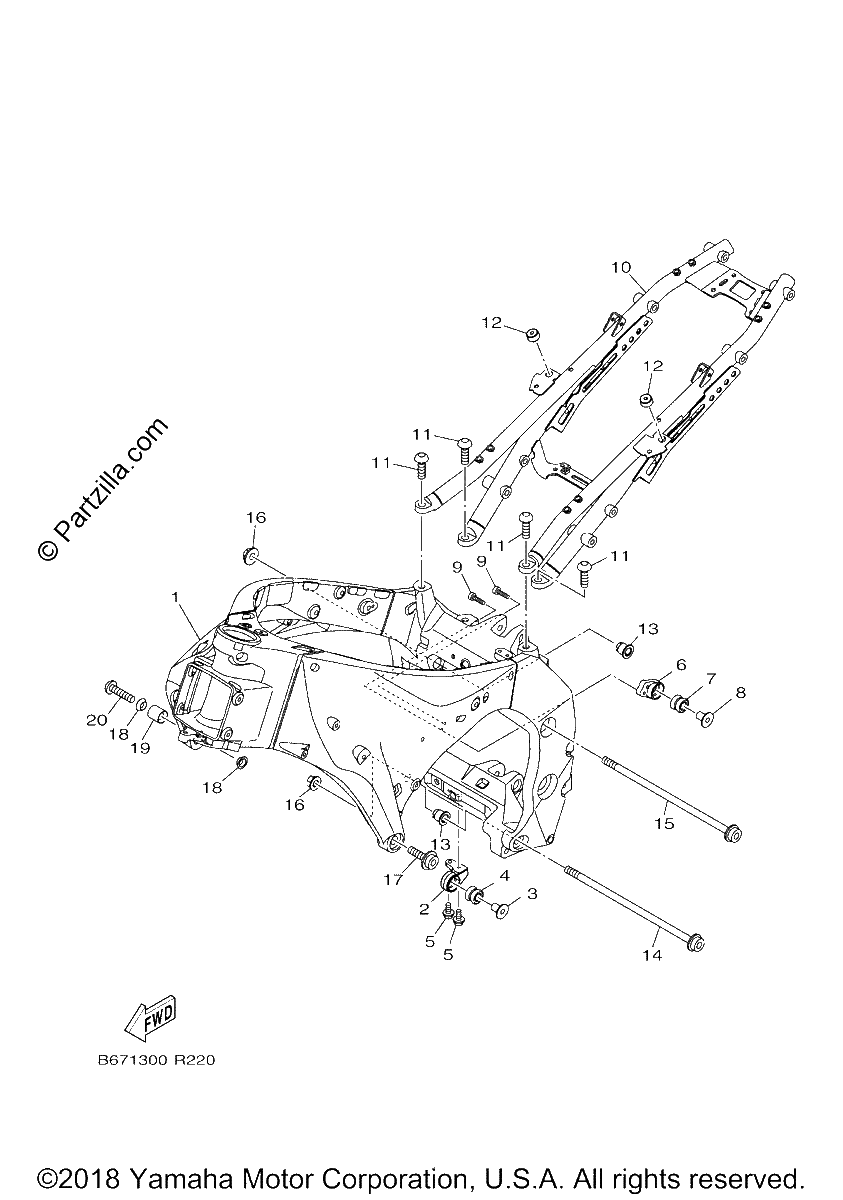

Diagrama de FRAME

Repuestos

#1
B67-21110-00-00
FRAME COMP.
$3385.59¢1 692 794
1
#2
B67-21435-00-00
BRACKET, MUFFLER 1
$54.80¢27 399
1
#3
90387-08021-00
COLLAR
$9.33¢4 663
1
#4
5VY-14747-00-00
DAMPER, MUFFLER
$13.48¢6 739
1
#5
90110-06248-00
BOLT, HEXAGON SOCKET HEAD
$3.40¢1 702
1
#6
2CR-21436-00-00
BRACKET, MUFFLER 2
$21.18¢10 592
1
#7
5VY-14747-00-00
DAMPER, MUFFLER
$13.48¢6 739
1
#8
90387-08021-00
COLLAR
$9.33¢4 663
1
#9
91312-06016-00
BOLT
$5.37¢2 685
1
#10
B67-21190-00-00
REAR FRAME COMP.
$772.39¢386 193
1
#11
90149-10064-00
SCREW
$4.00¢2 001
1
#12
157-27114-00-00
STOPPER, MAIN STAND
$9.49¢4 744
1
#13
5YU-21495-00-00
BOLT, ENGINE ADJUSTING
$16.53¢8 263
1
#14
90110-12010-00
BOLT, HEXAGON SOCKET HEAD
$31.38¢15 692
1
#15
90110-12008-00
BOLT, HEXAGON SOCKET HEAD
$27.47¢13 737
1
#16
90179-12004-00
NUT
$5.73¢2 864
1
#17
90110-12007-00
BOLT, HEXAGON SOCKET HEAD
$6.30¢3 151
1
#18
14B-21414-00-00
BOSS, ENGINE MOUNT
$21.22¢10 609
1
#19
14B-21424-00-00
BOSS, ENGINE MOUNT
$30.30¢15 151
1
#20
90111-12003-00
BOLT, HEX. SOCKET BUTTON
$6.32¢3 162
1
