FUEL TANK 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

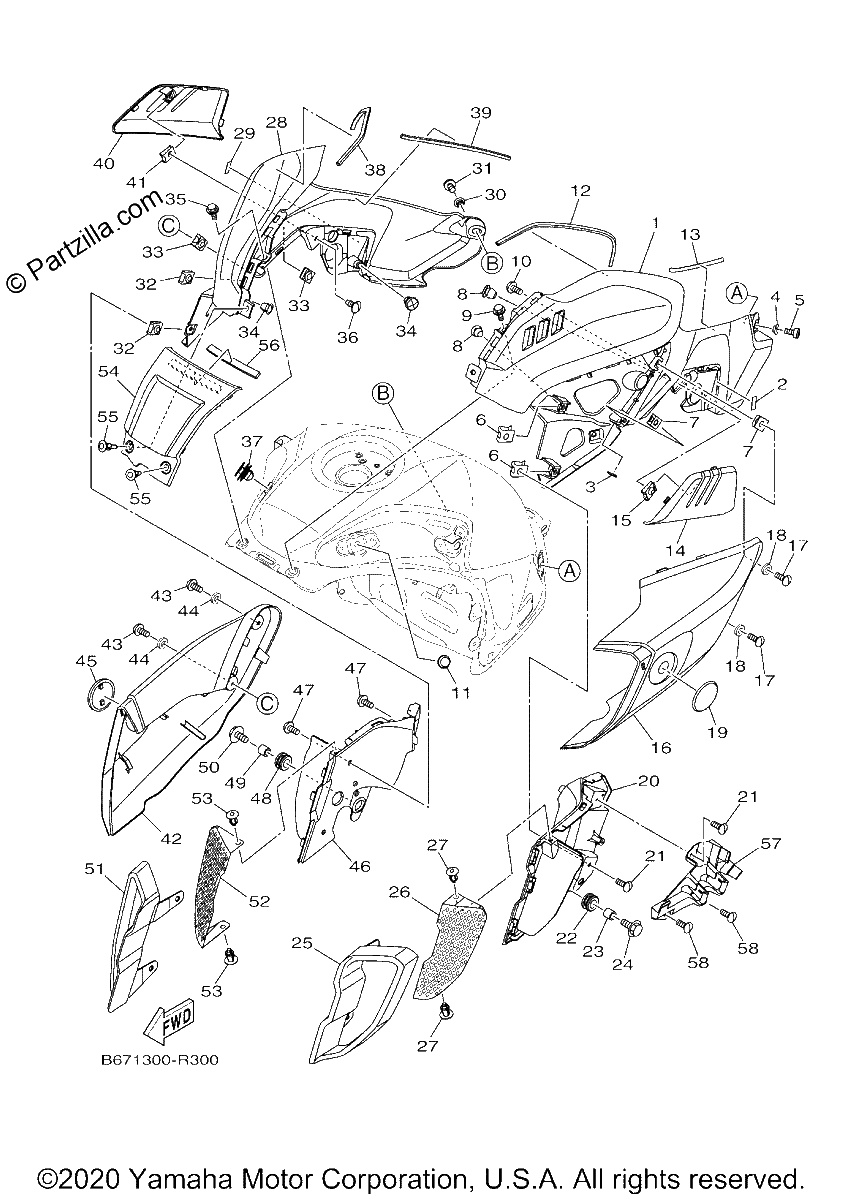

Diagrama de FUEL TANK 2

Repuestos

#0
B67-27475-00-33
CAP 1
$82.61¢41 306
1
#1
B67-24129-00-P4
COVER, SIDE 1
$201.63¢100 813
1
#1
B67-24129-00-P1
COVER, SIDE 1
$201.63¢100 813
1
#2
1S4-2476U-00-00
PROTECTOR 1
$2.97¢1 487
1
#3
90520-01001-00
DAMPER, PLATE
$7.71¢3 856
1
#4
90387-05035-00
COLLAR
$5.99¢2 994
1
#5
98902-05008-00
SCREW, BIND
$1.46¢731
1
#6
90183-05042-00
NUT, SPRING
$1.25¢625
1
#7
90183-050A6-00
NUT, SPRING
$2.82¢1 412
1
#8
90338-07180-00
PLUG
$6.76¢3 381
1
#9
90110-05014-00
BOLT, HEXAGON SOCKET HEAD
$6.35¢3 175
1
#10
97707-50012-00
SCREW, TRUSS HEAD TAPPING
$3.85¢1 925
1
#11
90269-09006-00
RIVET
$1.79¢894
1
#12
4C8-21746-00-00
Damper
$1.95¢975
1
#13
5YU-2177N-00-00
DAMPER, LOCATING 4
$1.34¢669
1
#14
B67-28345-00-00
MOLE 1
$12.79¢6 394
1
#15
90183-05042-00
NUT, SPRING
$1.25¢625
1
#16
B67-2137W-00-P1
SCOOP, AIR 1
$243.39¢121 694
1
#17
90111-05021-00
BOLT,HEX. SOCKET BUT
$5.91¢2 956
1
#18
90202-05180-00
WASHER, PLATE
$7.66¢3 831
1
#19
1RC-2413B-01-00
EMBLEM (replaces 1RC-2413B-00-00)
$23.89¢11 944
1
#20
B67-2172E-00-P1
STAY, SIDE COVER 1
$91.11¢45 556
1
#21
97707-50014-00
SCREW, TRUSS HEAD TAPPING
$7.35¢3 675
1
#22
90480-14003-00
GROMMET
$7.43¢3 713
1
#23
90387-06260-00
COLLAR
$7.43¢3 713
1
#24
95817-06016-00
BOLT, FLANGE
$1.79¢894
1
#25
B67-27475-00-P2
CAP 1
$95.17¢47 588
1
#26
B67-2837N-00-00
GRILL, AIR INTAKE 1
$45.80¢22 900
1
#27
90269-06019-00
RIVET
$3.46¢1 731
1
#28
B67-24139-00-P4
COVER, SIDE 2
$157.01¢78 506
1
#28
B67-24139-00-P1
COVER, SIDE 2
$201.63¢100 813
1
#29
1S4-2476U-00-00
PROTECTOR 1
$2.97¢1 487
1
#30
90387-05035-00
COLLAR
$5.99¢2 994
1
#31
98902-05008-00
SCREW, BIND
$1.46¢731
1
#32
90183-05042-00
NUT, SPRING
$1.25¢625
1
#33
90183-050A6-00
NUT, SPRING
$2.82¢1 412
1
#34
90338-07180-00
PLUG
$6.76¢3 381
1
#35
90110-05014-00
BOLT, HEXAGON SOCKET HEAD
$6.35¢3 175
1
#36
97707-50012-00
SCREW, TRUSS HEAD TAPPING
$3.85¢1 925
1
#37
90269-09006-00
RIVET
$1.79¢894
1
#38
4C8-21746-00-00
Damper
$1.95¢975
1
#39
5YU-2177N-00-00
DAMPER, LOCATING 4
$1.34¢669
1
#40
B67-28346-00-00
MOLE 2
$16.90¢8 450
1
#41
90183-05042-00
NUT, SPRING
$1.25¢625
1
#42
B67-2137X-00-P1
SCOOP, AIR 2
$243.39¢121 694
1
#43
90111-05021-00
BOLT,HEX. SOCKET BUT
$5.91¢2 956
1
#44
90202-05180-00
WASHER, PLATE
$7.66¢3 831
1
#45
1RC-2413B-01-00
EMBLEM (replaces 1RC-2413B-00-00)
$23.89¢11 944
1
#46
B67-2174E-00-P1
STAY, SIDE COVER 2
$113.22¢56 613
1
#47
97707-50014-00
SCREW, TRUSS HEAD TAPPING
$7.35¢3 675
1
#48
90480-14003-00
GROMMET
$7.43¢3 713
1
#49
90387-06260-00
COLLAR
$7.43¢3 713
1
#50
95817-06016-00
BOLT, FLANGE
$1.79¢894
1
#51
B67-27476-00-33
CAP 2
$95.36¢47 681
1
#51
B67-27476-00-P2
CAP 2
$87.94¢43 969
1
#52
B67-2837R-00-00
GRILL, AIR INTAKE 2
$44.74¢22 369
1
#53
90269-06019-00
RIVET
$3.46¢1 731
1
#54
B67-241B1-00-P4
COVER, TANK
$150.76¢75 381
1
#54
B67-241B1-00-P1
COVER, TANK
$123.50¢61 750
1
#55
90269-06008-00
RIVET
$8.80¢4 400
1
#56
4B5-2174X-00-00
Damper
$7.86¢3 931
1
#57
B67-2172M-00-00
BRACKET 3
$15.51¢7 756
1
#58
97707-50014-00
SCREW, TRUSS HEAD TAPPING
$7.35¢3 675
1
