CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

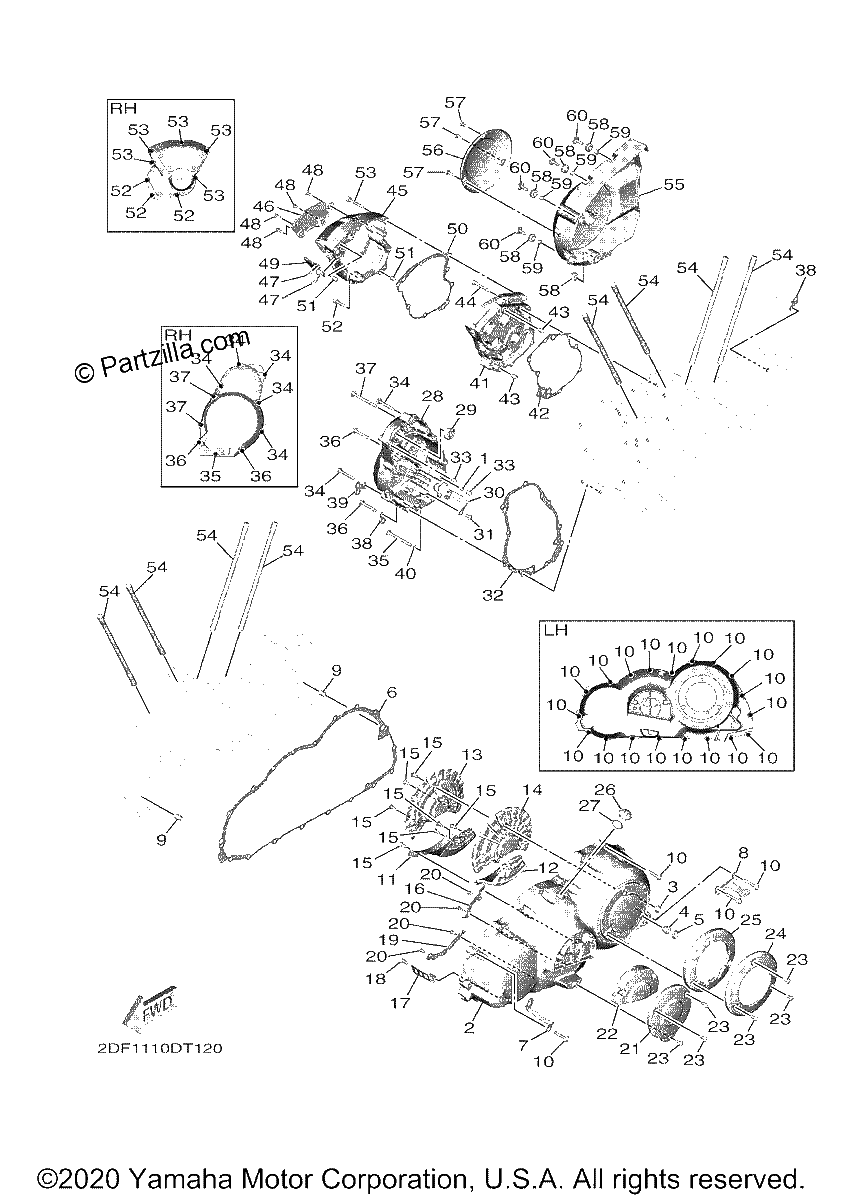

Diagrama de CRANKCASE COVER 1

Repuestos

#1
2DF-15148-00-00
NOZZLE 2
$4.00¢2 001
1
#2
2DF-15411-00-00
COVER, CRANKCASE 1
$216.41¢108 203
1
#3
93102-10008-00
Oil Seal
$5.09¢2 547
1
#4
93317-11295-00
BEARING
$43.91¢21 954
1
#5
93102-12224-00
OIL SEAL
$9.14¢4 571
1
#6
2DF-15451-00-00
GASKET, CRANKCASE COVER 1
$20.15¢10 074
1
#7
2DF-1546D-00-00
HOLDER, 2
$9.30¢4 652
1
#8
2DF-15759-00-00
CLIP, GUIDE
$6.50¢3 249
1
#9
99530-10114-00
PIN,DOWEL
$2.50¢1 248
1
#10
90110-06403-00
BOLT, HEXAGON SOCKET HEAD
$2.33¢1 167
1
#11
2DF-15113-00-00
PLATE
$35.95¢17 975
1
#12
2DF-1542B-00-00
DAMPER 2
$22.23¢11 115
1
#13
2DF-15589-00-00
PLATE
$33.33¢16 664
1
#14
2DF-1542A-00-00
DAMPER 1
$31.96¢15 979
1
#15
90149-06156-00
SCREW
$6.96¢3 479
1
#16
2DF-15142-00-00
GUIDE 1
$6.22¢3 111
1
#17
2DF-15484-00-00
CLAMP 2
$4.97¢2 484
1
#18
90149-06068-00
SCREW
$3.67¢1 834
1
#19
2DF-15143-00-00
Guide
$6.57¢3 283
1
#20
90149-05030-00
SCREW
$2.33¢1 167
1
#21
2DF-15425-00-00
COVER, GENERATOR 2
$81.02¢40 509
1
#22
2DF-15316-00-00
DAMPER 1
$22.69¢11 345
1
#23
90149-06191-00
Screw
$0.71¢357
1
#24
2DF-15415-00-00
COVER, 1
$67.21¢33 603
1
#25
2DF-1542C-00-00
DAMPER 3
$15.12¢7 561
1
#26
5PX-15189-00-00
PLUG
$28.37¢14 185
1
#27
93210-20003-00
O-RING
$6.88¢3 439
1
#28
2DF-15421-00-00
COVER, CRANKCASE 2
$94.09¢47 046
1
#29
93306-00004-00
BEARING
$35.85¢17 923
1
#30
2DF-15377-00-00
GUIDE, INLET
$7.95¢3 973
1
#31
90149-06156-00
SCREW
$6.96¢3 479
1
#32
2DF-15461-00-00
GASKET, CRANKCASE COVER 2
$3.71¢1 857
1
#33
99530-08012-00
PIN, DOWEL
$5.75¢2 875
1
#34
90110-06418-00
BOLT, HEXAGON SOCKET HEAD
$1.55¢776
1
#35
90110-06420-00
BOLT, HEXAGON SOCKET HEAD
$2.54¢1 271
1
#36
90110-06417-00
BOLT, HEXAGON SOCKET HEAD
$1.55¢776
1
#37
90110-06419-00
BOLT, HEXAGON SOCKET HEAD
$2.54¢1 271
1
#38
2DF-15144-00-00
Plate, Lock
$2.97¢1 483
1
#39
2DF-1546C-00-00
HOLDER
$4.37¢2 185
1
#40
90430-06014-00
GASKET
$7.59¢3 795
1
#41
2DF-15430-00-00
CRANKCASE COVER ASSY 3
$106.89¢53 446
1
#42
2DF-15462-00-00
GASKET, CRANKCASE COVER 3
$5.21¢2 605
1
#43
99530-08012-00
PIN, DOWEL
$5.75¢2 875
1
#44
90110-06423-00
BOLT, HEXAGON SOCKET HEAD
$2.54¢1 271
1
#45
2DF-15429-00-00
Cover, Shifter
$98.30¢49 151
1
#46
2DF-15427-00-00
COVER, CAP 2
$69.82¢34 908
1
#47
90111-05053-00
BOLT,HEX. SOCKET BUTTON (replaces 90111-05052-00)
$0.69¢345
1
#48
90111-05053-00
BOLT,HEX. SOCKET BUTTON (replaces 90111-05052-00)
$0.69¢345
1
#49
2DF-15499-00-00
PROTECTOR, COVER
$16.23¢8 113
1
#50
2DF-12286-00-00
GASKET, DECOMPRESSION
$4.00¢2 001
1
#51
99530-08012-00
PIN, DOWEL
$5.75¢2 875
1
#52
90110-06413-00
BOLT, HEXAGON SOCKET HEAD
$0.76¢380
1
#53
90110-06423-00
BOLT, HEXAGON SOCKET HEAD
$2.54¢1 271
1
#54
90116-12020-00
BOLT, stud
$16.85¢8 424
1
#55
2DF-15426-01-00
COVER, OIL PUMP 2
$57.20¢28 601
1
#56
2DF-15779-00-00
Cover
$69.91¢34 954
1
#57
90169-05003-00
TAPPING SCREW
$2.30¢1 150
1
#58
90480-13018-00
GROMMET
$6.83¢3 415
1
#59
90387-0611W-00
COLLAR
$3.48¢1 742
1
#60
90111-06130-00
BOLT, HEX. SOCKET BUTTON
$4.13¢2 064
1
