STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

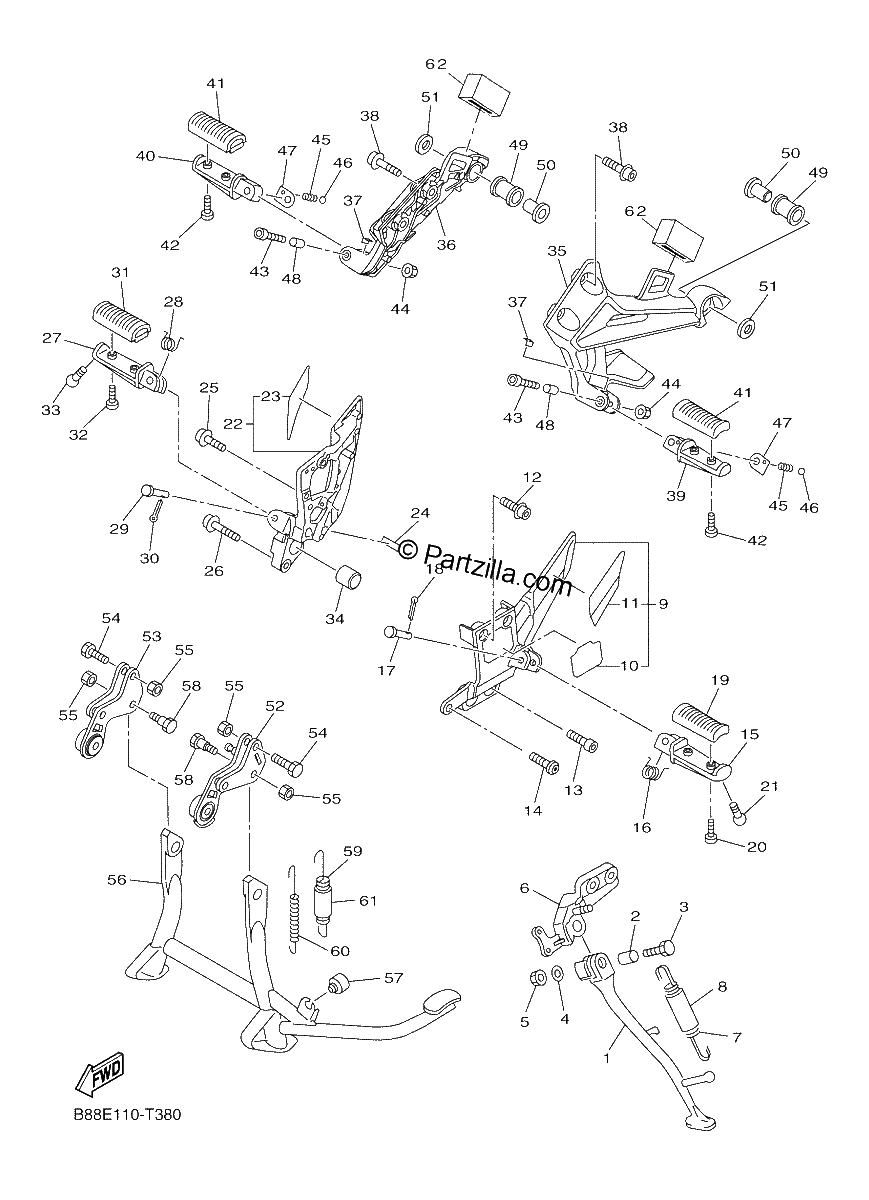

Diagrama de STAND FOOTREST

Repuestos

#1
5JW-27311-00-00
STAND, SIDE
$223.43¢111 713
1
#2
90387-10007-00
COLLAR
$14.24¢7 119
1
#3
90101-10025-00
bolt
$9.24¢4 619
1
#4
92902-10200-00
WASHER
$3.41¢1 706
1
#5
95602-10100-00
NUT, U
$7.06¢3 531
1
#6
5JW-27321-00-00
BRACKET, SIDE STAND
$281.77¢140 888
1
#7
90506-20008-00
SPRING, TENSION
$11.35¢5 675
1
#8
90445-197J2-00
HOSE (L60)
$4.68¢2 338
1
#9
B88-2740A-00-00
BRACKET SUB ASSY (LE
$162.21¢81 106
1
#10
B88-27498-00-00
. SEAT 1
$5.40¢2 700
1
#11
B88-27499-00-00
. SEAT 2
$14.81¢7 406
1
#12
90110-08087-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#13
90109-10031-00
BOLT
$7.52¢3 762
1
#14
90149-10012-00
SCREW
$8.18¢4 088
1
#15
4BH-27451-01-00
FOOTREST
$60.51¢30 256
1
#16
90508-183B9-00
SPRING, TORSION
$3.30¢1 650
1
#17
91701-08042-00
PIN
$3.69¢1 844
1
#18
91401-25015-00
PIN, COTTER
$3.61¢1 806
1
#19
4BP-27413-00-00
COVER, FOOTREST
$32.09¢16 044
1
#20
90157-05079-00
SCREW, PAN HEAD
$6.26¢3 131
1
#21
90109-08203-00
BOLT
$6.60¢3 300
1
#22
B88-2740E-00-00
BRACKET SUB ASSY (RI
$114.90¢57 450
1
#23
B88-2749A-00-00
. SEAT 3
$9.93¢4 963
1
#24
3TU-2178A-00-00
LABEL
$3.94¢1 969
1
#25
90110-08056-00
BOLT, HEXAGON SOCKET HEAD
$2.01¢1 006
1
#26
90110-08107-00
BOLT, HEXAGON SOCKET HEAD
$2.91¢1 456
1
#27
4BH-27461-01-00
FOOTREST
$60.30¢30 150
1
#28
90508-184B0-00
SPRING, TORSION
$2.97¢1 487
1
#29
91701-08040-00
PIN
$4.84¢2 419
1
#30
91401-25015-00
PIN, COTTER
$3.61¢1 806
1
#31
4BP-27413-00-00
COVER, FOOTREST
$32.09¢16 044
1
#32
90157-05079-00
SCREW, PAN HEAD
$6.26¢3 131
1
#33
90109-08203-00
BOLT
$6.60¢3 300
1
#34
90380-20213-00
BUSH, SOLID
$31.31¢15 656
1
#35
1MC-2741L-10-00
BRACKET 4
$103.75¢51 875
1
#36
1MC-2742L-10-00
BRACKET 5
$103.75¢51 875
1
#37
5JW-23844-00-00
SEAL
$8.97¢4 488
1
#38
90110-08056-00
BOLT, HEXAGON SOCKET HEAD
$2.01¢1 006
1
#39
5LV-27431-01-00
FOOTREST, REAR 1
$39.40¢19 700
1
#40
5LV-27441-01-00
FOOTREST, REAR 2
$39.40¢19 700
1
#41
4BP-27413-00-00
COVER, FOOTREST
$32.09¢16 044
1
#42
90157-05079-00
SCREW, PAN HEAD
$6.26¢3 131
1
#43
91312-06040-00
BOLT
$7.52¢3 762
1
#44
95602-06200-00
NUT, SELF-LOCKING
$2.80¢1 400
1
#45
90501-15001-00
SPRING, COMPRESSION
$1.94¢969
1
#46
93501-04011-00
BALL
$7.46¢3 731
1
#47
5JJ-27437-01-00
WASHER, special
$7.03¢3 513
1
#48
90387-06014-00
COLLAR
$4.60¢2 300
1
#49
36Y-27424-01-00
DAMPER, FOOTREST 2
$18.69¢9 344
1
#50
90387-10048-00
COLLAR
$13.90¢6 950
1
#51
90201-10669-00
WASHER, PLATE
$7.46¢3 731
1
#52
1MC-27151-00-00
BRACKET, MAIN STAND
$112.61¢56 306
1
#53
1MC-27152-00-00
BRACKET, MAIN STAND 2
$85.08¢42 538
1
#54
90101-10004-00
BOLT
$2.61¢1 306
1
#55
95602-10200-00
NUT, U FLANGE
$2.73¢1 363
1
#56
5P5-27111-10-00
STAND, MAIN
$275.03¢137 513
1
#57
116-27114-00-00
STOPPER, MAIN STAND
$12.35¢6 175
1
#58
90109-10029-00
BOLT
$9.91¢4 956
1
#59
90506-40001-00
SPRING, TENSION
$29.28¢14 638
1
#60
90506-23001-00
SPRING, TENSION
$13.85¢6 925
1
#61
90445-170K9-00
HOSE (L60)
$7.90¢3 950
1
#62
5VS-W9753-00-00
SIDE CASE BRACKET RUBBER SET | SET OF 2
No Disponible
1
