DRIVE SHAFT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

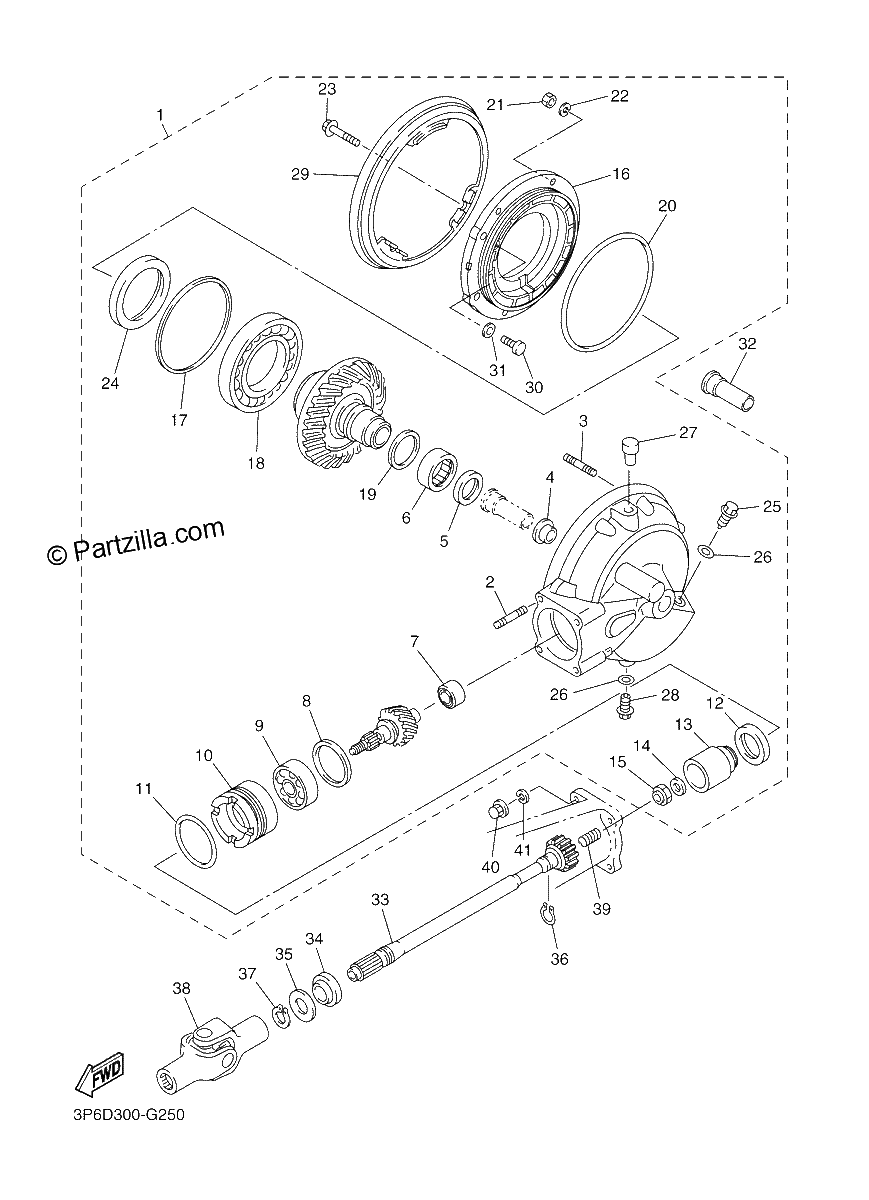

Diagrama de DRIVE SHAFT

Repuestos

#1
B88-W4612-10-00
REAR AXLE GEAR CASE ASSY
$1350.09¢675 044
1
#2
90116-10010-00
. BOLT, STUD
$6.81¢3 404
1
#3
90116-08025-00
BOLT, STUD
$4.05¢2 024
1
#4
5JW-46153-00-00
COLLAR, GUIDE
$22.65¢11 327
1
#5
93101-30084-00
OIL SEAL
$15.89¢7 946
1
#6
93311-43729-00
BEARING
$76.89¢38 445
1
#7
2H7-46102-00-00
BEARING ASSY
$57.14¢28 572
1
#8
1J7-17537-Y0-15
.. SHIM, THRUST (015T)
$3.10¢1 553
1
#8
1J7-17537-Y0-30
SHIM, THRUST (0.30T) | UR
$4.43¢2 214
1
#8
1J7-17537-Y0-40
SHIM, THRUST (0.40T) | UR
$3.99¢1 995
1
#8
1J7-17537-Y0-45
.. SHIM, THRUST (045T)
$2.74¢1 368
1
#8
1J7-17537-Y0-50
SHIM, THRUST (0.50T) | UR
$4.15¢2 076
1
#8
1J7-17537-Y0-60
.. SHIM, THRUST (060T)
$3.68¢1 840
1
#9
93306-30533-00
BEARING
$133.85¢66 924
1
#10
4H7-46125-00-00
RETAINER, BEARING
$60.03¢30 015
1
#11
93210-60426-00
O-RING
$9.46¢4 732
1
#12
93101-38001-00
OIL SEAL
$19.99¢9 994
1
#13
3P6-46123-01-00
COUPLING, GEAR
$130.49¢65 245
1
#14
90201-166R5-00
WASHER, PLATE
$16.27¢8 136
1
#15
90179-16010-00
. Nut
$17.95¢8 976
1
#16
3P6-46152-00-00
HOUSING, BEARING
$127.39¢63 693
1
#17
1J7-46117-Y0-30
SHIM, RING GEAR (0.30T) | UR
$7.27¢3 634
1
#17
1J7-46117-Y0-35
. SHIM, RING GEAR (035T)
No Disponible
1
#17
1J7-46117-Y0-40
SHIM, RING GEAR (0.40T) | UR
$13.20¢6 601
1
#17
1J7-46117-Y0-45
. SHIM, RING GEAR (045T)
$4.66¢2 329
1
#17
1J7-46117-Y0-25
SHIM, RING GEAR (0.25T) | UR
$13.26¢6 630
1
#17
1J7-46117-Y0-50
SHIM, RING GEAR (0.50T) | UR
$11.15¢5 577
1
#18
93316-01403-00
BEARING
$85.80¢42 901
1
#19
22U-46118-00-15
.. SHIM, THRUST (15T)
$4.93¢2 467
1
#19
22U-46118-00-14
SHIM, THRUST (1.4T) | UR
$10.19¢5 094
1
#19
22U-46118-00-17
.. SHIM, THRUST (17T)
$4.93¢2 467
1
#19
22U-46118-00-18
SHIM, THRUST (1.8T) | UR
$10.09¢5 043
1
#19
22U-46118-00-19
.. SHIM, THRUST (19T)
$4.93¢2 467
1
#19
22U-46118-00-20
SHIM, THRUST (2.0T) | UR
$9.98¢4 991
1
#19
22U-46118-00-21
.. SHIM, THRUST (21T)
$4.51¢2 254
1
#19
22U-46118-00-12
SHIM, THRUST (1.2T) | UR
$9.98¢4 991
1
#19
22U-46118-00-13
.. SHIM, THRUST (13T)
$4.93¢2 467
1
#19
22U-46118-00-16
SHIM, THRUST (1.6T) | UR
$10.12¢5 060
1
#20
93211-54698-00
O-RING
$19.41¢9 706
1
#21
95312-08600-00
. Nut
$3.51¢1 754
1
#22
90204-08001-00
WASHER, SPRING
$0.20¢98
1
#23
95812-10050-00
. BOLT, FLANGE
$5.51¢2 754
1
#24
93102-70167-00
OIL SEAL
$31.82¢15 910
1
#25
90340-14132-00
PLUG, STRAIGHT SCREW
$2.90¢1 449
1
#26
214-11198-01-00
GASKET
$2.97¢1 483
1
#27
2H7-17590-00-00
BREATHER COMP.
$25.81¢12 903
1
#28
90340-14004-00
PLUG, STRAIGHT SCREW
$15.78¢7 889
1
#29
1FK-46154-00-00
COVER, HOUSING
$29.70¢14 852
1
#30
1FK-46156-00-00
STOPPER, RING GEAR
$16.36¢8 182
1
#31
1FK-46157-00-15
SHIM, STOPPER (T=0.15) | UR
$3.43¢1 713
1
#31
1FK-46157-00-20
SHIM, STOPPER (T=0.20) | UR
$4.11¢2 053
1
#32
5VS-4615A-00-00
COLLAR, GUIDE 1
$43.15¢21 574
1
#33
3P6-46172-10-00
SHAFT, DRIVE
$225.20¢112 602
1
#34
93108-43001-00
OIL SEAL
$24.97¢12 483
1
#35
90201-23008-00
WASHER, PLATE
$2.70¢1 351
1
#36
93410-23056-00
CIRCLIP
$6.53¢3 266
1
#37
93410-22039-00
CIRCLIP,S-TYPE
$6.75¢3 375
1
#38
5JW-46180-00-00
CROSS JOINT COMP.
$378.86¢189 428
1
#39
90501-16491-00
SPRING, COMPRESSION
$6.36¢3 180
1
#40
90176-10075-00
NUT, CROWN
$7.19¢3 594
1
#41
92990-10600-00
WASHER, PLATE
$3.02¢1 512
1
