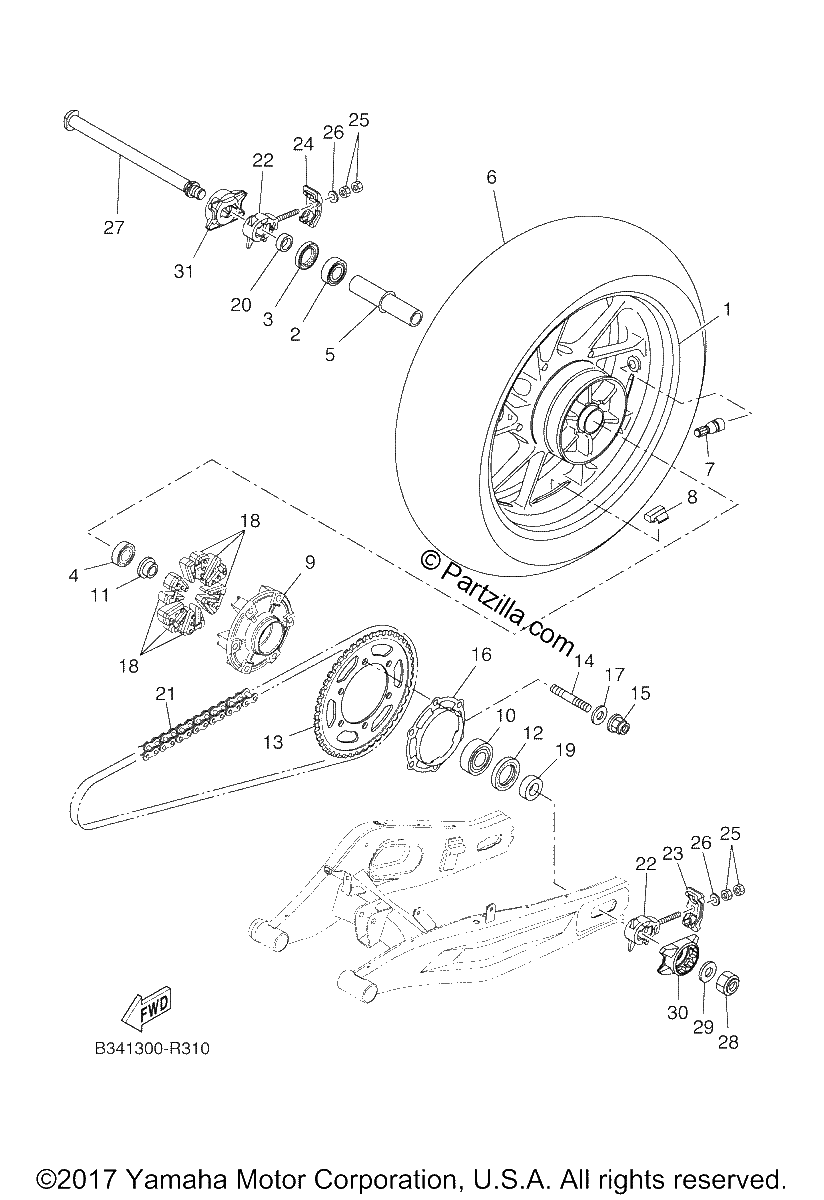

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CAST WHEEL, REAR | LGB FOR MNM3
$731.19¢365 597
#2
BEARING
$42.62¢21 310
#3
OIL SEAL
$13.85¢6 923
#4
BEARING
$40.23¢20 114
#5
SPACER, BEARING
$21.11¢10 557
#7
VALVE, RIM (TR412) | TAIHEIYO
$15.85¢7 923
#8
BALANCER, WHEEL (30G) | UN
$43.29¢21 643
#8
BALANCER, WHEEL (20G) | UN
$16.85¢8 424
#8
BALANCER, WHEEL (10G) | UN
$17.03¢8 516
#9
CLUTCH, HUB
$569.35¢284 677
#10
BEARING
$38.81¢19 406
#11
COLLAR, WHEEL
$30.81¢15 404
#12
OIL SEAL
$13.21¢6 607
#13
SPROCKET, DRIVEN (43T)
$88.73¢44 367
#14
BOLT, STUD
$25.00¢12 500
#15
NUT, SELF-LOCKING
$4.30¢2 151
#16
BRACKET 1
$20.87¢10 436
#17
WASHER, PLATE
$6.75¢3 375
#18
DAMPER
$40.01¢20 004
#19
COLLAR
$21.64¢10 821
#20
COLLAR
$14.31¢7 153
#21
CHAIN (DID 525VZ-108LE)
$182.93¢91 465
#22
PULLER, CHAIN 1
$22.48¢11 241
#23
END 1
$46.98¢23 489
#24
END 1
$24.17¢12 087
#25
NUT (6L2)
$7.44¢3 720
#26
WASHER, PLATE
$2.54¢1 271
#27
SHAFT, PIVOT
$95.70¢47 851
#28
NUT, SELF-LOCKING
$17.39¢8 694
#29
WASHER, PLATE
$5.13¢2 565
#30
COVER, REAR AXLE 1 | UR FOR BNS4
$38.27¢19 136
#31
COVER, REAR AXLE 2 | UR FOR BNS4
$36.54¢18 268
