FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

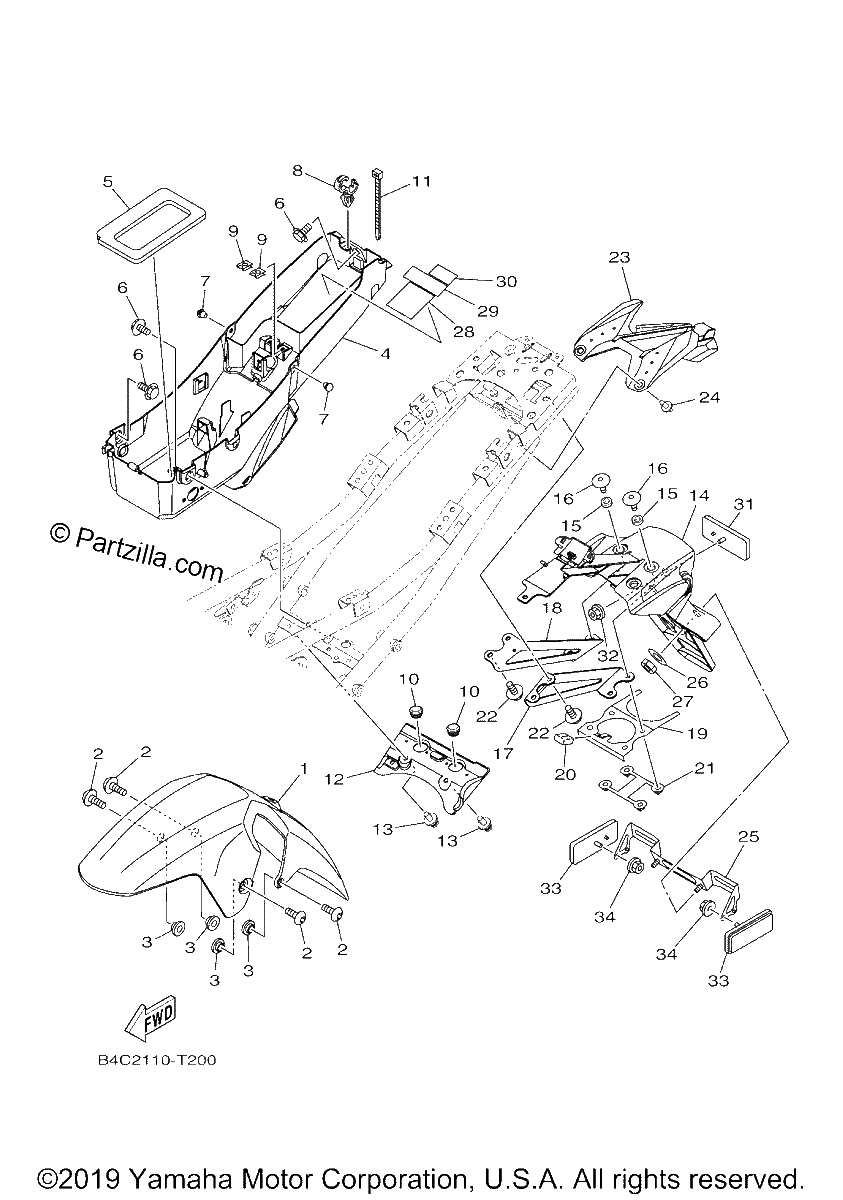

Diagrama de FENDER

Repuestos

#1
B4C-21511-00-00
FENDER, FRONT
$39.70¢19 849
1
#2
90111-06151-00
BOLT, HEX. SOCKET BUTTON
$2.92¢1 461
1
#3
90387-06153-00
COLLAR
$6.30¢3 151
1
#4
1WS-8212B-00-00
BOX, BATTERY 1
$30.44¢15 220
1
#5
1WS-21639-00-00
DAMPER 2
$6.11¢3 053
1
#6
90109-06202-00
BOLT
$2.98¢1 489
1
#7
90338-07180-00
PLUG
$6.22¢3 111
1
#8
90464-18002-00
CLAMP
$7.59¢3 795
1
#9
90183-04039-00
NUT, SPRING
$6.46¢3 231
1
#10
90480-14100-00
GROMMET
$7.07¢3 536
1
#11
90464-15152-00
CLAMP
$4.77¢2 386
1
#12
1WS-21642-00-00
GUARD, FLAP
$6.22¢3 111
1
#13
90269-06002-00
RIVET
$6.75¢3 375
1
#14
1WS-21629-00-00
GUARD, MUD
$73.60¢36 800
1
#15
90387-06106-00
COLLAR
$5.93¢2 967
1
#16
90111-06061-00
BOLT, HEX. SOCKET BUTTON
$6.87¢3 433
1
#17
1WS-2164F-00-00
STAY 1
$21.82¢10 908
1
#18
1WS-2164G-00-00
STAY 2
$20.00¢9 999
1
#19
1WS-21682-00-00
STAY, PLATE
$14.69¢7 343
1
#20
1WS-21746-00-00
DAMPER
$3.10¢1 553
1
#21
1WS-2161G-00-00
BRACKET 6
$12.78¢6 388
1
#22
90105-06206-00
BOLT,WASHER BASED
$1.54¢771
1
#23
1WS-2163A-00-00
COVER, REAR FENDER 1
$9.17¢4 583
1
#24
90269-07008-00
RIVET
$2.78¢1 392
1
#25
2RC-84751-00-00
BRACKET, LICENSE
$32.60¢16 301
1
#26
92990-06600-00
WASHER, PLATE
$3.13¢1 564
1
#27
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#28
4B5-21686-00-00
PLATE, ROUTING 2 | FOR CAL
$6.12¢3 059
1
#29
3JJ-28446-A1-00
LABEL, CAUTION
$4.54¢2 271
1
#30
3SA-24877-A0-00
LABEL, CAUTION
No Disponible
1
#31
3Y6-85130-02-00
Rear Reflector
$24.91¢12 455
1
#32
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$7.51¢3 755
1
#33
3Y6-85130-02-00
Rear Reflector
$24.91¢12 455
1
#34
95702-05500-00
NUT,FLANGE (SILVER)
$0.84¢420
1
