HEADLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

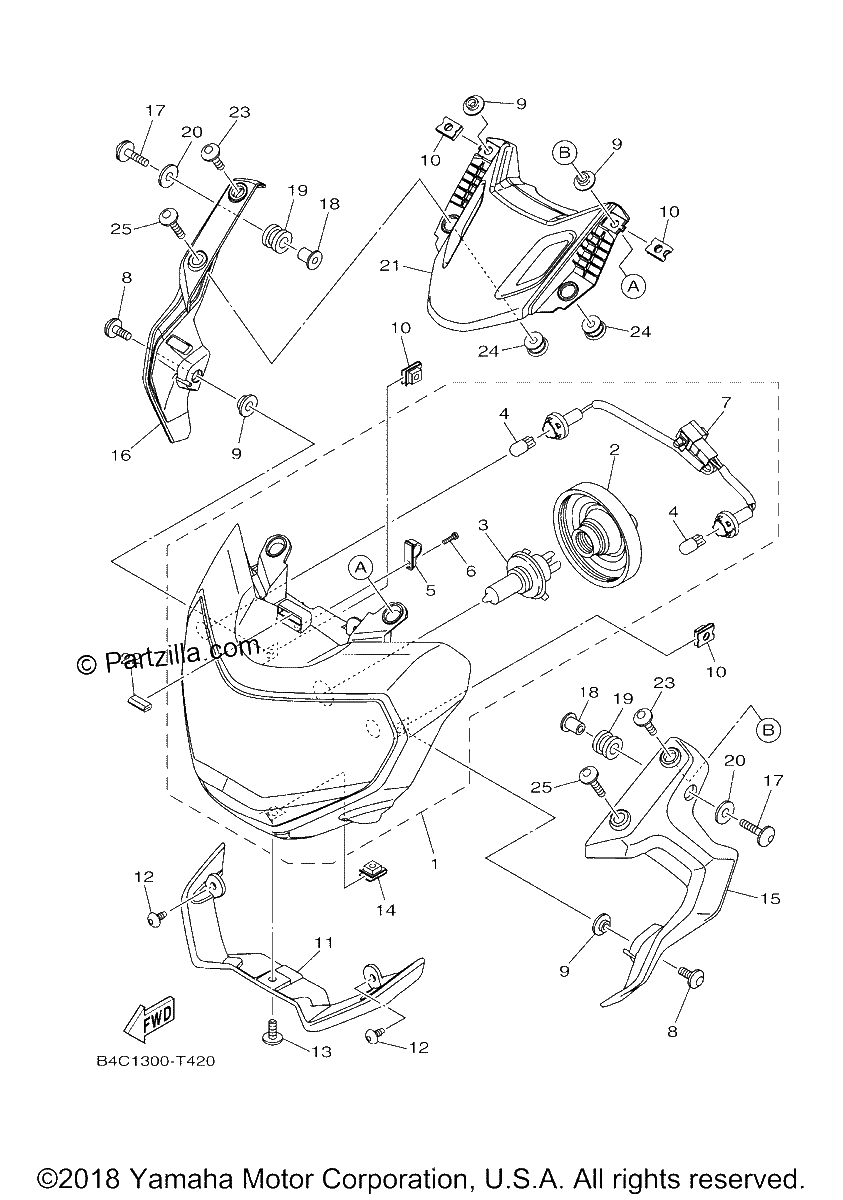

Diagrama de HEADLIGHT

Repuestos

#1
B4C-84300-00-00
HEADLIGHT ASSY
$227.95¢113 976
1
#2
1RC-84397-00-00
COVER, SOCKET
$13.49¢6 745
1
#3
1RC-84314-00-00
BULB, HEADLIGHT (12V-60/55W)
$32.02¢16 008
1
#4
1RC-84347-00-00
BULB (12V-5W)
$7.38¢3 691
1
#5
1RC-84746-00-00
PLATE, SEAT BASE
$4.05¢2 024
1
#6
1RC-84724-00-00
SCREW, LENS FITTING
$2.78¢1 392
1
#7
B4C-84359-00-00
CORD, HEADLIGHT
$25.60¢12 800
1
#8
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
1
#9
90387-06170-00
COLLAR
$6.83¢3 415
1
#10
90183-061A7-00
NUT, SPRING
$6.43¢3 214
1
#11
B4C-28361-00-P3
PLATE, FRONT | UR VRC1 FOR BWP1
$65.81¢32 907
1
#11
B4C-28361-00-P1
PLATE, FRONT | UR FOR MNM3
$73.43¢36 714
1
#11
B4C-28361-00-P0
PLATE, FRONT | UR FOR DPBMC
$81.39¢40 693
1
#12
90167-05079-00
SCREW, TAPPING
$3.33¢1 667
1
#13
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
1
#14
90183-061A7-00
NUT, SPRING
$6.43¢3 214
1
#15
B4C-84118-00-00
STAY, HEADLIGHT 1
$9.99¢4 997
1
#16
B4C-84119-00-00
STAY, HEADLIGHT 2
$9.99¢4 997
1
#17
90111-06172-00
BOLT, HEX. SOCKET BUTTON
$2.74¢1 368
1
#18
90387-06301-00
COLLAR
$4.09¢2 047
1
#19
90480-12015-00
GROMMET
$1.74¢868
1
#20
90201-06029-00
WASHER, PLATE
$5.09¢2 547
1
#21
B4C-84396-00-00
COVER
$14.60¢7 302
1
#22
1WS-28376-00-00
TRIM
$3.21¢1 604
1
#23
90149-06302-00
SCREW
$4.70¢2 352
1
#24
90179-06072-00
NUT
$5.65¢2 823
1
#25
90149-06328-00
SCREW
$4.70¢2 352
1
