TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

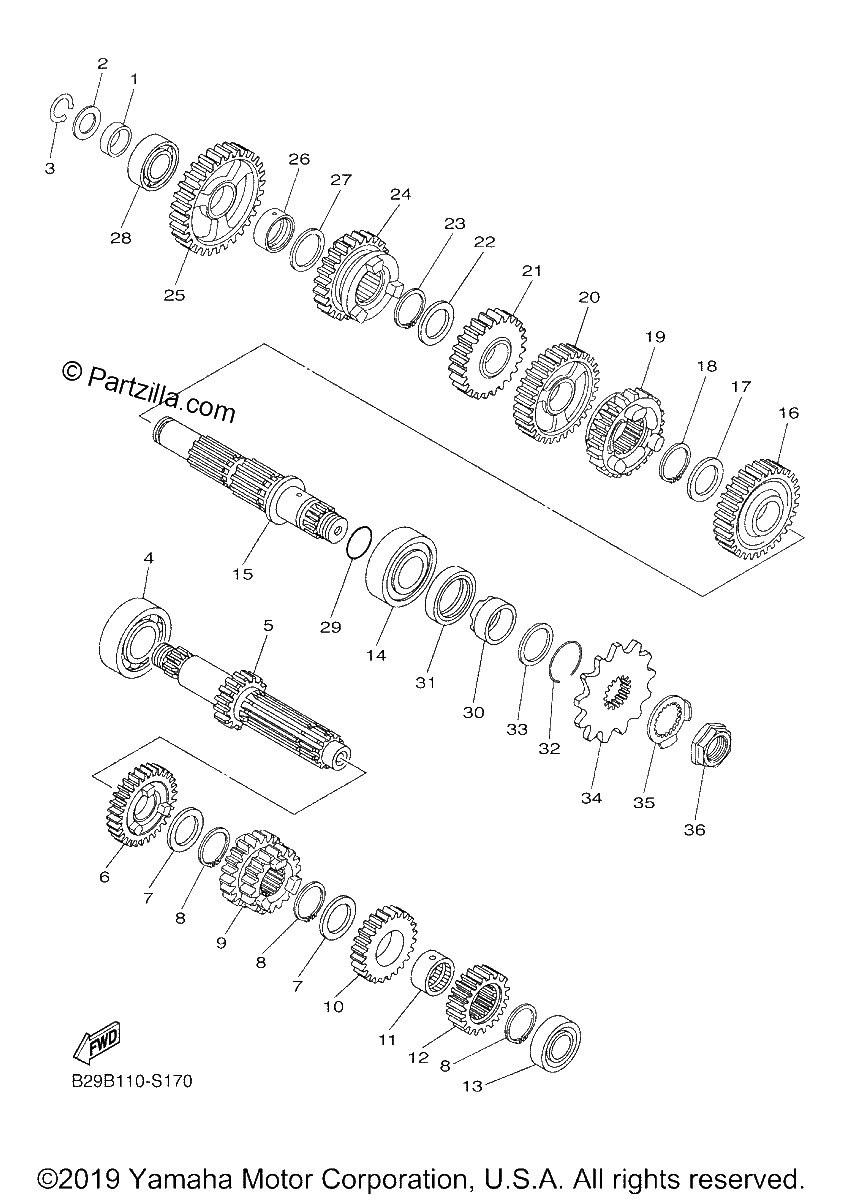

Diagrama de TRANSMISSION

Repuestos

#1
90387-175R2-00
COLLAR (1YW)
$12.32¢6 163
1
#2
90201-177G4-00
WASHER,PLATE
$8.09¢4 044
1
#3
99009-17400-00
Circlip
$4.65¢2 325
1
#4
93306-00426-00
BEARING
$43.60¢21 800
1
#5
2GB-17411-00-00
AXLE, MAIN
$128.60¢64 300
1
#6
2GB-17161-00-00
GEAR, 6TH PINION (27T)
$123.64¢61 819
1
#7
90209-20008-00
WASHER
$10.21¢5 106
1
#8
93410-22039-00
CIRCLIP,S-TYPE
$7.34¢3 669
1
#9
B29-17131-00-00
GEAR, 3RD PINION
$232.88¢116 438
1
#10
2GB-17151-00-00
GEAR, 5TH PINION (23T)
$115.25¢57 625
1
#11
90387-20006-00
Collar
$31.65¢15 825
1
#12
B29-17121-00-00
GEAR, 2ND PINION
$120.45¢60 225
1
#13
93306-20336-00
BEARING
$32.40¢16 200
1
#14
93306-27209-00
BEARING
$82.17¢41 088
1
#15
2GB-1742A-00-00
DRIVE AXLE ASSY., 2
$149.31¢74 656
1
#16
B29-17221-00-00
GEAR, 2ND WHEEL
$151.94¢75 969
1
#17
90209-23012-00
WASHER
$5.99¢2 994
1
#18
93410-26067-00
CIRCLIP,S-TYPE
$8.84¢4 419
1
#19
2GB-17251-00-00
GEAR, 5TH WHEEL (22T)
$155.91¢77 956
1
#20
B29-17231-00-00
GEAR, 3RD WHEEL
$123.65¢61 825
1
#21
B29-17241-00-00
GEAR, 4TH WHEEL
$119.24¢59 619
1
#22
90209-20008-00
WASHER
$10.21¢5 106
1
#23
93410-22039-00
CIRCLIP,S-TYPE
$7.34¢3 669
1
#24
2GB-17261-00-00
GEAR, 6TH WHEEL (22T)
$159.45¢79 725
1
#25
2GB-17211-00-00
GEAR, 1ST WHEEL (31T)
$108.05¢54 025
1
#26
90387-17012-00
COLLAR
$16.48¢8 238
1
#27
90201-177G4-00
WASHER,PLATE
$8.09¢4 044
1
#28
93306-20351-00
BEARING
$40.65¢20 325
1
#29
93210-196A4-00
O-RING
$2.33¢1 163
1
#30
90387-22033-00
Collar
$27.14¢13 569
1
#31
93102-28012-00
Oil Seal
$17.48¢8 738
1
#32
93450-40N50-00
Circlip
$1.47¢737
1
#33
90201-29M00-00
WASHER,PLATE
$6.47¢3 238
1
#34
9383B-13218-00
SPROCKET, DRIVE (13T)
$22.69¢11 344
1
#35
90215-20003-00
Washer, Lock
$7.30¢3 650
1
#36
90179-18001-00
Nut
$16.34¢8 169
1
