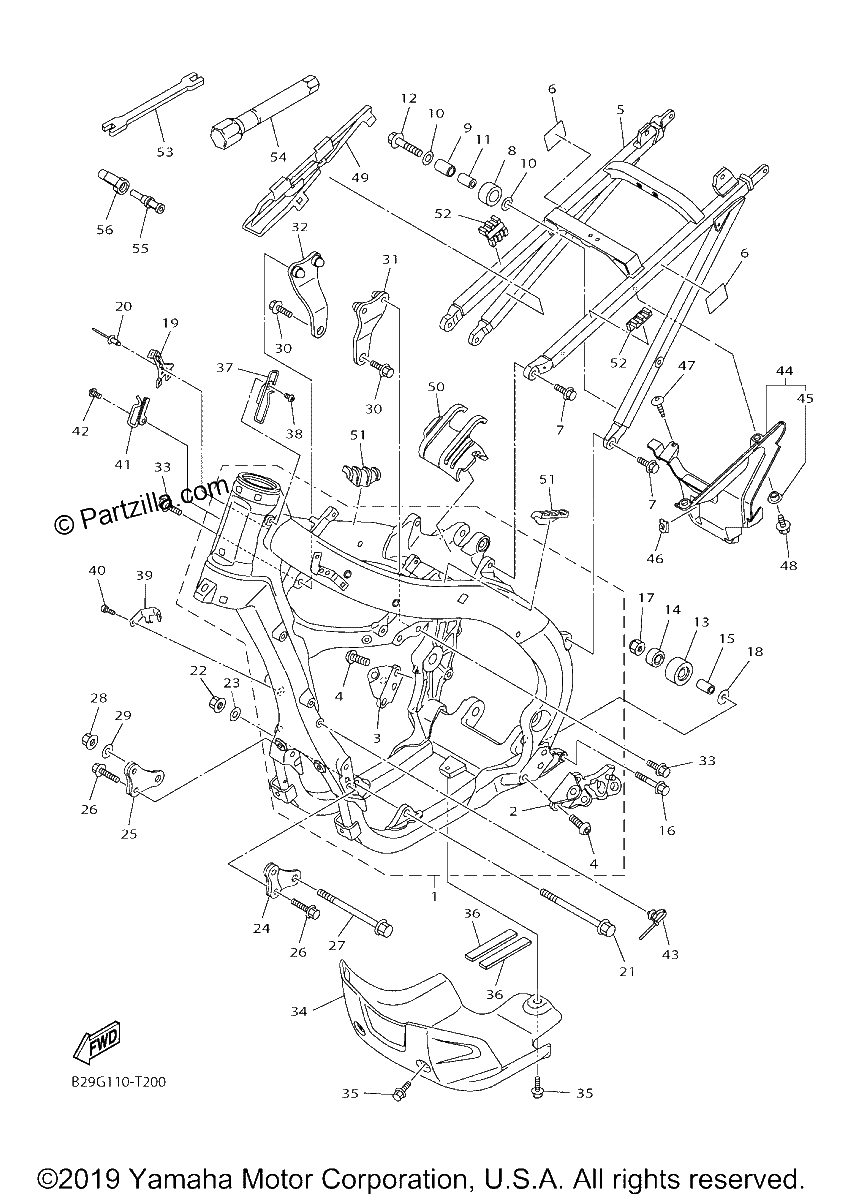

FRAME
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FRAME COMP. (replaces 2GC-21101-00-00)
$2878.44¢1 439 219
#2
BRACKET, FOOTREST
$149.66¢74 830
#3
BRACKET, FOOTREST
$36.54¢18 268
#4
SCREW
$5.97¢2 984
#5
REAR FRAME COMP.
No Disponible
#6
PROTECTOR
$4.52¢2 260
#7
Bolt, Flange
$3.90¢1 949
#8
TENSIONER
$34.55¢17 273
#9
BUSH
$3.90¢1 949
#10
WASHER, PLATE
$5.21¢2 605
#11
COLLAR
$7.38¢3 691
#12
Bolt, Flange
$6.75¢3 375
#13
TENSIONER
$42.53¢21 263
#14
BEARING
$12.25¢6 124
#15
COLLAR
$9.12¢4 560
#16
Bolt, Flange
$4.93¢2 467
#17
NUT, SELF-LOCKING
$7.44¢3 720
#18
WASHER, plate
$6.32¢3 162
#19
BRACKET, BATTERY B
$7.98¢3 991
#20
RIVET, BLIND
$6.36¢3 180
#21
Bolt, Flange
$17.56¢8 780
#22
NUT,SPEC'L SHAPE
$8.49¢4 244
#23
WASHER, PLATE
$6.75¢3 375
#24
BRACKET, FRONT LOWER 1
$20.25¢10 126
#25
BRACKET, FRONT LOWER 2
$20.25¢10 126
#26
BOLT, FLANGE
$6.23¢3 117
#27
BOLT, FLANGE
$10.51¢5 256
#28
NUT,SPEC'L SHAPE
$8.49¢4 244
#29
WASHER, PLATE
$6.75¢3 375
#30
BOLT, FLANGE
$9.18¢4 589
#31
BRACKET, REAR UPPER 1
$40.31¢20 154
#32
BRACKET, REAR UPPER 2
$40.31¢20 154
#33
BOLT, FLANGE
$6.23¢3 117
#34
GUARD, ENGINE 1
$132.22¢66 108
#35
BOLT, WITH WASHER
$5.27¢2 633
#36
DAMPER, PLATE
$2.78¢1 392
#37
HOLDER, CLUTCH CABLE
$18.92¢9 459
#38
BOLT, BUTTON HEAD
$2.68¢1 340
#39
CLAMP, WIRE HARNESS 1
$23.14¢11 569
#40
BOLT
$5.69¢2 846
#41
HOLDER, CLUTCH CAB
$12.88¢6 440
#42
BOLT, BUTTON HEAD
$2.68¢1 340
#43
CLAMP
$4.20¢2 099
#44
COVER, SIDE 5
$20.00¢9 999
#45
COLLAR
$7.44¢3 720
#46
NUT, SPRING
$6.68¢3 341
#47
SCREW, TAPPING
$1.35¢673
#48
BOLT, HEXAGON SOCKET HEAD
$6.87¢3 433
#49
COVER, SIDE 6
$9.48¢4 738
#50
DAMPER, locating 1
$24.49¢12 247
#51
DAMPER, LOCATING 2
$16.67¢8 337
#52
DAMPER, LOCATING 3
$11.73¢5 865
#53
WRENCH, HEXAGON
$32.07¢16 037
#54
BOX, SPARK PLUG
$10.51¢5 256
#55
CAP
$7.23¢3 617
#56
CASE, CAP
$5.34¢2 668
