STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

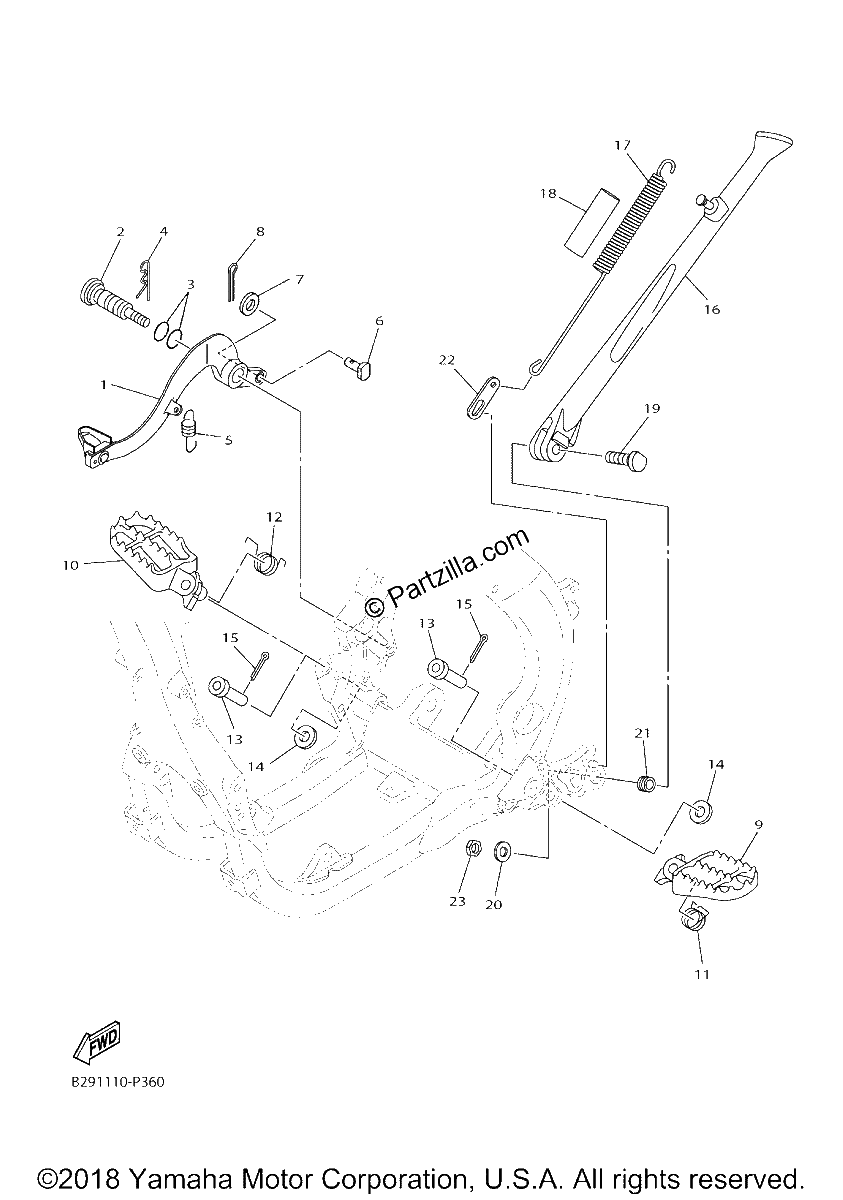

Diagrama de STAND FOOTREST

Repuestos

#1
17D-27200-51-00
PEDAL, BRAKE
$113.52¢56 758
1
#2
17D-27217-00-00
BOLT
$28.70¢14 352
1
#3
93210-11073-00
O-RING
$6.32¢3 162
1
#4
90468-16001-00
Clip
$4.94¢2 472
1
#5
90506-20031-00
SPRING, TENSION
$4.55¢2 277
1
#6
90240-08120-00
PIN, CLEVIS
$11.76¢5 882
1
#7
90201-08044-00
WASHER, PLATE
$6.75¢3 375
1
#8
91490-20015-00
PIN. COTTER
$2.02¢1 012
1
#9
5XC-27411-M2-00
FOOTREST 1
$131.23¢65 613
1
#10
5XC-27421-M2-00
FOOTREST 2
$131.23¢65 613
1
#11
90508-28015-00
SPRING, TORSION
$8.64¢4 318
1
#12
90508-28018-00
SPRING, TORSION
$6.55¢3 278
1
#13
90240-10004-00
PIN, CLEVIS
$13.73¢6 865
1
#14
90201-10032-00
WASHER, PLATE
$1.20¢598
1
#15
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#16
5UM-27311-E1-00
STAND, SIDE
$135.63¢67 816
1
#17
90506-30005-00
Spring, Tension
$19.86¢9 930
1
#18
90445-212G3-00
HOSE (L95) (replaces 90445-217G3-00)
$7.58¢3 789
1
#19
90109-10026-00
bolt
$6.77¢3 387
1
#20
90201-10045-00
WASHER, PLATE
$6.75¢3 375
1
#21
90387-1003G-00
COLLAR
$20.17¢10 085
1
#22
5UM-27315-E0-00
LINK, SIDE STAND
$3.29¢1 644
1
#23
90185-10018-00
NUT, SELF-LOCKING
$6.82¢3 410
1
