ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

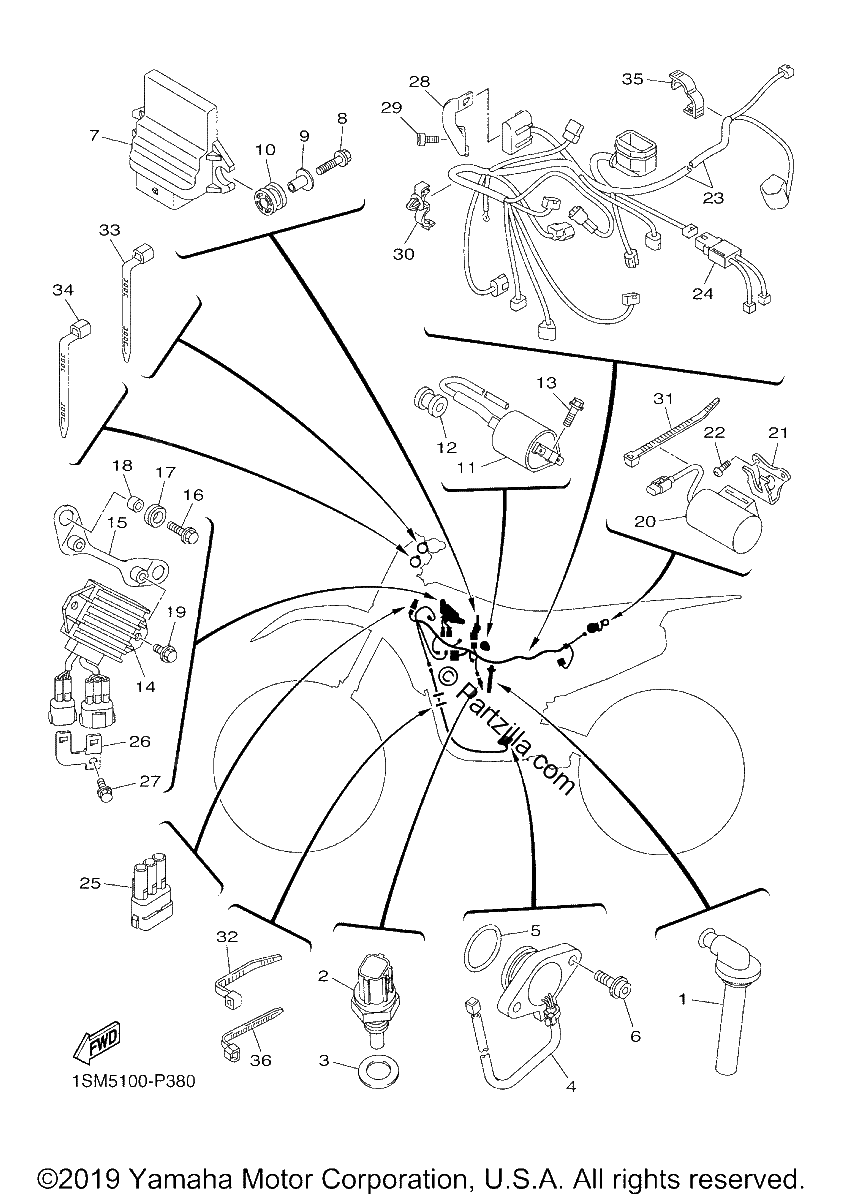

Diagrama de ELECTRICAL 1

Repuestos

#1
1SM-82370-00-00
PLUG CAP ASSY
$112.73¢56 363
1
#2
54P-H3591-00-00
THERMO UNIT (replaces 4P9-83591-00-00)
$34.40¢17 200
1
#3
90430-10004-00
GASKET
$7.08¢3 538
1
#4
B11-82540-00-00
NEUTRAL SWITCH ASSY
$67.46¢33 731
1
#5
93210-21001-00
O-RING
$5.69¢2 844
1
#6
90110-05028-00
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
1
#7
1SM-8591A-90-00
ENGINE CONTROL UNIT ASSY
$693.77¢346 888
1
#8
90105-05005-00
Bolt, Flange
$1.01¢506
1
#9
90387-05048-00
Collar
$6.29¢3 144
1
#10
90480-13029-00
Grommet
$5.59¢2 794
1
#11
BR9-82310-01-00
IGNITION COIL ASSY (replaces BR9-82310-00-00)
$60.66¢30 331
1
#12
90480-11015-00
Grommet
$4.15¢2 075
1
#13
95022-06016-00
BOLT, FLANGE
$3.96¢1 981
1
#14
1SL-81960-00-00
RECTIFIER & REGULATOR ASSY
$178.23¢89 113
1
#15
1SL-21287-00-00
BRACKET, REGULATOR
$18.73¢9 363
1
#16
90105-06203-00
BOLT, FLANGE
$2.15¢1 075
1
#17
90480-13025-00
Grommet
$3.79¢1 894
1
#18
90387-07573-00
COLLAR
$8.89¢4 444
1
#19
90105-06064-00
Bolt, Flange
$3.17¢1 588
1
#20
1SL-81965-00-00
CONDENSER, SMOOTHING
$175.90¢87 950
1
#21
1SL-21273-00-00
BRKT. CONDENSER
$6.29¢3 144
1
#22
92017-05012-00
BOLT,BUTTON
$3.19¢1 594
1
#23
1SM-82590-10-00
WIRE HARNESS ASSY
$297.64¢148 819
1
#24
1SL-82309-00-00
WIRE, SUB LEAD
$30.67¢15 337
1
#25
33D-82378-00-00
Connector
$18.49¢9 244
1
#26
1SL-82388-00-00
PLATE
$4.68¢2 338
1
#27
90105-06110-00
Bolt, Flange
$7.46¢3 731
1
#28
1SL-82389-00-00
PLATE 2
$5.76¢2 881
1
#29
91380-06012-00
BOLT
$2.23¢1 113
1
#30
90464-17003-00
Clamp
$3.69¢1 844
1
#31
1UA-82591-00-00
BAND
$4.91¢2 456
1
#32
90465-10098-00
CLAMP
$2.78¢1 388
1
#33
90464-13077-00
CLAMP
$7.94¢3 969
1
#34
90464-15195-00
CLAMP
$3.30¢1 650
1
#35
90464-18004-00
Clamp
$5.21¢2 606
1
#36
90464-15195-00
CLAMP
$3.30¢1 650
1
