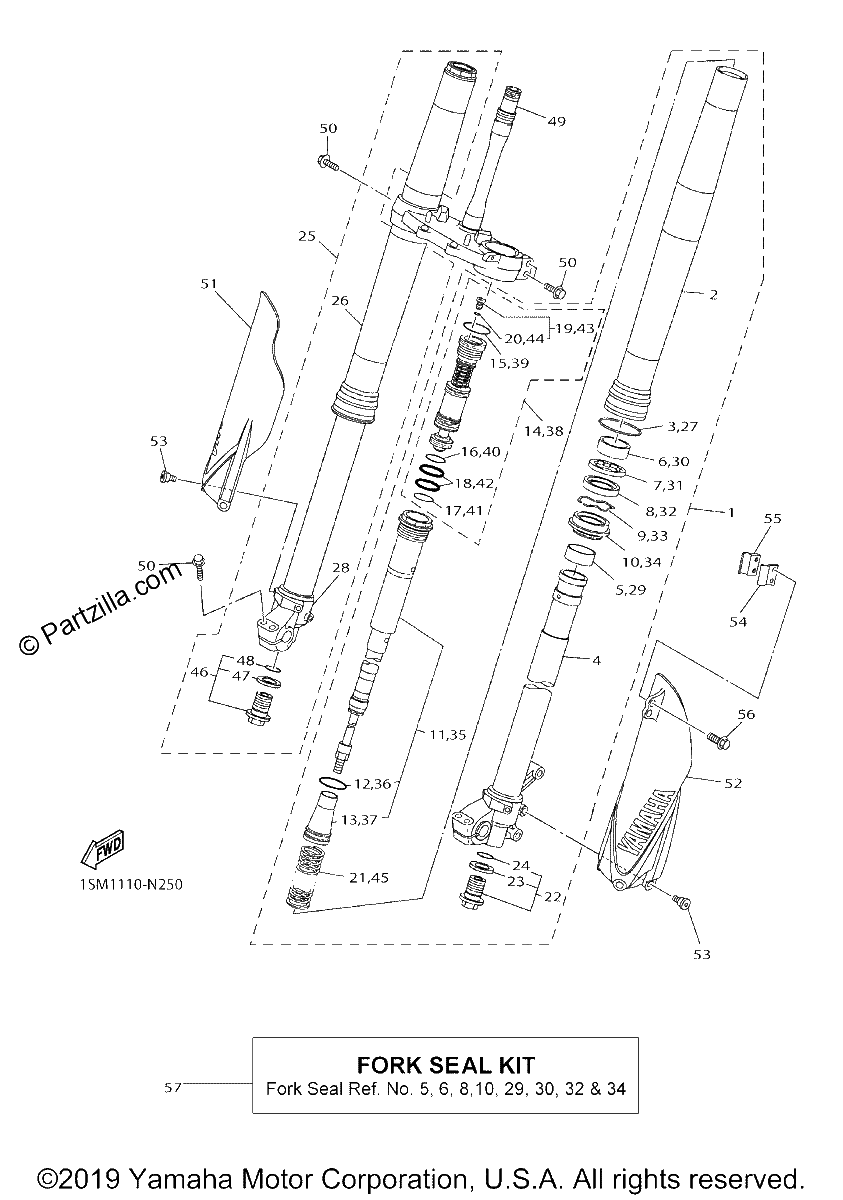

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$1128.14¢564 069
#2
TUBE, OUTER
$822.24¢411 119
#3
RING, SNAP
$4.58¢2 289
#4
INNER TUBE COMP.2
$471.29¢235 646
#5
PISTON, FRONT FORK
$22.67¢11 333
#6
METAL, SLIDE 1
$23.02¢11 511
#7
WASHER, OIL SEAL
$11.60¢5 802
#8
OIL SEAL
$24.97¢12 483
#8
Oil Seal
$21.75¢10 873
#9
RING, SNAP
$7.04¢3 519
#10
SEAL, DUST
$21.11¢10 557
#11
CYLINDER COMP., front fork
$727.94¢363 969
#12
O-RING
$3.51¢1 754
#13
SEAT, SPRING UPPER
$77.73¢38 864
#14
VALVE COMP.
$323.45¢161 724
#15
O-RING
$3.00¢1 501
#16
O-RING
$7.04¢3 519
#17
O-RING
$6.51¢3 254
#18
GASKET
$8.14¢4 071
#19
AIR VALVE COMP.
$21.98¢10 988
#20
O-RING
$3.00¢1 501
#21
SPRING, FRONT FORK
$139.13¢69 563
#22
BOLT, CAP
$75.81¢37 904
#23
GASKET
$10.43¢5 215
#24
GASKET
$4.25¢2 128
#25
FRONT FORK ASSY (R.H)
$1128.14¢564 069
#26
TUBE, OUTER
$822.24¢411 119
#27
RING, SNAP
$4.58¢2 289
#28
INNER TUBE COMP.1
$471.29¢235 646
#29
PISTON, FRONT FORK
$22.67¢11 333
#30
METAL, SLIDE 1
$23.02¢11 511
#31
WASHER, OIL SEAL
$11.60¢5 802
#32
Oil Seal
$21.75¢10 873
#32
OIL SEAL
$24.97¢12 483
#33
RING, SNAP
$7.04¢3 519
#34
SEAL, DUST
$21.11¢10 557
#35
CYLINDER COMP., front fork
$727.94¢363 969
#36
O-RING
$3.51¢1 754
#37
SEAT, SPRING UPPER
$77.73¢38 864
#38
VALVE COMP.
$323.45¢161 724
#39
O-RING
$3.00¢1 501
#40
O-RING
$7.04¢3 519
#41
O-RING
$6.51¢3 254
#42
GASKET
$8.14¢4 071
#43
AIR VALVE COMP.
$21.98¢10 988
#44
O-RING
$3.00¢1 501
#45
SPRING, FRONT FORK
$139.13¢69 563
#46
BOLT, CAP
$75.81¢37 904
#47
GASKET
$10.43¢5 215
#48
GASKET
$4.25¢2 128
#49
UNDER BRACKET COMP.
$542.79¢271 394
#50
BOLT, FLANGE
$6.32¢3 162
#51
PROTECTOR 2
$15.21¢7 607
#52
PROTECTOR 1
$15.21¢7 607
#53
BOLT
$3.61¢1 805
#54
CLAMP
$18.14¢9 068
#55
CLAMP
$24.83¢12 414
#56
BOLT, FLANGE
$4.65¢2 323
#57
FORK SEALS KIT
$63.50¢31 751
