FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

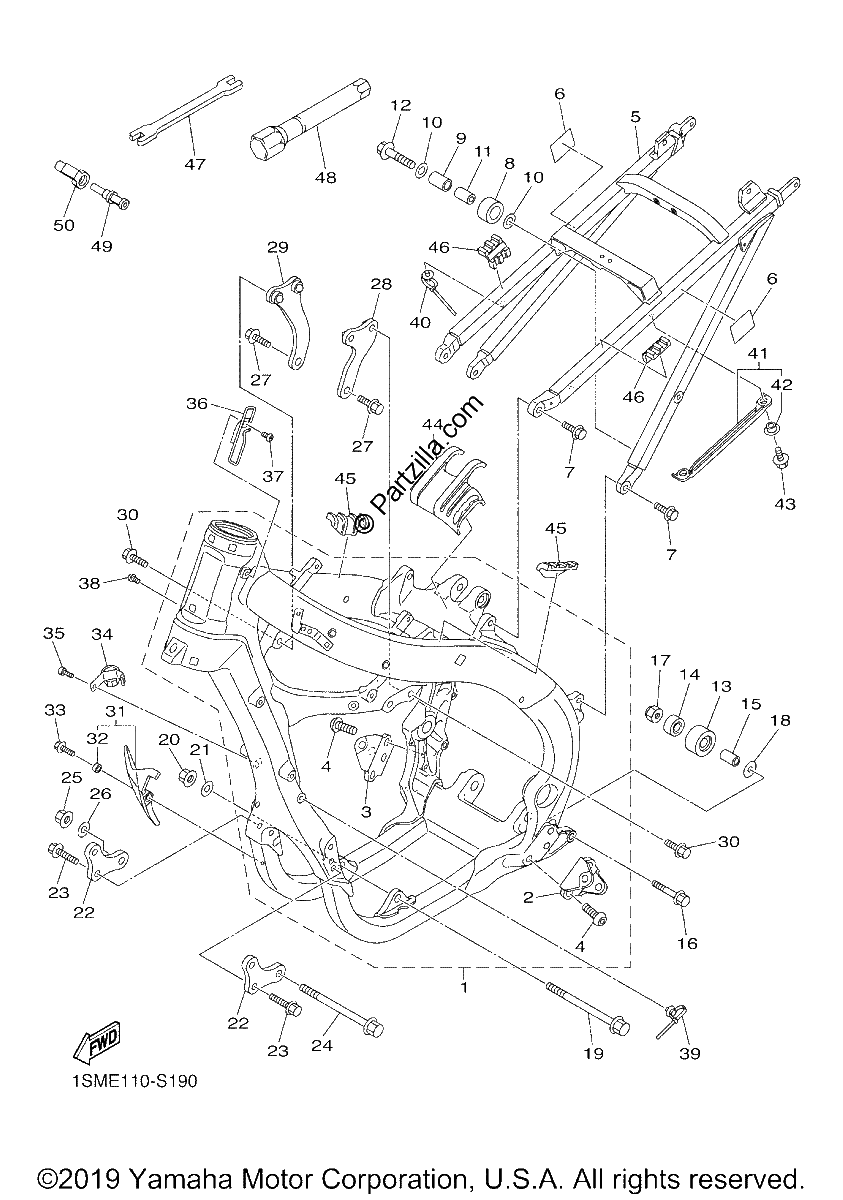

Diagrama de FRAME

Repuestos

#1
B11-21101-01-00
FRONT FRAME COMP.
$3128.74¢1 564 369
1
#2
17D-21447-00-00
BRACKET, FOOTREST
$42.25¢21 125
1
#3
17D-21448-00-00
BRACKET, FOOTREST
$39.71¢19 856
1
#4
90149-10033-00
SCREW
$6.49¢3 244
1
#5
1SL-21190-10-00
REAR FRAME COMP.
No Disponible
1
#6
33D-23472-00-00
PROTECTOR
$4.91¢2 456
1
#7
90105-08230-00
Bolt, Flange
$4.24¢2 119
1
#8
30X-22178-00-00
TENSIONER
$37.55¢18 775
1
#9
4V4-22184-00-00
BUSH
$4.24¢2 119
1
#10
90201-08045-00
WASHER, PLATE
$5.66¢2 831
1
#11
90387-08041-00
COLLAR
$8.03¢4 013
1
#12
95024-08040-00
Bolt, Flange
$7.34¢3 669
1
#13
3JD-22178-20-00
TENSIONER
$46.22¢23 112
1
#14
93300-60839-00
BEARING
$13.31¢6 656
1
#15
90387-086N4-00
COLLAR
$9.91¢4 956
1
#16
90105-08232-00
BOLT, FLANGE
$2.58¢1 288
1
#17
90185-08009-00
NUT, SELF-LOCKING
$8.09¢4 044
1
#18
90201-08043-00
WASHER, plate
$6.88¢3 438
1
#19
90105-10456-00
Bolt, Flange
$19.09¢9 544
1
#20
90179-10658-00
NUT,SPEC'L SHAPE
$9.22¢4 613
1
#21
90201-10045-00
WASHER, PLATE
$7.34¢3 669
1
#22
1SM-21417-10-00
BRACKET, FRONT LOWER 1
$11.76¢5 881
1
#23
90105-08143-00
BOLT, FLANGE
$6.78¢3 388
1
#24
90105-10176-00
BOLT, FLANGE
$11.43¢5 713
1
#25
90179-10658-00
NUT,SPEC'L SHAPE
$9.22¢4 613
1
#26
90201-10045-00
WASHER, PLATE
$7.34¢3 669
1
#27
90105-10189-00
BOLT, FLANGE
$9.98¢4 988
1
#28
1SM-21425-10-00
BRACKET, REAR UPPER 1
$23.42¢11 712
1
#29
1SM-21426-10-00
BRACKET, REAR UPPER 2
$41.91¢20 956
1
#30
90105-08143-00
BOLT, FLANGE
$6.78¢3 388
1
#31
1SM-21471-00-00
PROTECTOR, ENGINE
$11.57¢5 788
1
#32
90387-06106-00
COLLAR
$6.45¢3 225
1
#33
90105-06203-00
BOLT, FLANGE
$2.15¢1 075
1
#34
1SM-21335-01-00
CLAMP, WIRE HARNESS 1
$25.15¢12 575
1
#35
91312-05008-00
BOLT
$6.19¢3 094
1
#36
1SL-21163-01-00
HOLDER, CLUTCH CABLE
$20.56¢10 281
1
#37
92012-06010-00
BOLT, BUTTON HEAD
$2.91¢1 456
1
#38
92012-06010-00
BOLT, BUTTON HEAD
$2.91¢1 456
1
#39
90464-31002-00
CLAMP
$4.56¢2 281
1
#40
90464-31002-00
CLAMP
$4.56¢2 281
1
#41
1SL-2171E-00-00
COVER, SIDE 5
$9.81¢4 906
1
#42
90387-065T2-00
COLLAR
$8.09¢4 044
1
#43
95022-06016-00
BOLT, FLANGE
$3.96¢1 981
1
#44
1SL-24181-00-00
DAMPER, LOCATING 1
$21.90¢10 950
1
#45
33D-24182-00-00
DAMPER, LOCATING 2
$18.13¢9 063
1
#46
33D-24183-00-00
DAMPER, LOCATING 3
$12.75¢6 375
1
#47
5ET-28166-10-00
WRENCH, HEXAGON
$34.86¢17 431
1
#48
17D-2814F-00-00
BOX, SPARK PLUG
$11.43¢5 713
1
#49
18P-2467E-00-00
CAP
$7.86¢3 931
1
#50
18P-2464V-00-00
CASE, CAP
$5.80¢2 900
1
