CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

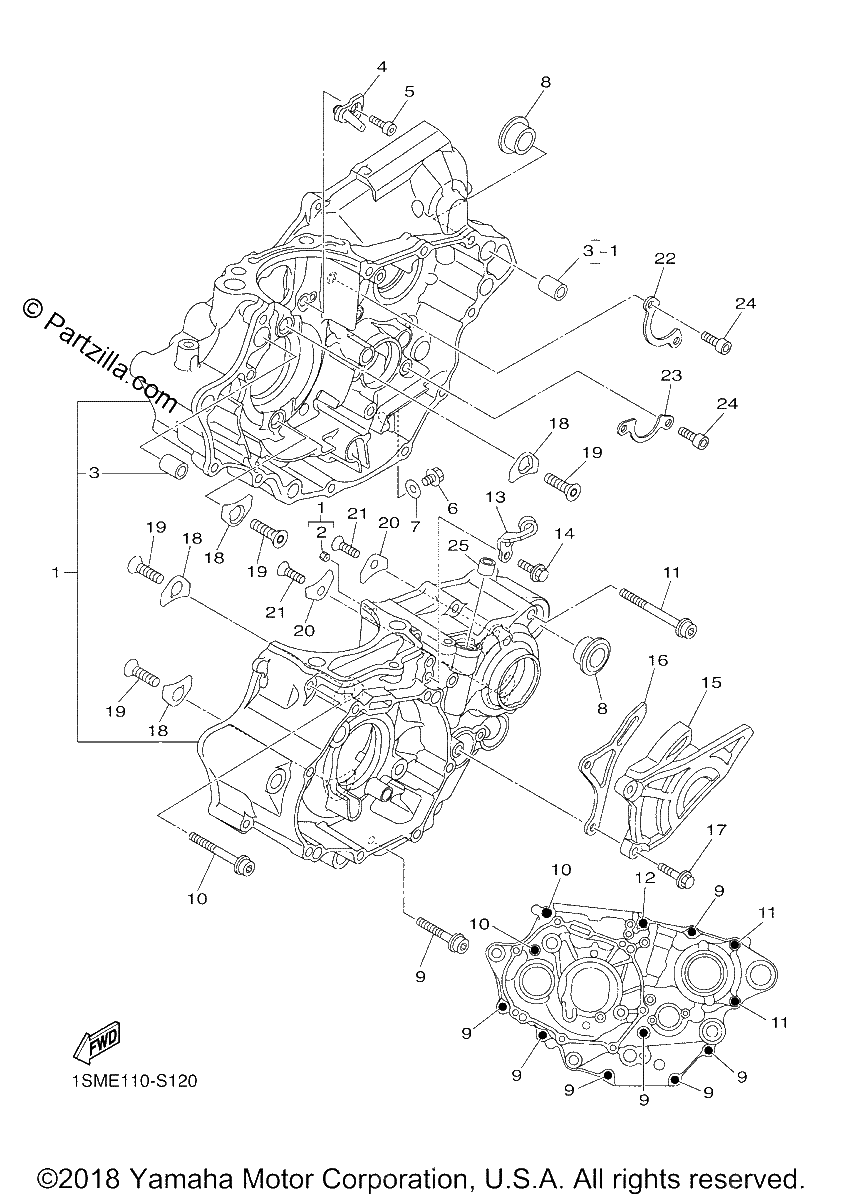

Diagrama de CRANKCASE

Repuestos

#1
1SM-15100-29-00
CRANKCASE ASSY (replaces 1SM-15100-08-00)
$1728.56¢864 281
1
#2
1SM-15138-00-00
NOZZLE 1
$8.34¢4 169
1
#3
99530-14016-00
PIN, DOWEL
$3.81¢1 906
1
#4
1SM-15155-10-00
NOZZLE 3
$30.84¢15 419
1
#5
90110-05032-00
BOLT, HEXAGON SOCKET HEAD
$3.02¢1 513
1
#6
95022-10016-00
BOLT, FLANGE
$7.48¢3 738
1
#7
90430-10188-00
Gasket
$7.36¢3 681
1
#8
90387-17015-00
Collar
$27.52¢13 763
1
#9
90110-06391-00
BOLT, HEXAGON SOCKET HEAD
$2.11¢1 056
1
#10
90110-06363-00
BOLT, HEXAGON SOCKET HEAD
$2.99¢1 494
1
#11
90110-06392-00
BOLT, HEXAGON SOCKET HEAD
$3.74¢1 869
1
#12
91317-06075-00
bolt
$4.55¢2 275
1
#13
1SM-15441-00-00
HOLDER, CLUTCH CABLE
$13.81¢6 906
1
#14
90105-06099-00
BOLT, FLANGE
$6.64¢3 319
1
#15
1SL-15421-00-00
COVER, CRANKCASE 2
$17.01¢8 506
1
#16
1SL-17466-00-00
Guide, Chain
$17.48¢8 738
1
#17
90105-06189-00
Bolt, Flange
$7.34¢3 669
1
#18
18P-15383-00-00
PLATE, BEARING COVER
$8.03¢4 013
1
#19
90151-08007-00
SCREW, COUNTERSUNK
$2.20¢1 100
1
#20
4JT-15381-01-00
PLATE, BEARING COV
$12.54¢6 269
1
#21
90151-06053-00
SCREW
$7.60¢3 800
1
#22
1SM-15388-00-00
PLATE, BEARING COVER
$6.06¢3 031
1
#23
1SL-18562-00-00
PLATE, STOPPER 2
$7.06¢3 531
1
#24
90110-06182-00
BOLT
$7.34¢3 669
1
#25
90384-06003-00
BUSH, BIMETAL FORMED
$4.96¢2 481
1
