REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

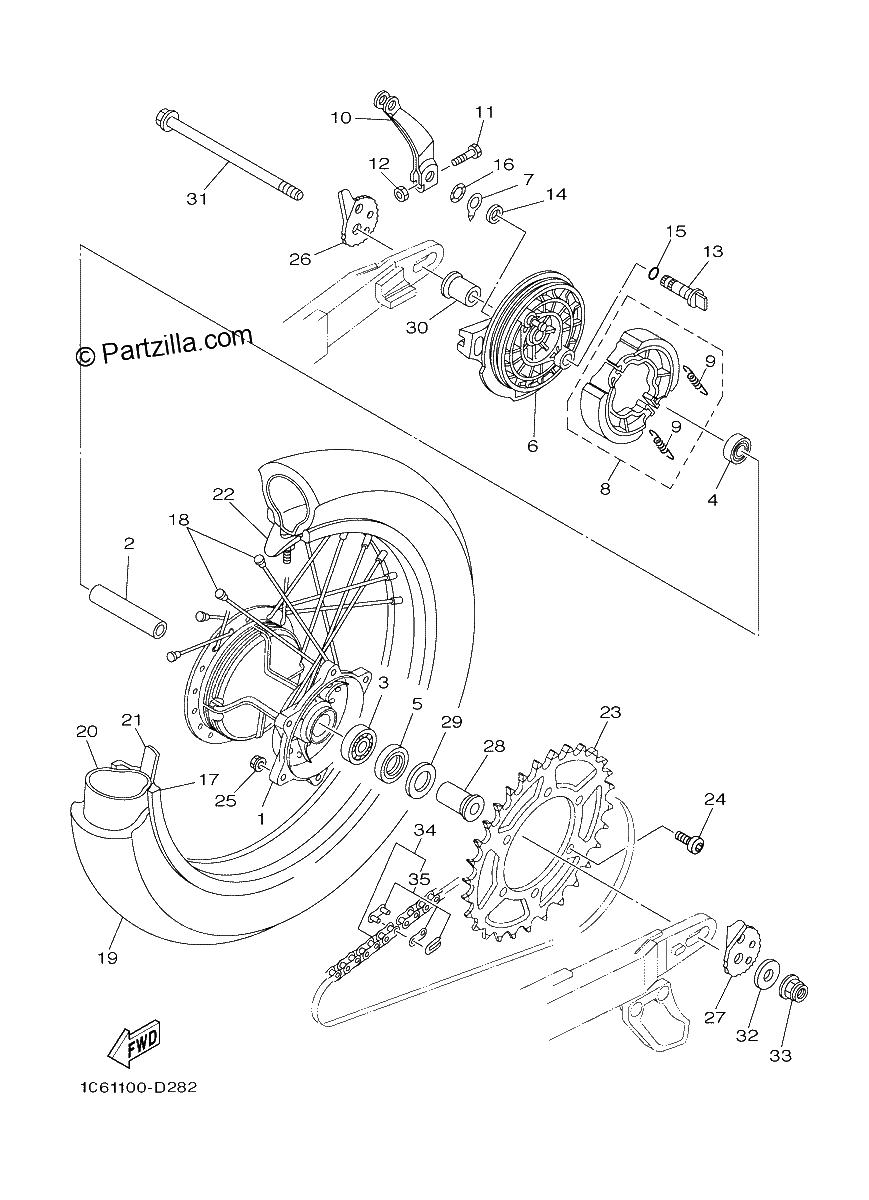

Diagrama de REAR WHEEL

Repuestos

#1
1C6-F5311-00-00
HUB, REAR
$229.15¢114 575
1
#2
5L9-F5317-00-00
90560-15313-00 This item has been discontinued and may not be available. Contact us for more information.
$48.70¢24 350
1
#3
93306-302X7-00
BEARING
$23.85¢11 925
1
#4
93306-252Y2-00
BEARING
$20.31¢10 156
1
#5
93106-26005-00
OIL SEAL
$7.99¢3 994
1
#6
5RM-F5321-03-00
PLATE, brake shoe
$121.88¢60 938
1
#7
5HH-F533A-00-00
PLATE, INDICATOR
$5.96¢2 981
1
#8
5HH-F5330-00-00
BRAKE SHOE COMP.
$28.61¢14 306
1
#9
90506-15260-00
SPRING,TENSION
$6.85¢3 425
1
#10
5RM-F5355-00-00
LEVER, CAMSHAFT
$51.06¢25 531
1
#11
90101-06W00-00
BOLT
$3.57¢1 787
1
#12
9530M-06600-00
NUT
$3.21¢1 606
1
#13
5RM-F5351-00-00
Camshaft
$29.85¢14 925
1
#14
93109-14021-00
OIL SEAL
$12.61¢6 306
1
#15
93210-14104-00
O-RING
$5.93¢2 963
1
#16
90206-14093-00
WASHER, WAVE(4KN)
$7.65¢3 825
1
#17
94418-18016-00
RIM (1.85-18)
$440.48¢220 238
1
#18
1C6-F5304-00-00
SPOKE SET, REAR
$81.50¢40 750
1
#19
94110-18801-00
100/100-18 MT230
$612.49¢306 244
1
#20
94210-18W50-00
TUBE
$76.50¢38 250
1
#21
94325-18801-00
BAND, RIM (2.50-18
$6.13¢3 063
1
#22
4XM-25394-00-00
SPACER,BEAD
$63.74¢31 869
1
#23
1C6-F5449-22-00
SPROCKET, DRIVEN (49T)
$55.98¢27 988
1
#24
90111-08826-00
bolt
$1.80¢900
1
#25
95607-08200-00
NUT, SELF-LOCKING
$8.45¢4 225
1
#26
5RM-F5389-00-00
PULLER, CHAIN 2
$6.67¢3 338
1
#27
1C6-F5389-00-00
PULLER, CHAIN 2
$6.67¢3 338
1
#28
90387-15W34-00
Collar
$25.10¢12 550
1
#29
4AN-F5367-00-00
COVER, HUB DUST
$1.52¢763
1
#30
90387-15W35-00
Collar
$18.43¢9 213
1
#31
1C6-F5381-00-00
AXLE, WHEEL
$37.29¢18 644
1
#32
90201-15797-00
WASHER, PLATE
$7.48¢3 738
1
#33
90185-14112-00
NUT,SELF-LOCKING
$11.63¢5 813
1
#34
9Y581-47105-00
CHAIN
$171.68¢85 838
1
#35
94681-47011-00
JOINT, CHAIN(4BF)
$7.31¢3 656
1
