CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

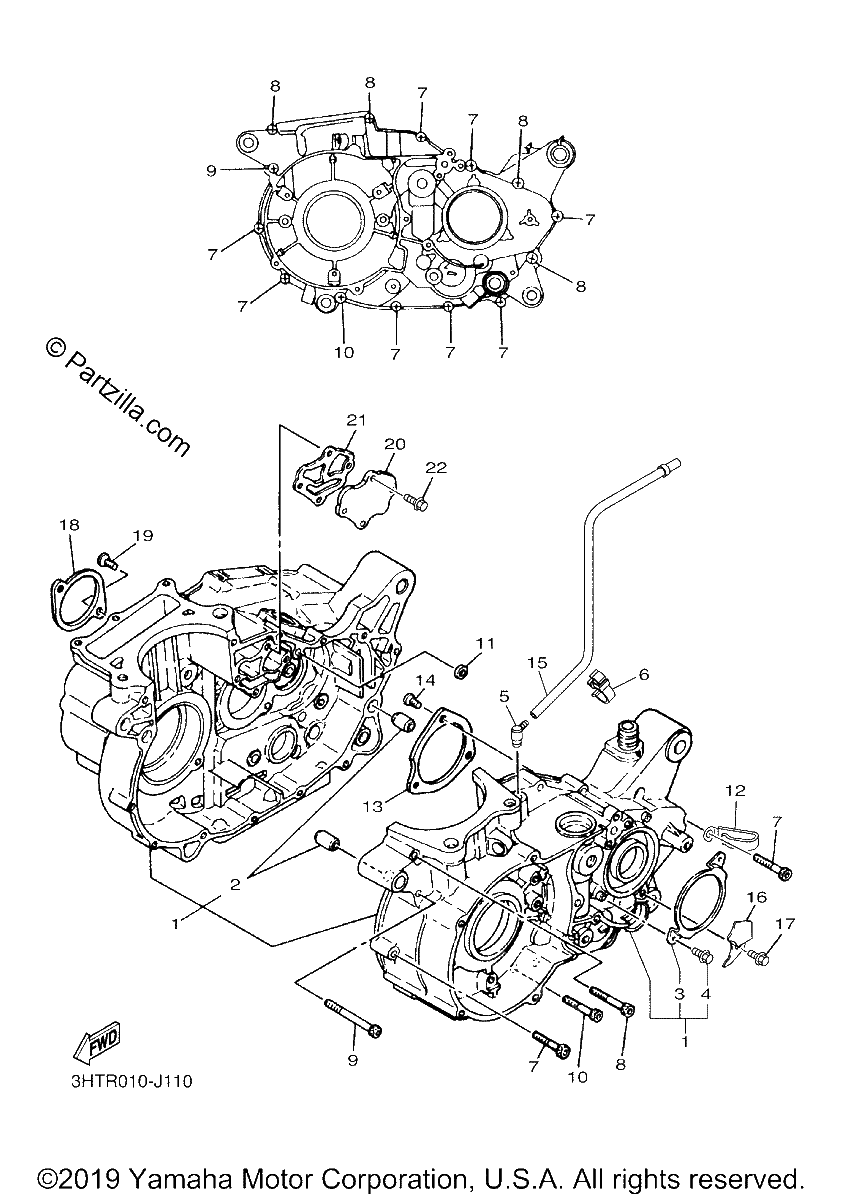

Diagrama de CRANKCASE

Repuestos

#1
3HT-15100-R9-00
CRANKCASE ASSY
$871.69¢435 844
1
#2
99530-12016-00
PIN, DOWEL
$4.52¢2 260
1
#3
583-17471-01-00
PLATE, COVER
$13.86¢6 929
1
#4
95022-06012-00
BOLT, FLANGE
$3.29¢1 644
1
#5
5UG-15371-00-00
BREATHER
$38.08¢19 038
1
#6
90464-18013-00
CLAMP
$3.14¢1 570
1
#7
91314-06035-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#8
91314-06045-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#9
91314-06065-00
BOLT, HEXAGON SOCKET HEAD
$7.30¢3 651
1
#10
91314-06055-00
BOLT, HEXAGON SOCKET HEAD
$7.45¢3 726
1
#11
90430-09121-00
GASKET
$6.36¢3 180
1
#12
90465-08277-00
CLAMP
$10.68¢5 342
1
#13
363-15381-00-00
PLATE, BEARING COVER
No Disponible
1
#14
90149-05021-00
SCREW
$3.24¢1 621
1
#15
3HT-1531A-R0-00
HOSE, BREATHER 1
$3.82¢1 909
1
#16
90465-10021-00
CLAMP
$4.43¢2 214
1
#17
95022-06012-00
BOLT, FLANGE
$3.29¢1 644
1
#18
583-15383-00-00
PLATE, BEARING COVER
$4.69¢2 346
1
#19
90151-06023-00
SCREW, COUNTERSUNK
$7.15¢3 577
1
#20
583-15426-10-00
COVER, OIL PUMP 2
$9.37¢4 686
1
#21
3HT-15466-00-00
GASKET 2
$8.49¢4 244
1
#22
95022-06016-00
BOLT, FLANGE
$3.65¢1 823
1
