CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

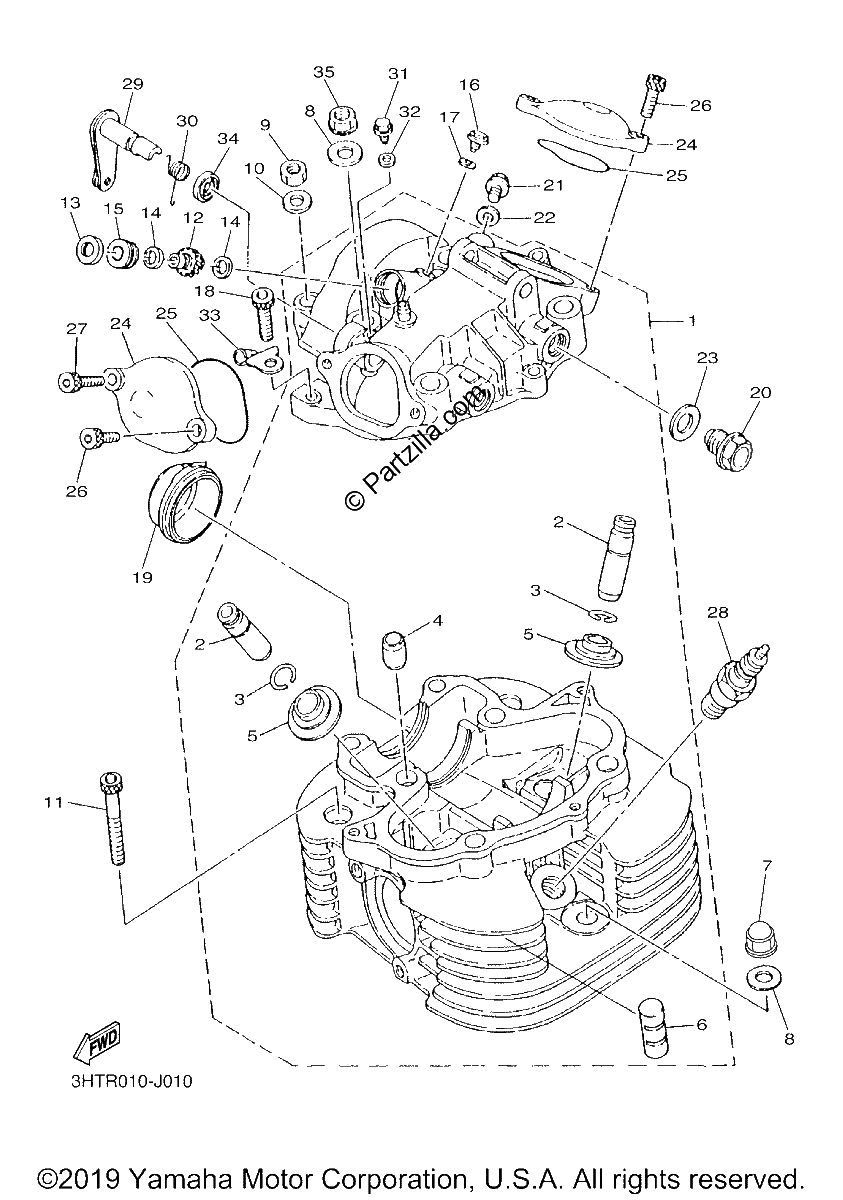

Diagrama de CYLINDER HEAD

Repuestos

#1
3HT-11101-R9-00
CYLINDER HEAD ASSY
$1248.74¢624 369
1
#2
4X7-11133-10-00
GUIDE, IN./EX. VALVE
$80.25¢40 125
1
#3
93440-14086-00
CIRCLIP
$8.21¢4 106
1
#4
99530-14016-00
PIN, DOWEL
$3.81¢1 906
1
#5
4X7-12116-00-00
SEAT, VALVE SPRING
$14.65¢7 325
1
#6
583-11127-00-00
ABSORBER 3
$8.01¢4 006
1
#7
90176-10005-00
NUT, CROWN
$3.23¢1 613
1
#8
90201-10124-00
WASHER, PLATE
$7.85¢3 925
1
#9
95302-08600-00
NUT (6L2)
$8.09¢4 044
1
#10
90201-08081-00
WASHER, PLATE
$2.14¢1 069
1
#11
91312-06055-00
BOLT
$6.55¢3 275
1
#12
1E6-17841-00-00
GEAR, DRIVEN (15T)
$42.20¢21 100
1
#13
93102-08307-00
OIL SEAL
$4.88¢2 438
1
#14
90201-08085-00
WASHER, PLATE
$7.60¢3 800
1
#15
1E6-17843-00-00
BUSH, DRIVEN GEAR OUTER
$10.81¢5 406
1
#16
90109-06276-00
BOLT
$2.50¢1 250
1
#17
90430-06014-00
GASKET
$8.25¢4 125
1
#18
91314-06025-00
BOLT, HEXAGON SOCKET HEAD
$7.94¢3 969
1
#19
2J2-11197-00-00
PLUG, VIEWER
$136.76¢68 381
1
#20
90340-14038-00
PLUG, STRAIGHT SCREW
$9.00¢4 500
1
#21
95824-08012-00
BOLT, FLANGE
No Disponible
1
#22
90430-08119-00
GASKET
$6.91¢3 456
1
#23
90430-14043-00
GASKET
$7.70¢3 850
1
#24
2J2-11186-00-00
COVER, CYLINDER HEAD SIDE 2
$17.80¢8 900
1
#25
93210-49296-00
O-RING
$19.85¢9 925
1
#26
91314-06018-00
BOLT, HEXAGON SOCKET HEAD
$7.10¢3 550
1
#27
91314-06016-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#28
BPR-6ES00-00-00
BPR6ES NGK SPLUG 4
$4.80¢2 400
1
#29
583-12288-01-00
CAM, DECOMPRESSION
$23.71¢11 856
1
#30
90508-16303-00
SPRING, TORSION
$8.60¢4 300
1
#31
90109-06276-00
BOLT
$2.50¢1 250
1
#32
90430-06014-00
GASKET
$8.25¢4 125
1
#33
583-12283-00-00
BRACKET, DECOMPRESSION
$5.34¢2 669
1
#34
93104-12054-00
OIL SEAL
$7.31¢3 656
1
#35
90179-10279-00
NUT
$7.26¢3 631
1
