CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

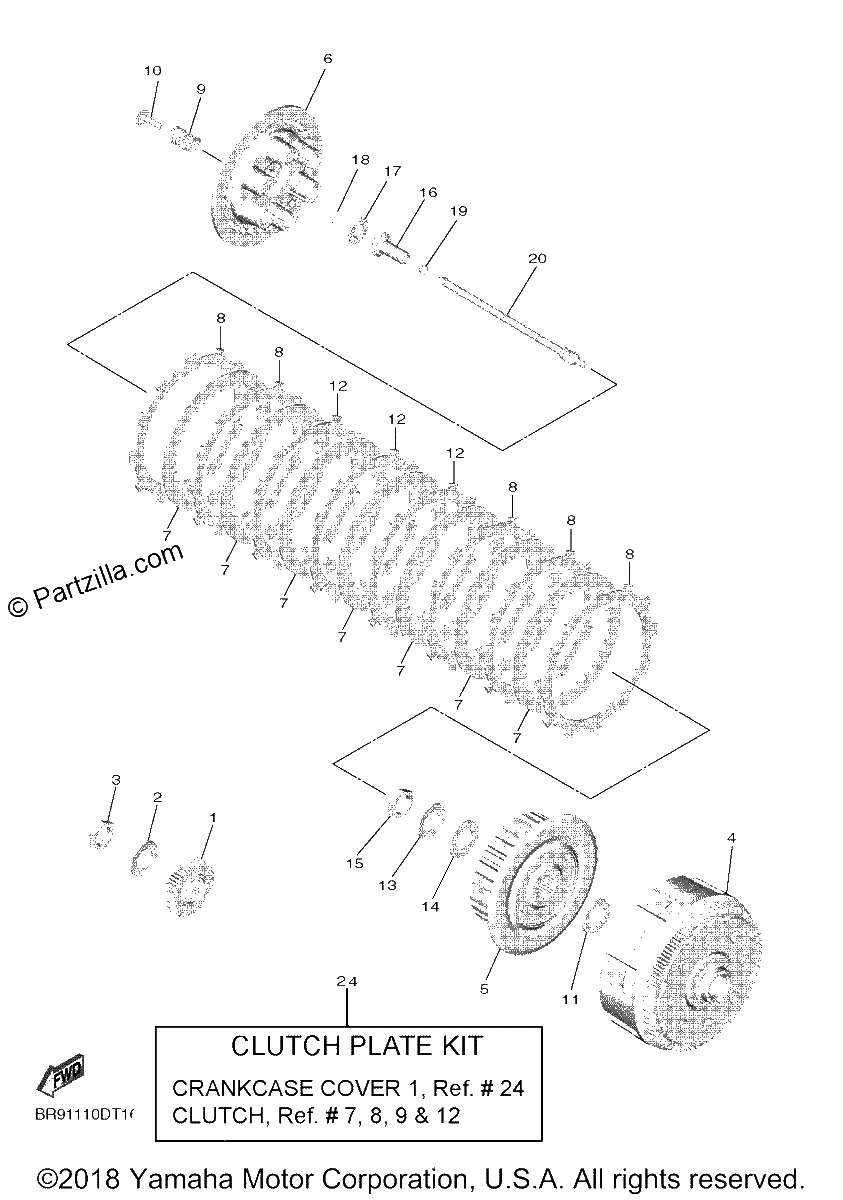

Diagrama de CLUTCH

Repuestos

#1
2S2-16111-60-00
GEAR, PRIMARY DRIVE
$160.39¢80 195
1
#2
90208-20007-00
WASHER, CONICAL SPRING
$5.99¢2 996
1
#3
90170-20211-00
NUT,HEXAGON
$4.23¢2 116
1
#4
BR9-16150-00-00
PRIMARY DRIVEN GEAR COMP.
$502.91¢251 453
1
#5
5TA-16371-20-00
BOSS, CLUTCH
$135.63¢67 816
1
#6
BR9-16351-00-00
PLATE, PRESSURE 1
$77.14¢38 571
1
#7
BR9-16324-00-00
PLATE, CLUTCH 1 (replaces 4B1-16324-00-00)
$10.23¢5 118
1
#8
5TA-16321-00-00
PLATE, FRICTION
$25.22¢12 610
1
#9
90501-240A5-00
SPRING, COMPRESSION | INCL. IN CLUTCH PLATE KIT
$6.92¢3 461
1
#10
90159-06010-00
SCREW, WITH WASHER
$7.18¢3 588
1
#11
2JN-16154-00-00
PLATE, THRUST 1
$19.87¢9 936
1
#12
5VY-16321-00-00
PLATE, FRICTION
$29.75¢14 875
1
#13
90208-20007-00
WASHER, CONICAL SPRING
$5.99¢2 996
1
#14
90201-20030-00
WASHER, PLATE
$6.73¢3 364
1
#15
90170-20211-00
NUT,HEXAGON
$4.23¢2 116
1
#16
BR9-16356-00-00
ROD, PUSH 1
$78.51¢39 255
1
#17
93340-21209-00
BEARING, TRUST
$16.02¢8 010
1
#18
93440-10085-00
CIRCLIP
$6.75¢3 375
1
#19
93511-32027-00
BALL
$6.75¢3 375
1
#20
1SL-16357-10-00
ROD, PUSH 2
$49.71¢24 857
1
#21
BR9-W001G-00-00
CLUTCH PLATE KIT | NOT SHOWN
$216.61¢108 307
1
