STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

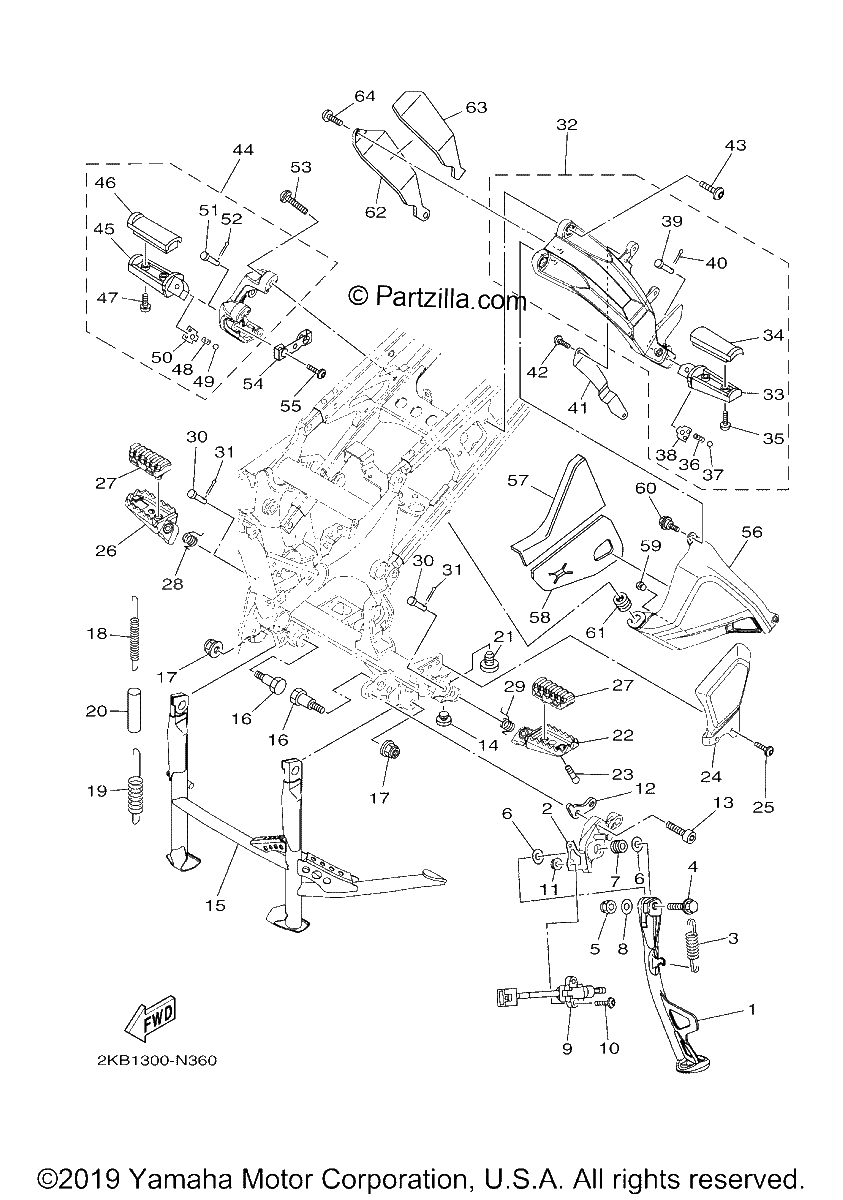

Diagrama de STAND FOOTREST

Repuestos

#1
2BS-27311-00-00
STAND, SIDE
$263.54¢131 769
1
#2
23P-27321-00-00
BRACKET, SIDE STAND
$183.13¢91 563
1
#3
23P-27316-00-00
SPRING, SIDE STAND
$21.72¢10 862
1
#4
90105-10728-00
BOLT, WASHER BASED (replaces 90105-102A6-00)
$8.92¢4 462
1
#5
90185-10012-00
NUT, SELF-LOCKING
$3.55¢1 775
1
#6
90201-10051-00
WASHER, PLATE
$8.94¢4 469
1
#7
90387-10020-00
COLLAR
$19.52¢9 763
1
#8
90201-101J1-00
WASHER, PLATE
$7.34¢3 669
1
#9
23P-82566-60-00
SWITCH, SIDE STAND
$76.61¢38 306
1
#10
92017-05020-00
BOLT, BUTTON HEAD
$3.06¢1 531
1
#11
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$8.16¢4 081
1
#12
23P-27322-00-00
WASHER
$7.39¢3 694
1
#13
91317-10030-00
BOLT
$8.16¢4 081
1
#14
128-27114-00-00
STOPPER, MAIN STAND
$7.88¢3 938
1
#15
23P-27111-00-00
STAND, MAIN
$346.91¢173 456
1
#16
90109-10057-00
BOLT
$15.40¢7 700
1
#17
95602-10200-00
NUT, U FLANGE
$2.73¢1 363
1
#18
23P-27116-00-00
SPRING, MAIN STAND
$10.60¢5 300
1
#19
23P-27116-10-00
SPRING, MAIN STAND
$37.73¢18 863
1
#20
90445-19003-00
HOSE
$6.47¢3 238
1
#21
23P-27114-00-00
STOPPER, MAIN STAND
$4.19¢2 094
1
#22
23P-27451-00-00
FOOTREST
$60.65¢30 325
1
#23
90109-08177-00
BOLT
$7.09¢3 544
1
#24
23P-27445-10-00
PLATE 1
$53.67¢26 838
1
#25
92012-06012-00
BOLT, BUTTON HEAD
$2.97¢1 487
1
#26
23P-27461-00-00
FOOTREST
$53.90¢26 950
1
#27
23P-27413-00-00
COVER, FOOTREST
$22.31¢11 156
1
#28
90508-20051-00
SPRING, TORSION
$3.61¢1 806
1
#29
90508-20041-00
SPRING, TORSION
$4.01¢2 006
1
#30
91702-08040-00
PIN, CLEVIS
$4.84¢2 419
1
#31
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
1
#32
23P-27430-10-00
REAR FOOTREST ASSY 1
$272.16¢136 081
1
#33
5RT-27431-00-00
FOOTREST, REAR 1
$35.72¢17 862
1
#34
4D9-27413-00-00
COVER, FOOTREST
$12.56¢6 281
1
#35
98507-05014-00
SCREW, PAN HEAD
$6.26¢3 131
1
#36
90501-12743-00
SPRING, COMPRESSION
$3.81¢1 906
1
#37
93501-04011-00
BALL
$7.46¢3 731
1
#38
5VX-27437-00-00
WASHER, SPECIAL
$7.99¢3 994
1
#39
91702-08040-00
PIN, CLEVIS
$4.84¢2 419
1
#40
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
1
#41
23P-27412-00-00
BRACKET, FOOTREST 1
$10.77¢5 387
1
#42
92012-05008-00
BOLT, BUTTON HEAD
$2.79¢1 394
1
#43
90109-085G6-00
BOLT
$2.26¢1 131
1
#44
23P-27440-10-00
REAR FOOTREST ASSY 2
$272.16¢136 081
1
#45
5RT-27441-00-00
FOOTREST, REAR 2
$36.06¢18 031
1
#46
4D9-27413-00-00
COVER, FOOTREST
$12.56¢6 281
1
#47
98507-05014-00
SCREW, PAN HEAD
$6.26¢3 131
1
#48
90501-12743-00
SPRING, COMPRESSION
$3.81¢1 906
1
#49
93501-04011-00
BALL
$7.46¢3 731
1
#50
5VX-27437-00-00
WASHER, SPECIAL
$7.99¢3 994
1
#51
91702-08040-00
PIN, CLEVIS
$4.84¢2 419
1
#52
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
1
#53
90109-085G6-00
BOLT
$2.26¢1 131
1
#54
2KB-27333-00-00
BRKT
$18.10¢9 050
1
#55
92012-08014-00
BOLT, BUTTON HEAD
$7.56¢3 781
1
#56
23P-27491-00-00
PROTECTOR
$29.08¢14 538
1
#57
23P-2749A-00-00
SEAT 3
$22.09¢11 044
1
#58
23P-2749B-00-00
SEAT 4
$16.27¢8 137
1
#59
1J7-21717-00-00
DAMPER
$7.08¢3 538
1
#60
90109-06264-00
BOLT
$5.15¢2 575
1
#61
90480-12325-00
GROMMET
$8.22¢4 113
1
#62
2BS-27422-00-00
BRACKET, FOOTREST 2
$11.90¢5 950
1
#63
2BS-2175P-00-00
SEAT 4
$9.11¢4 556
1
#64
92012-08012-00
BOLT, BUTTON HEAD
$7.56¢3 781
1
