INTAKE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

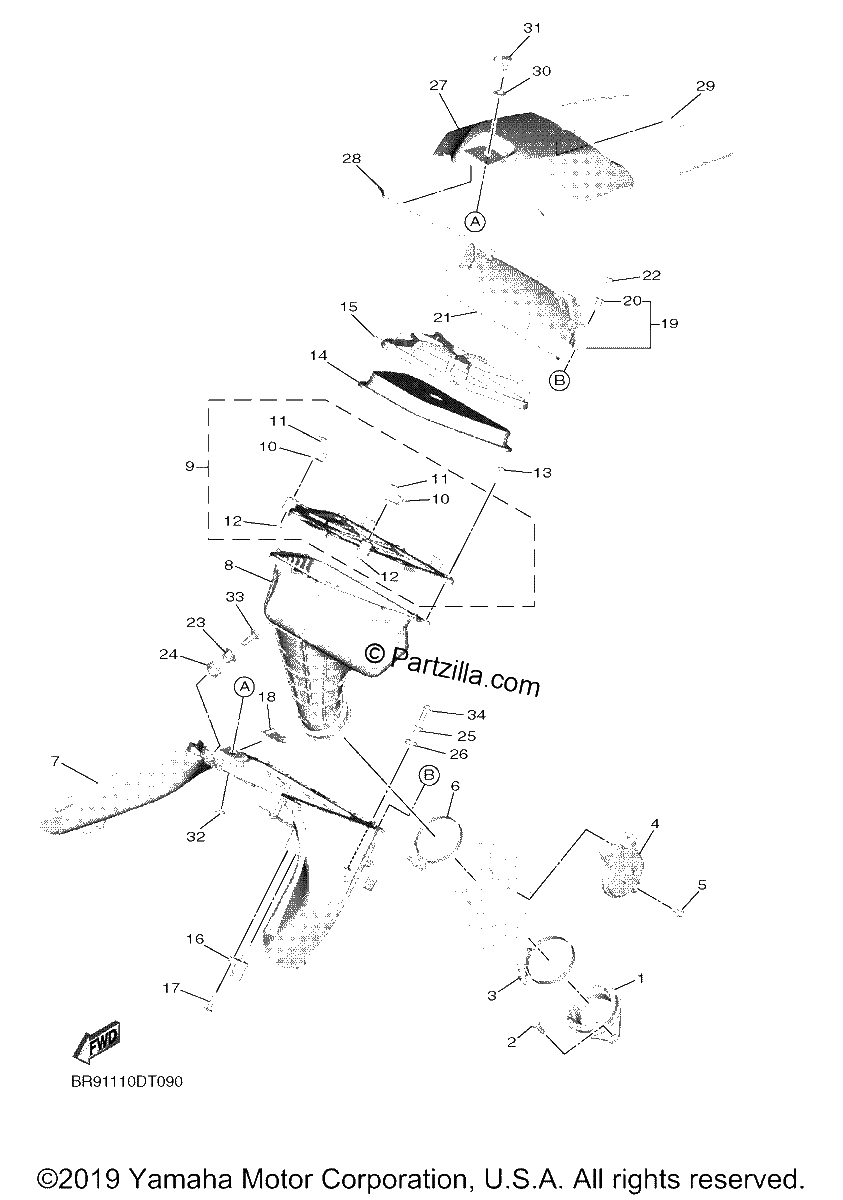

Diagrama de INTAKE

Repuestos

#1
BR9-13597-00-00
JOINT, CARBURETOR 3
$59.50¢29 751
1
#2
91314-06020-00
BOLT (3JB) (replaces 91312-06020-00)
$2.24¢1 121
1
#3
90450-60004-00
HOSE CLAMP ASSY
$16.09¢8 044
1
#4
BR9-14293-00-00
COVER 1
$21.83¢10 914
1
#5
90110-05066-00
BOLT, HEXAGON SOCKET HEAD
$7.11¢3 553
1
#6
90450-58006-00
HOSE CLAMP ASSY
$20.61¢10 304
1
#7
BR9-14411-00-00
CASE, AIR CLEANER 1
$109.92¢54 958
1
#8
BR9-14453-00-00
JOINT, AIR CLEANER 1
$113.64¢56 821
1
#9
BR9-14459-00-00
Holder, Guide
$61.46¢30 728
1
#10
8GC-14406-00-00
HINGE
$8.11¢4 054
1
#11
90267-32013-00
Rivet, Blind
$2.16¢1 081
1
#12
90201-03008-00
WASHER, plate
$6.82¢3 410
1
#13
98580-05014-00
SCREW, PAN HEAD
$8.04¢4 019
1
#14
BR9-14451-10-00
ELEMENT, AIR CLEANER (replaces BR9-14451-00-00)
$44.33¢22 166
1
#15
BR9-14458-00-00
Guide
$9.82¢4 910
1
#16
5YU-85886-00-00
SENSOR, AIR TEMPERATURE
$32.97¢16 485
1
#17
97702-50520-00
SCREW, TAPPING
$0.30¢150
1
#18
4XV-2177L-01-00
PLATE, SPRING
$6.80¢3 398
1
#19
BR9-14422-00-00
CAP, CLEANER CASE 2
$13.35¢6 676
1
#20
90387-05055-00
Collar
$1.98¢989
1
#21
BR9-14462-00-00
SEAL
$3.43¢1 713
1
#22
98580-05014-00
SCREW, PAN HEAD
$8.04¢4 019
1
#23
BR9-14449-00-00
Collar
$10.72¢5 359
1
#24
90480-01028-00
Grommet
$6.83¢3 415
1
#25
90387-06273-00
Collar
$3.01¢1 507
1
#26
90480-12237-00
GROMMET
$2.14¢1 070
1
#27
BR9-14412-10-00
CAP, cleaner case 1
$34.36¢17 181
1
#27
BR9-14412-00-00
CAP, cleaner case 1
$25.24¢12 621
1
#28
1SL-14452-00-00
SEAL
$7.04¢3 519
1
#29
BR9-14457-00-00
SEAL
$4.05¢2 024
1
#30
90387-07045-00
COLLAR
$6.55¢3 278
1
#31
1SL-28386-00-00
HEAD
$34.79¢17 394
1
#32
5TJ-21757-00-00
WASHER, SPECIAL 1
$7.04¢3 519
1
#33
90105-06203-00
BOLT, FLANGE
$1.98¢989
1
#34
90105-06696-00
BOLT, FLANGE
$6.88¢3 439
1
