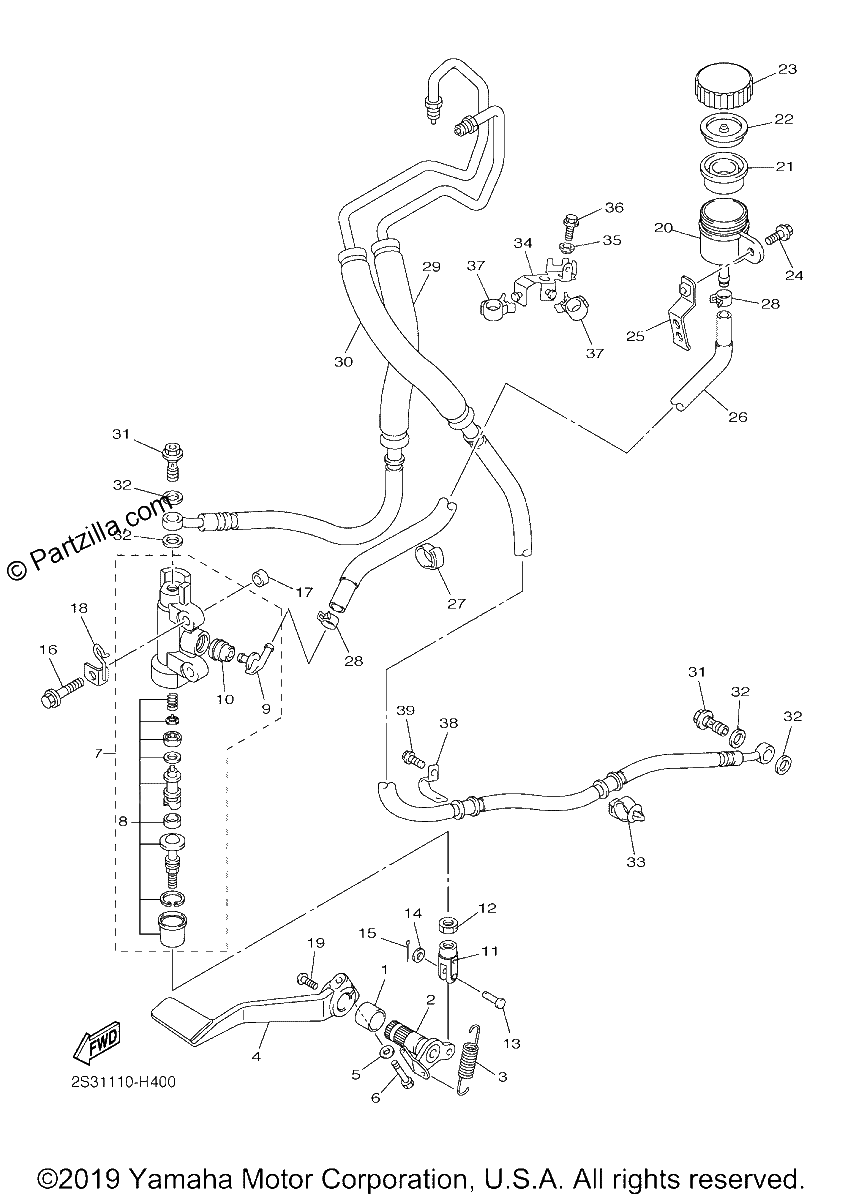

REAR MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
BUSH, FORMED
$10.27¢5 135
#2
SHAFT, BRAKE PEDAL
$67.31¢33 655
#3
SPRING, TENSION
$8.76¢4 382
#4
PEDAL, BRAKE
$98.23¢49 116
#5
WASHER, PLATE
$3.13¢1 564
#6
BOLT
$6.52¢3 260
#7
REAR MASTER CYLINDER ASSY.
$156.84¢78 419
#8
CYLINDER KIT, MASTER
$120.42¢60 208
#9
JOINT
$3.90¢1 949
#10
O-RING
$10.48¢5 238
#11
JOINT
$40.88¢20 441
#12
NUT
$6.89¢3 444
#13
PIN,CLEVIS (replaces 91702-06018-00)
$4.91¢2 455
#14
WASHER, PLAIN
$0.89¢443
#15
PIN, COTTER
$6.74¢3 370
#16
BOLT
$2.91¢1 455
#17
COLLAR
$5.78¢2 892
#18
HOLDER
No Disponible
#19
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
#20
TANK, RESERVOIR
$15.50¢7 751
#21
DIAPHRAGM, RESERVOIR
$20.00¢9 999
#22
BUSH, DIAPHRAGM
$7.38¢3 691
#23
CAP, RESERVOIR
$26.16¢13 081
#24
BOLT, WITH WASHER
$7.31¢3 657
#25
HOLDER, RESERVE TANK
No Disponible
#26
HOSE, RESERVOIR
$64.95¢32 476
#27
CLAMP
$6.87¢3 433
#28
CLIP,SCISSOR (replaces 90467-12053-00)
$5.75¢2 875
#29
HOSE, BRAKE 4
$98.97¢49 485
#30
HOSE, BRAKE 5
$163.44¢81 719
#31
BOLT, UNION
$4.06¢2 030
#32
GASKET
$7.72¢3 858
#33
CLAMP
$5.89¢2 944
#34
HOLDER, BRAKE HOSE
No Disponible
#35
COLLAR
$6.87¢3 433
#36
BOLT, FLANGE
$3.29¢1 644
#37
CLAMP
$6.75¢3 375
#38
HOLDER,WIRE 1
$7.98¢3 991
#39
BOLT, FLANGE
$5.97¢2 984
