CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

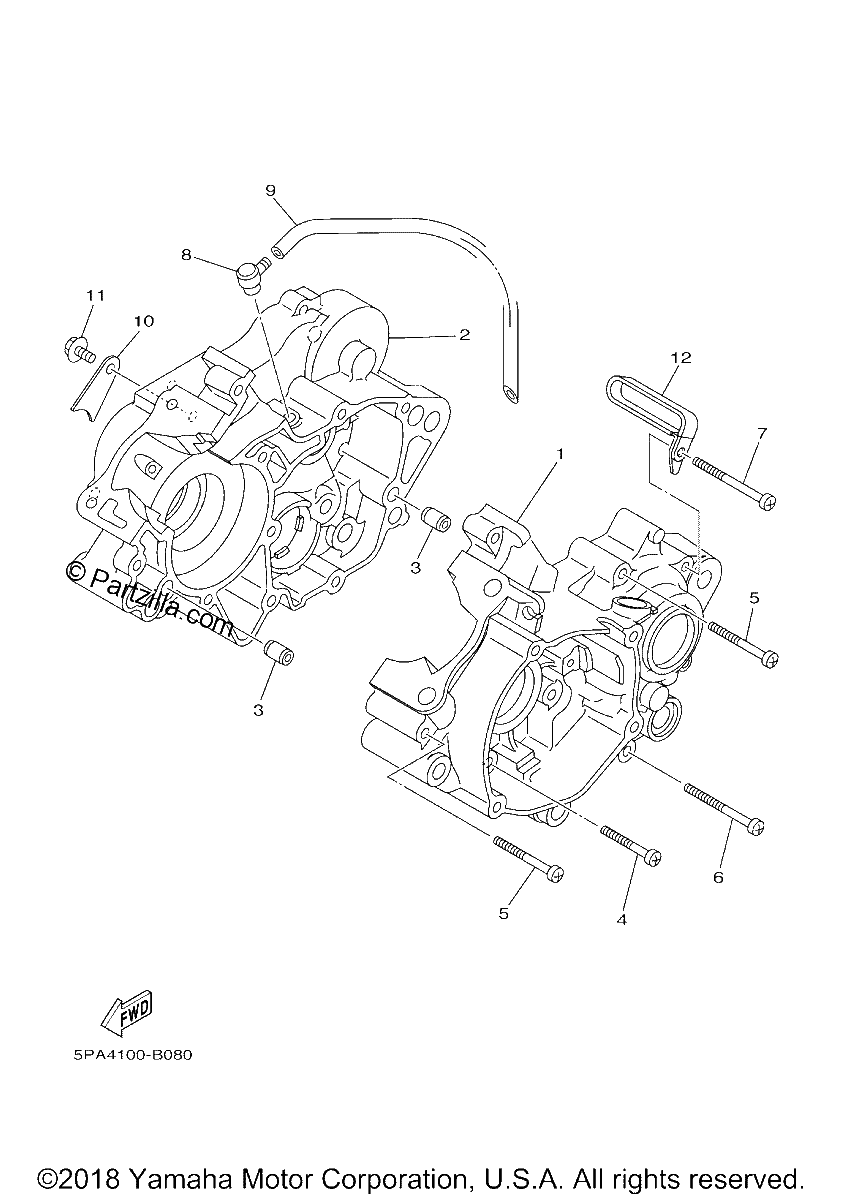

Diagrama de CRANKCASE

Repuestos

#1
5PA-15111-00-00
CRANKCASE 1
$608.34¢304 169
1
#2
5PA-15121-10-00
CRANKCASE 2
$803.21¢401 603
1
#3
99530-10114-00
PIN,DOWEL
$2.50¢1 248
1
#4
98502-06040-00
SCREW, PAN HEAD
$2.13¢1 064
1
#5
98580-06550-00
SCREW, PAN HEAD
$6.75¢3 375
1
#6
98507-06060-00
SCREW, PAN HEAD
$6.14¢3 070
1
#7
98502-06070-00
SCREW, PAN HEAD
$19.00¢9 499
1
#8
353-13115-01-00
CONNECTOR, SUCTION PIPE
$5.76¢2 881
1
#9
90445-08684-00
HOSE
$3.68¢1 840
1
#10
5PA-15118-00-00
HOLDER
$6.51¢3 254
1
#11
95022-08012-00
BOLT, FLANGE
$10.41¢5 204
1
#12
90461-10136-00
HOLDER,CLCH CABLE
$22.08¢11 040
1
