RADIATOR HOSE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

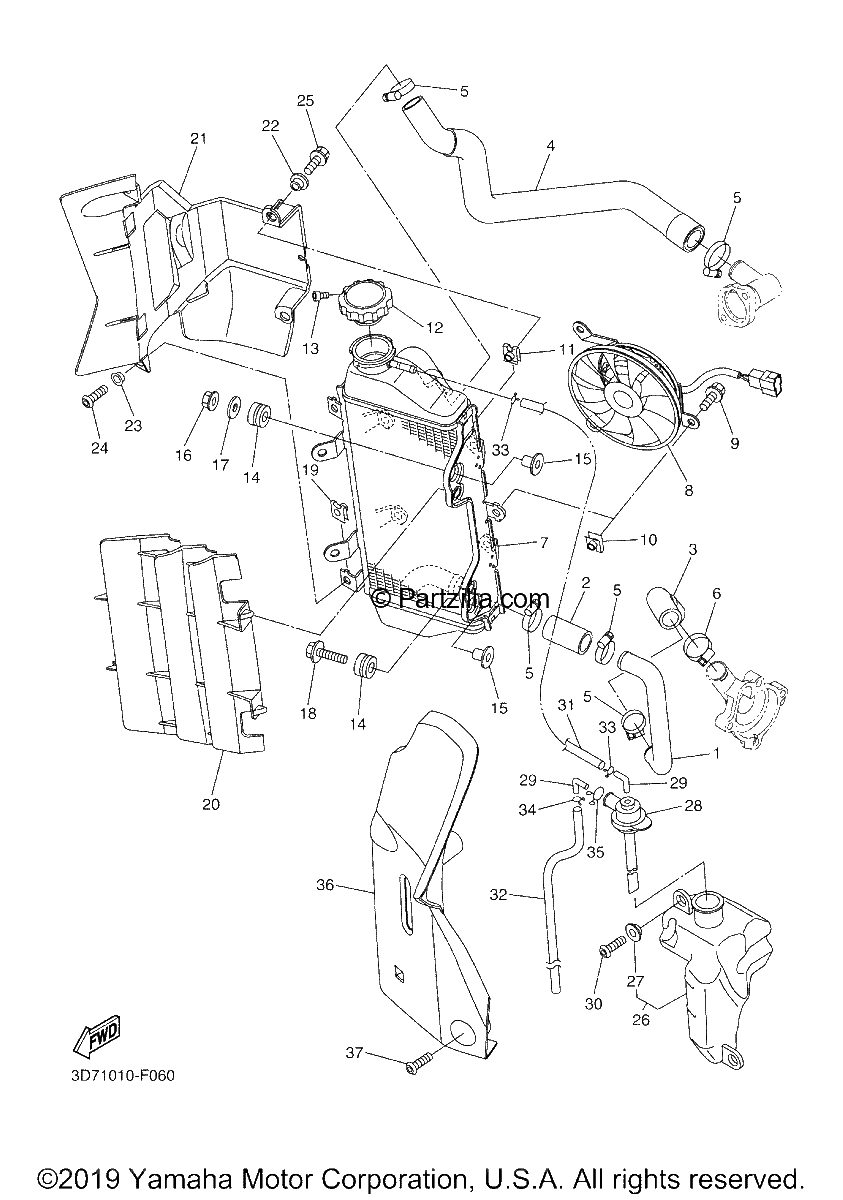

Diagrama de RADIATOR HOSE

Repuestos

#1
3D7-12481-00-00
PIPE 1
$40.93¢20 463
1
#2
3D7-12577-00-00
HOSE 2
$6.19¢3 094
1
#3
3D7-12578-00-00
HOSE 3
$11.34¢5 669
1
#4
3D7-12579-00-00
HOSE 4
$45.19¢22 594
1
#5
90450-22M14-00
HOSE CLAMP ASSY
$16.43¢8 213
1
#6
90450-28001-00
HOSE CLAMP ASSY
$14.94¢7 469
1
#7
3D7-12461-10-00
RADIATOR COMP
$701.00¢350 500
1
#8
3D7-12405-00-00
BLOWER ASSY
$382.08¢191 038
1
#9
5GJ-12675-00-00
BOLT, BLOWER HOLDING
$7.94¢3 969
1
#10
5SL-12671-00-00
NUT 1
$6.19¢3 094
1
#11
5SL-12671-00-00
NUT 1
$6.19¢3 094
1
#12
3D7-12462-00-00
Cap, Radiator
$46.15¢23 075
1
#13
91317-03006-00
bolt
$8.79¢4 394
1
#14
90480-15010-00
GROMMET
$4.28¢2 138
1
#15
90387-0614M-00
COLLAR
$9.83¢4 913
1
#16
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
#17
90201-06033-00
WASHER, PLATE
$3.26¢1 631
1
#18
90119-06181-00
BOLT, WITH WASHER
$7.34¢3 669
1
#19
90183-061A3-00
NUT, SPRING
$8.77¢4 387
1
#20
3D7-2172A-00-00
PANEL 1
$50.59¢25 294
1
#21
3D7-2137Y-00-00
GUIDE, AIR
$57.33¢28 663
1
#22
90387-06130-00
Collar
$8.63¢4 313
1
#23
90387-06180-00
COLLAR
$6.55¢3 275
1
#24
90149-06105-00
SCREW
$5.26¢2 631
1
#25
95817-06016-00
BOLT, FLANGE
$1.79¢894
1
#26
3D7-21871-00-00
TANK, RECOVERY
$41.31¢20 656
1
#27
90387-08079-00
COLLAR
$8.92¢4 462
1
#28
3D7-21875-00-00
CAP
$38.39¢19 194
1
#29
26H-21828-00-00
ELBOW
$26.14¢13 069
1
#30
90149-06298-00
SCREW,SPEC'L SHAPE
$5.07¢2 537
1
#31
3D7-21816-00-00
PIPE 1
$2.10¢1 050
1
#32
91A11-05056-00
TUBE, FLEXUBLE
$4.90¢2 450
1
#33
90467-08003-00
CLIP
$7.50¢3 750
1
#34
90467-090A2-00
Clip
$2.97¢1 487
1
#35
90467-10M04-00
CLIP
$7.29¢3 644
1
#36
3D7-2175E-01-00
PANEL, INNER
$33.56¢16 781
1
#37
90149-06298-00
SCREW,SPEC'L SHAPE
$5.07¢2 537
1
