FRONT BRAKE CALIPER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

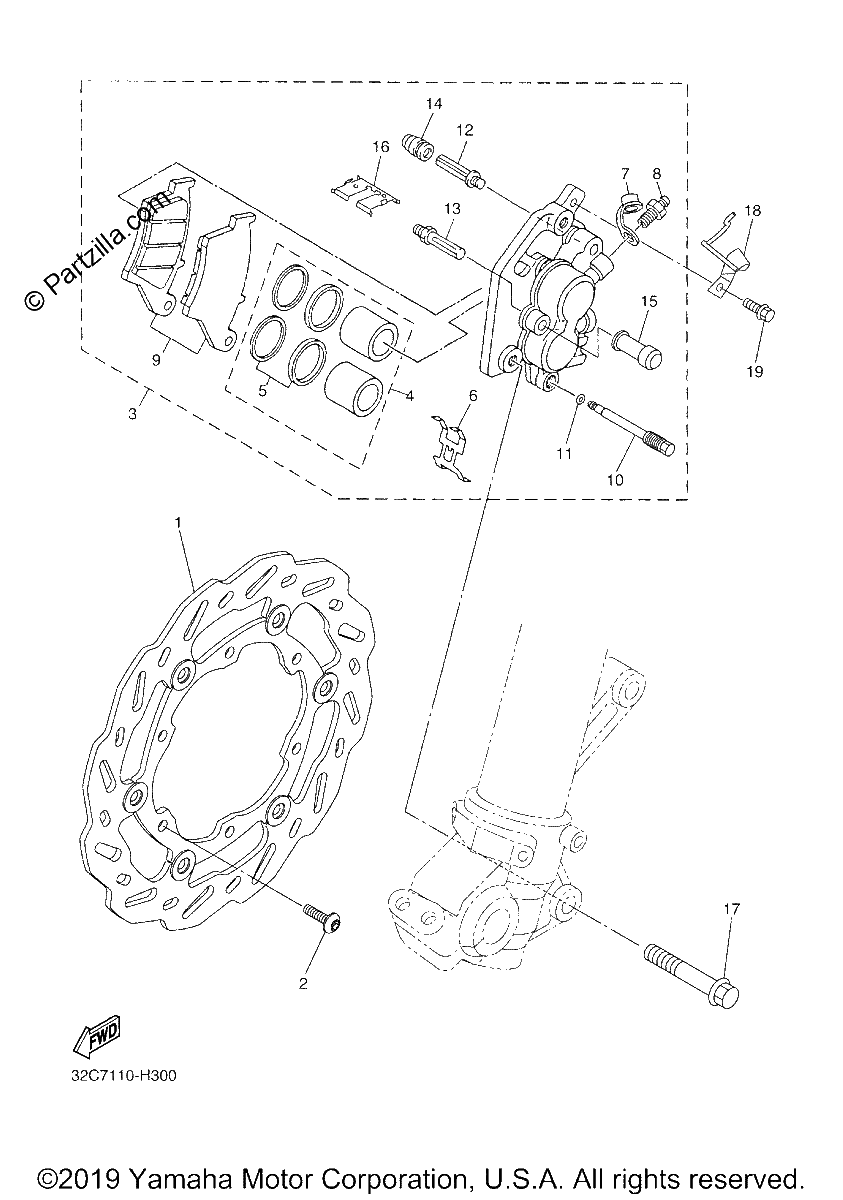

Diagrama de FRONT BRAKE CALIPER

Repuestos

#1
3D7-2581T-02-00
DISK BRAKE ASSY (replaces 3D7-2581T-01-00)
$224.13¢112 063
1
#2
90149-06228-00
SCREW,SPEC'L SHAPE
$7.48¢3 738
1
#3
32D-2580T-00-00
CALIPER ASSY (LEFT)
$373.89¢186 944
1
#4
5UN-W0057-00-00
PISTON ASSY, CALIPER
$75.72¢37 863
1
#5
3JD-25803-00-00
CALIPER SEAL KIT (replaces 3JD-W0047-00-00)
$22.19¢11 094
1
#6
5DH-25919-00-00
SUPPORT, PAD
$21.13¢10 563
1
#7
36Y-W0048-00-00
BLEED SCREW KIT
$10.14¢5 069
1
#8
36Y-W0048-00-00
BLEED SCREW KIT
$10.14¢5 069
1
#9
32D-W0045-00-00
Brake Pad Kit
$53.90¢26 950
1
#10
3D7-25933-00-00
WASHER, PAD PIN This item has been discontinued and may not be available. Contact us for more information.
$23.56¢11 781
1
#11
3P6-25925-00-00
Clip
$18.31¢9 156
1
#12
3SP-25926-51-00
BOLT
$13.70¢6 850
1
#13
3SP-25914-51-00
PIN, SLIDE
$4.68¢2 338
1
#14
3JD-25917-00-00
BOOT, CALIPER
$8.97¢4 488
1
#15
1UY-25937-51-00
BOOT 2
$14.65¢7 325
1
#16
5DH-25849-00-00
RETAINER, CALIPER
$11.60¢5 800
1
#17
90105-08158-00
Bolt, Flange
$5.30¢2 650
1
#18
3D7-25875-00-00
HOLDER, brake hose 1
$24.55¢12 275
1
#19
95027-06010-00
BOLT,FLANGE(4MY)
$2.95¢1 475
1
