ELECTRICAL 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

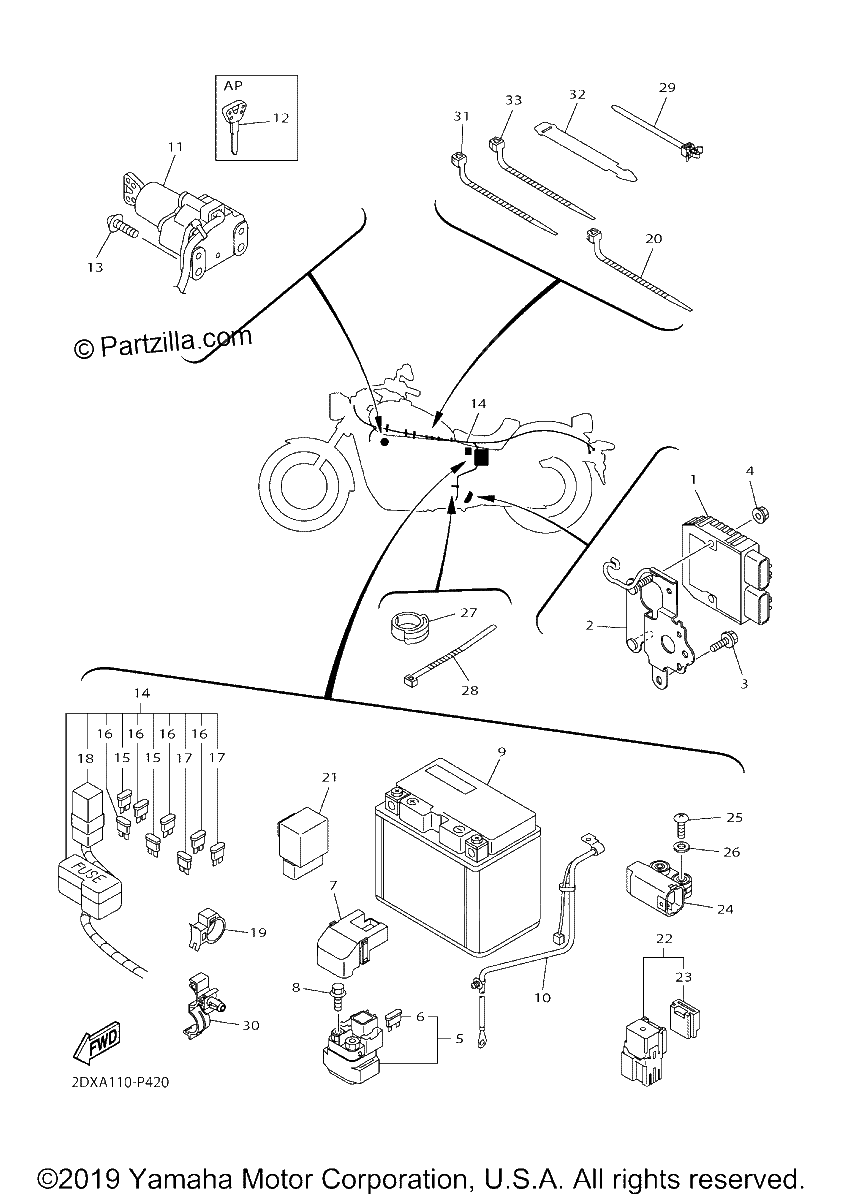

Diagrama de ELECTRICAL 2

Repuestos

#1
1D7-81960-01-00
RECTIFIER REGULATOR ASSY
$308.43¢154 215
1
#2
1TP-2128A-00-00
BRACKET, REGULATOR
$34.26¢17 129
1
#3
95817-06014-00
BOLT, FLANGE (replaces 95802-06014-00)
$2.44¢1 219
1
#4
95707-06500-00
NUT, FLANGE
$0.86¢431
1
#5
5S7-81940-00-00
STARTER RELAY ASSY (RC19-089A)
$108.76¢54 378
1
#6
42X-82151-00-00
FUSE (10A-BL)
$2.43¢1 213
1
#7
5SL-82119-10-00
COVER, LEAD WIRE
$4.45¢2 225
1
#8
95022-06008-00
BOLT, FLANGE
$6.87¢3 433
1
#9
YTZ-14S00-00-00
YTZ14S YUASA BATTER (replaces 2D1-82100-00-00)
$312.28¢156 141
1
#10
1TP-82116-00-00
WIRE, MINUS LEAD
$33.15¢16 577
1
#11
1TP-82510-00-00
MAIN SWITCH ASSY
$149.67¢74 836
1
#12
4BH-82511-09-00
BLANK KEY | AP
$26.78¢13 392
1
#13
90149-06188-00
SCREW
$7.11¢3 553
1
#14
BP6-82590-00-00
WIRE HARNESS ASSY
$785.44¢392 719
1
#15
67F-82151-50-00
FUSE (15A)
$4.08¢2 041
1
#16
5JJ-82151-00-00
FUSE (7.5A-BL)
$6.51¢3 254
1
#17
5JJ-82151-20-00
FUSE (20A-BL)
$7.01¢3 507
1
#18
JR9-82151-00-00
SLOW BLOW FUSE
$10.55¢5 273
1
#19
90464-20191-00
Clamp
$8.06¢4 031
1
#20
1UA-82591-00-00
BAND
$4.52¢2 260
1
#21
5VK-81950-31-00
RELAY ASSY (replaces 5VK-81950-30-00)
$58.82¢29 411
1
#22
1TP-81950-00-00
RELAY ASSY (1TP-00)
$14.34¢7 170
1
#23
5EA-81952-00-00
HOLDER, RELAY
$7.38¢3 691
1
#24
5VU-82576-01-00
SENSOR, LEAN ANGLE
$94.59¢47 294
1
#25
90160-04009-00
SCREW, ROUND TAPPING
$5.89¢2 944
1
#26
90201-04030-00
WASHER, PLATE
$1.66¢828
1
#27
90464-13227-00
Clamp
$7.24¢3 622
1
#28
90464-36005-00
CLAMP
$1.10¢552
1
#29
90464-14006-00
CLAMP
$4.83¢2 415
1
#30
90464-16012-00
Clamp
$5.93¢2 967
1
#31
90464-15195-00
CLAMP
$3.04¢1 518
1
#32
1TP-82591-00-00
BAND
$3.82¢1 909
1
#33
90464-15195-00
CLAMP
$3.04¢1 518
1
