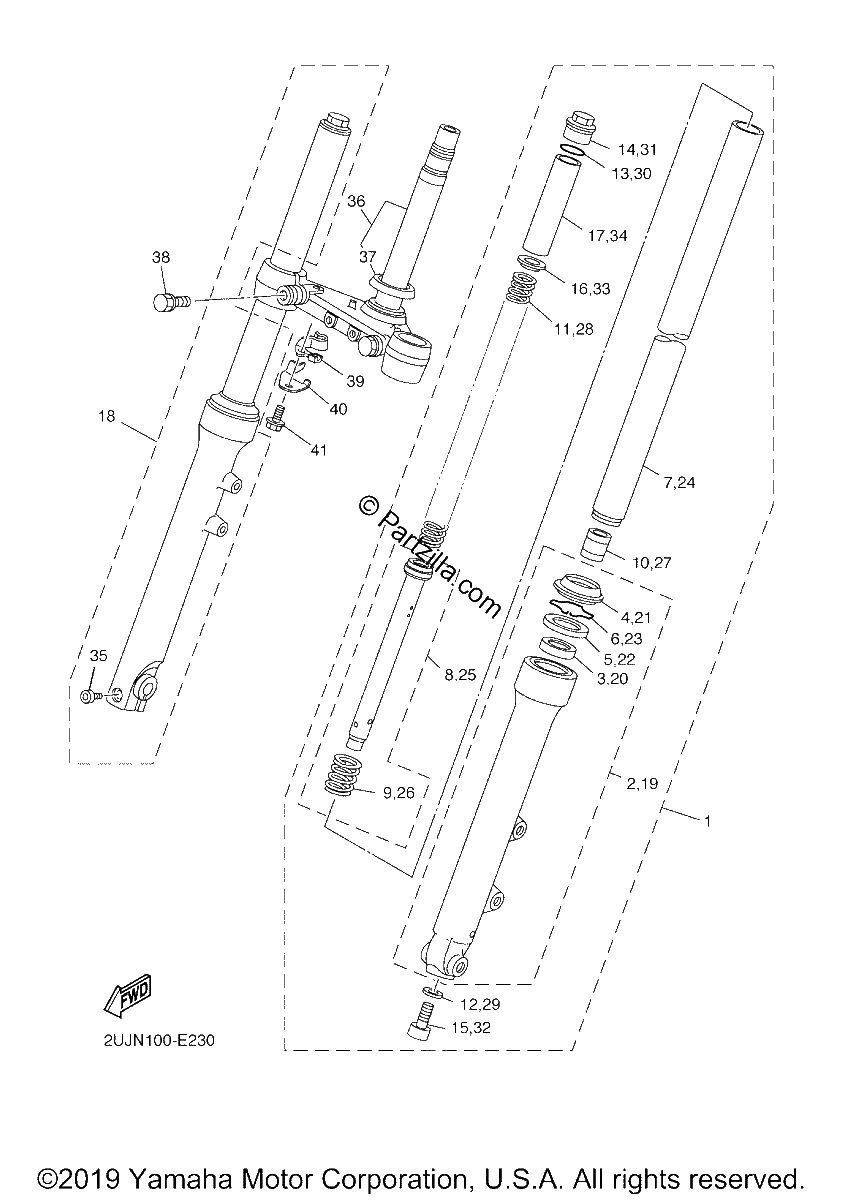

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$746.68¢373 342
#2
TUBE, OUTER (L.H)
$263.63¢131 813
#3
METAL, SLIDE 1
$26.46¢13 231
#4
SEAL, DUST
$27.53¢13 766
#5
OIL SEAL
$19.84¢9 919
#6
RING, SNAP
$8.26¢4 129
#7
INNER TUBE COMP. 1
$177.27¢88 636
#8
CYLINDER COMP., FRONT FORK
$79.58¢39 790
#9
SPRING, REBOUND
No Disponible
#10
. .Spindle, Taper
$17.35¢8 677
#11
SPRING, FRONT FORK
$33.15¢16 577
#12
GASKET | (KYB)
$15.72¢7 860
#13
O-RING
$8.26¢4 129
#14
BOLT, CAP
$45.40¢22 701
#15
BOLT, HEXAGON SOCKET HEAD
$8.37¢4 186
#16
WASHER, SPRING UPPER
$5.82¢2 909
#17
SPACER
No Disponible
#18
FRONT FORK ASSY (R.H)
$476.24¢238 119
#19
TUBE, OUTER (RIGHT)
$206.09¢103 046
#20
METAL, SLIDE 1
$26.46¢13 231
#21
SEAL, DUST
$27.53¢13 766
#22
OIL SEAL
$19.84¢9 919
#23
RING, SNAP
$8.26¢4 129
#24
INNER TUBE COMP. 1
$177.27¢88 636
#25
CYLINDER COMP., FRONT FORK
$79.58¢39 790
#26
SPRING, REBOUND
No Disponible
#27
. .Spindle, Taper
$17.35¢8 677
#28
SPRING, FRONT FORK
$33.15¢16 577
#29
GASKET | (KYB)
$15.72¢7 860
#30
O-RING
$8.26¢4 129
#31
BOLT, CAP
$45.40¢22 701
#32
BOLT, HEXAGON SOCKET HEAD
$8.37¢4 186
#33
WASHER, SPRING UPPER
$5.82¢2 909
#34
SPACER
No Disponible
#35
BOLT, HEXAGON SOCKET HEAD
$2.70¢1 351
#36
UNDER BRACKET COMP.
$233.52¢116 759
#37
SEAL, DUST
$8.52¢4 261
#38
BOLT 1
$4.30¢2 151
#39
HOLDER, BRAKE HOSE
$16.38¢8 188
#40
STOPPER, 1
$4.15¢2 076
#41
BOLT,FLANGE (replaces 95827-06010-00)
$4.28¢2 139
