EXHAUST

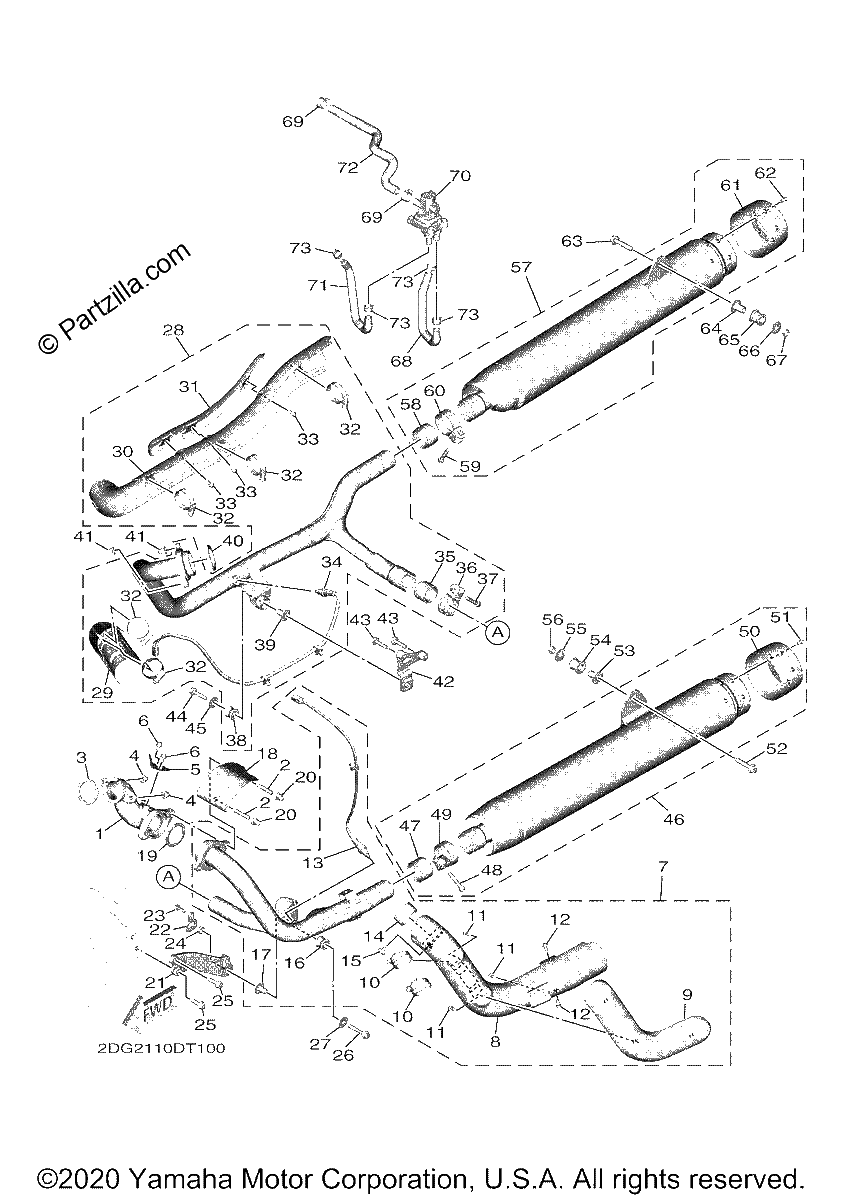

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
JOINT, EXHAUST 1
$209.65¢104 823
#2
BOLT, STUD
$5.13¢2 565
#3
GASKET, EXHAUST PIPE
$22.10¢11 051
#4
NUT, SELF-LOCKING
$9.29¢4 646
#5
PLATE, SILENCER 4
$10.75¢5 376
#6
BOLT,WITH WASHER
$3.71¢1 857
#7
EXHAUST PIPE ASSY 1
$698.04¢349 019
#8
PROTECTOR, MUFFLER 1
$237.68¢118 841
#9
PROTECTOR, MUFFLER 2
$184.45¢92 224
#10
HOSE CLAMP ASSY
$21.27¢10 638
#11
BOLT, FLANGE
$5.97¢2 984
#12
Bolt, Flange
$4.02¢2 012
#13
Sensor, Oxygen
$175.82¢87 912
#14
GASKET, MUFFLER
$32.97¢16 485
#15
BOLT,HEX. SOCKET BUTTON
$1.32¢661
#16
DAMPER, MUFFLER
$13.48¢6 739
#17
COLLAR
$9.33¢4 663
#18
COVER, EXHAUST
$81.78¢40 888
#19
GASKET, EXHAUST PIPE
$22.10¢11 051
#20
NUT, CROWN
$3.16¢1 581
#21
PLATE, 5
$29.29¢14 645
#22
BRACKET, 4-1
$5.75¢2 875
#23
BOLT, FLANGE
$6.75¢3 375
#24
NUT, FLANGE
$0.91¢454
#25
BOLT, FLANGE
$6.75¢3 375
#26
BOLT, FLANGE
$4.31¢2 156
#27
WASHER, PLATE
$6.82¢3 410
#28
EXHAUST PIPE ASSY 2
$882.04¢441 019
#29
PROTECTOR, MUFFLER 3
$176.16¢88 078
#30
PROTECTOR, MUFFLER 4
$374.80¢187 398
#31
PROTECTOR, SILENCER
$374.80¢187 398
#32
HOSE CLAMP ASSY
$21.27¢10 638
#33
BOLT, FLANGE
$5.97¢2 984
#34
Sensor, Oxygen
$208.14¢104 069
#35
GASKET, SILENCER
$15.16¢7 578
#36
BAND, MUFFLER
$20.86¢10 431
#37
BOLT (3JP)
$5.75¢2 875
#38
DAMPER, MUFFLER
$13.48¢6 739
#39
COLLAR
$9.33¢4 663
#40
GASKET, EXHAUST PIPE
$22.10¢11 051
#41
NUT, CROWN
$3.16¢1 581
#42
STAY, EXHAUST PIPE 2
$25.75¢12 874
#43
BOLT, FLANGE
$6.75¢3 375
#44
BOLT,FLANGE (replaces 90105-08108-00)
$7.30¢3 651
#45
WASHER, PLATE
$6.82¢3 410
#46
MUFFLER ASSY 1
$846.39¢423 194
#47
GASKET, SILENCER
$14.66¢7 331
#48
BOLT, HEXAGON SOCKET HEAD
$1.69¢845
#49
BAND, MUFFLER
$18.26¢9 131
#50
CAP
$117.32¢58 662
#51
. BOLT, HEX. SOCKET BUTTON This item has been discontinued and may not be available. Contact us for more information.
No Disponible
#52
BOLT,FLANGE
$4.00¢2 001
#53
COLLAR
$12.81¢6 406
#54
DAMPER, MUFFLER
$3.73¢1 863
#55
WASHER, plate
$2.05¢1 023
#56
NUT, U
$6.76¢3 381
#57
MUFFLER ASSY 2
$831.44¢415 719
#58
GASKET, SILENCER
$14.66¢7 331
#59
BOLT, HEXAGON SOCKET HEAD
$1.69¢845
#60
BAND, MUFFLER
$53.34¢26 668
#61
CAP
$117.32¢58 662
#62
. BOLT, HEX. SOCKET BUTTON This item has been discontinued and may not be available. Contact us for more information.
No Disponible
#63
BOLT,FLANGE
$4.00¢2 001
#64
COLLAR
$12.81¢6 406
#65
DAMPER, MUFFLER
$3.73¢1 863
#66
WASHER, plate
$2.05¢1 023
#67
NUT, U
$6.76¢3 381
#68
HOSE, BEND 1
$40.38¢20 188
#69
CLIP
$5.96¢2 978
#70
AIR INDUCTION SYSTEM ASSY
$144.26¢72 128
#71
HOSE, BEND 2
$39.71¢19 855
#72
HOSE, BEND 3
$61.79¢30 895
#73
CLIP
$2.99¢1 495
