COWLING 3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

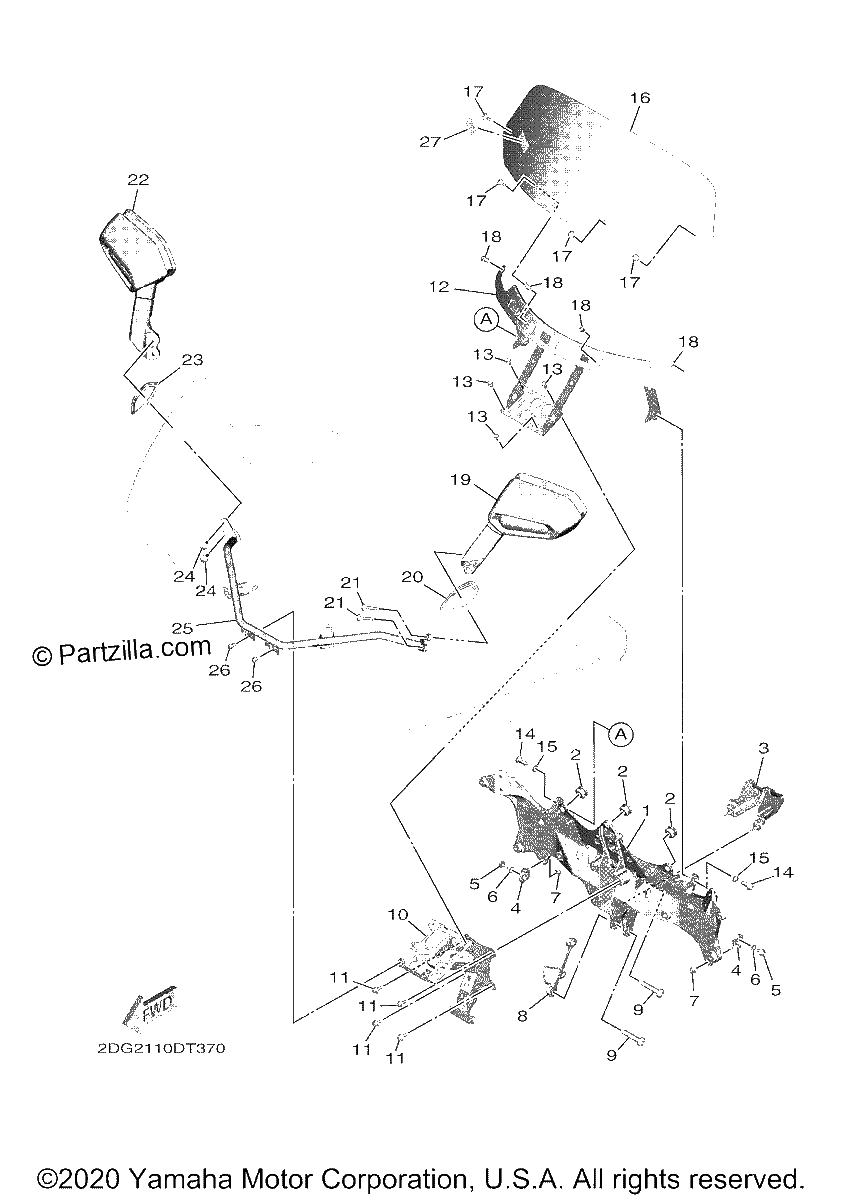

Diagrama de COWLING 3

Repuestos

#1
2DG-28356-00-00
STAY 1
$496.48¢248 238
1
#2
90480-09M21-00
Grommet
$6.47¢3 238
1
#3
2DF-28239-00-00
COVER 3
$27.44¢13 719
1
#4
2DF-2831U-00-00
STAY, SIDE 1
$5.06¢2 531
1
#5
90110-06107-00
BOLT, HEXAGON SOCKET HEAD
$3.09¢1 544
1
#6
90201-06045-00
WASHER, PLATE
$7.35¢3 675
1
#7
90179-06075-00
Nut
$0.94¢469
1
#8
2DF-28336-00-00
PLATE
$22.25¢11 125
1
#9
90111-10054-00
BOLT, HEX. SOCKET BUTTON
$6.14¢3 069
1
#10
2DF-28332-00-00
STAY, LEG SHIELD
$106.76¢53 381
1
#11
95D32-06014-00
BOLT, FLANGE DEEP RECESS
$0.28¢138
1
#12
2DG-28322-00-00
STAY 2
$152.03¢76 013
1
#13
95022-06010-00
BOLT, FLANGE
$6.49¢3 244
1
#14
92012-08020-00
BOLT, BUTTON HEAD
$2.65¢1 325
1
#15
92902-08200-00
WASHER
$0.28¢138
1
#16
2DG-28381-00-00
Windshield
$304.94¢152 469
1
#17
90150-05024-00
SCREW, ROUND HEAD
$3.40¢1 700
1
#18
90179-05523-00
NUT
$6.78¢3 388
1
#19
2DF-26280-00-P2
REAR VIEW MIRROR ASSY (LEFT)
$295.29¢147 644
1
#20
2DF-2628N-00-00
BASE, MIRROR (LEFT)
$8.01¢4 006
1
#21
90109-06031-00
bolt
$2.29¢1 144
1
#22
2DF-26290-00-P2
REAR VIEW MIRROR ASSY (RIGHT)
$247.78¢123 888
1
#23
2DF-2628R-00-00
BASE, MIRROR (RIGHT)
$5.00¢2 500
1
#24
90109-06031-00
bolt
$2.29¢1 144
1
#25
2DF-2831W-00-00
STAY, MIRROR 1
$137.10¢68 550
1
#26
95022-06012-00
BOLT, FLANGE
$3.57¢1 787
1
#27
4B5-2815K-00-00
LABEL, NOTICE WINDSHIELD 1
$8.92¢4 462
1
