CRANKSHAFT PISTON

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

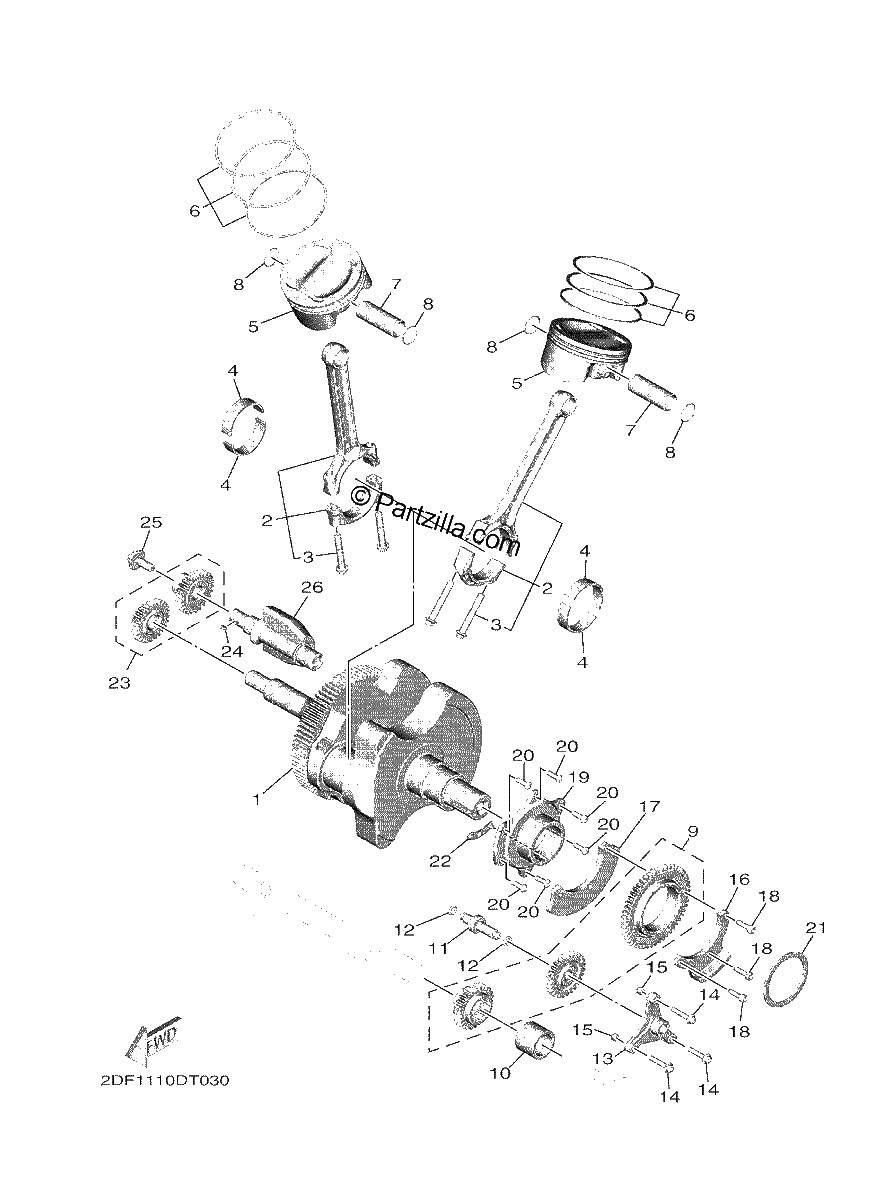

Diagrama de CRANKSHAFT PISTON

Repuestos

#1
2DF-11400-00-00
Crankshaft Assy
$1098.74¢549 369
1
#2
5C7-11650-01-00
CONNECTING ROD ASSY
$389.13¢194 563
1
#3
5YU-11654-00-00
BOLT, CONNECTING ROD
$8.50¢4 250
1
#4
5YU-11656-40-00
PLANE BEARING, CONNECTING ROD | UR YELLOW
$17.80¢8 900
1
#4
5YU-11656-30-00
PLANE BEARING, CONNECTING ROD | UR GREEN
$18.61¢9 306
1
#4
5YU-11656-20-00
PLANE BEARING, CONNECTING ROD | UR BROWN
$17.96¢8 981
1
#4
5YU-11656-10-00
PLANE BEARING, CONNECTING ROD | UR BLACK
$19.09¢9 544
1
#4
5YU-11656-00-00
PLANE BEARING, CONNECTING ROD | UR BLUE
$19.23¢9 613
1
#5
2DF-11631-00-00
PISTON (Std)
$157.68¢78 838
1
#6
2DF-11610-00-00
Piston Ring Set (STD)
$34.15¢17 075
1
#7
5VK-11633-00-00
PIN, PISTON
$43.49¢21 744
1
#8
93450-23172-00
Circlip
$1.23¢613
1
#9
2DF-W114B-00-00
DRIVE GEAR SET
$247.46¢123 731
1
#10
2DF-11478-00-00
Collar
$17.18¢8 588
1
#11
1D7-11455-00-00
SHAFT 1
$37.16¢18 581
1
#12
93210-06003-00
O-RING
$5.05¢2 525
1
#13
2DF-1135A-00-00
Bracket
$25.44¢12 719
1
#14
90109-06028-00
BOLT
$1.69¢844
1
#15
99530-08012-00
PIN, DOWEL
$6.25¢3 125
1
#16
2DF-11454-00-00
WEIGHT 1
$67.16¢33 581
1
#17
2DF-1145A-00-00
WEIGHT 3
$61.28¢30 638
1
#18
90110-06211-00
BOLT, HEXAGON SOCKET HEAD
$2.44¢1 219
1
#19
2DF-11444-00-00
Housing
$173.96¢86 981
1
#20
90149-06166-00
Screw
$7.76¢3 881
1
#21
1D7-11483-00-00
WASHER, WEIGHT 1
$32.73¢16 363
1
#22
2DF-11479-00-00
Gasket
$34.28¢17 138
1
#23
1D7-W114A-01-00
BREAKER GEAR SET
$183.92¢91 962
1
#24
90282-04001-00
KEY, STRAIGHT
$5.96¢2 981
1
#25
90105-10445-00
BOLT, FLANGE
$11.53¢5 763
1
#26
2DF-11464-00-00
WEIGHT 2
$174.13¢87 063
1
