COWLING 4

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

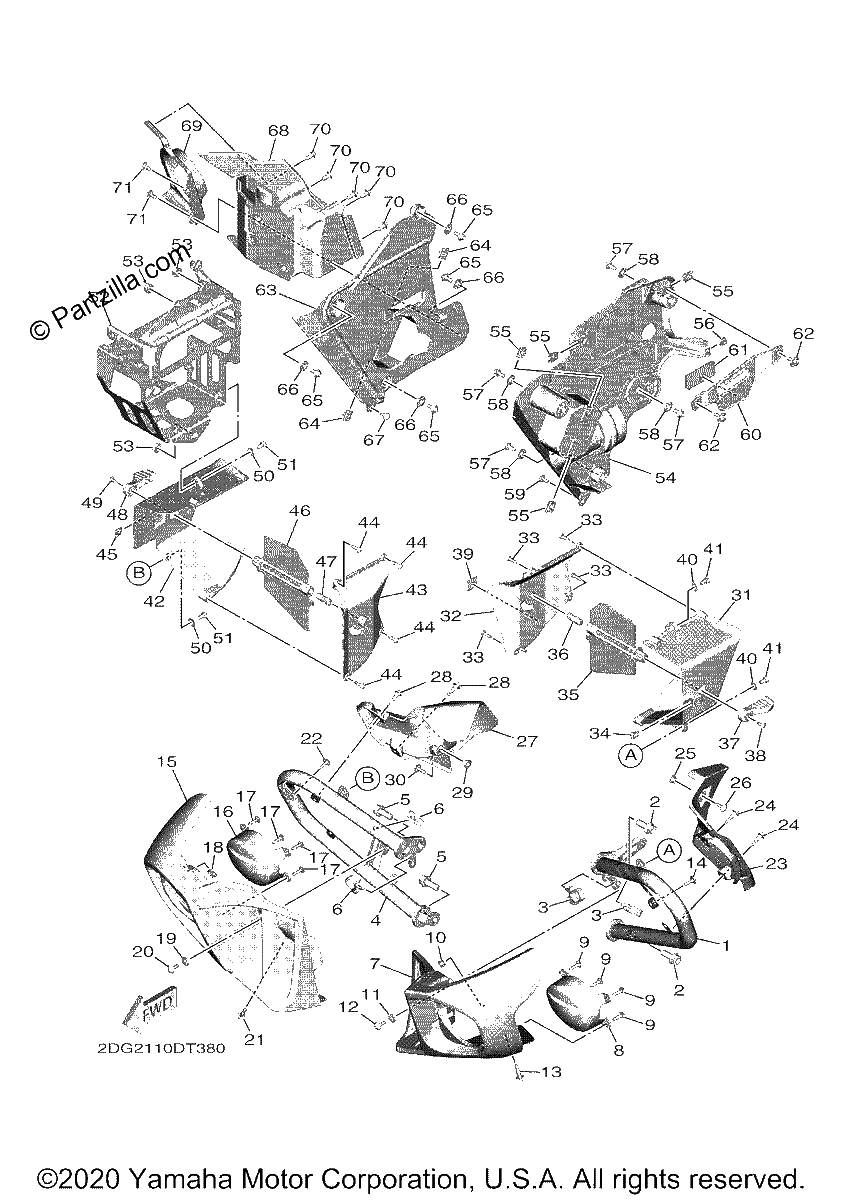

Diagrama de COWLING 4

Repuestos

#1
2DF-28418-00-00
GUARD, ENGINE 1
$215.78¢107 888
1
#2
95D37-10025-00
BOLT, FLANGE (replaces 90105-10475-00)
$2.04¢1 019
1
#3
90464-16006-00
CLAMP
$9.91¢4 956
1
#4
2DF-28419-00-00
GUARD, ENGINE 2
$189.51¢94 756
1
#5
95D37-10025-00
BOLT, FLANGE (replaces 90105-10475-00)
$2.04¢1 019
1
#6
90464-16006-00
CLAMP
$9.91¢4 956
1
#7
2DF-2835J-00-00
BODY, FRONT UNDER 1
$98.49¢49 244
1
#8
2DF-28349-00-00
CAP
$14.05¢7 025
1
#9
90167-05078-00
SCREW, TAPPING (replaces 97702-50020-00)
$6.26¢3 131
1
#10
90183-050A6-00
NUT, SPRING
$2.82¢1 412
1
#11
90201-05556-00
WASHER, PLATE
$8.31¢4 156
1
#12
90111-05051-00
BOLT,HEX. SOCKET BUT (replaces 90111-05055-00)
$1.47¢737
1
#13
90269-06008-00
RIVET
$8.80¢4 400
1
#14
90111-05034-00
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
1
#15
2DF-2835K-00-00
BODY, FRONT UNDER 2
$98.49¢49 244
1
#16
2DF-28349-00-00
CAP
$14.05¢7 025
1
#17
90167-05078-00
SCREW, TAPPING (replaces 97702-50020-00)
$6.26¢3 131
1
#18
90183-050A6-00
NUT, SPRING
$2.82¢1 412
1
#19
90201-05556-00
WASHER, PLATE
$8.31¢4 156
1
#20
90111-05051-00
BOLT,HEX. SOCKET BUT (replaces 90111-05055-00)
$1.47¢737
1
#21
90269-06008-00
RIVET
$8.80¢4 400
1
#22
90111-05034-00
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
1
#23
2DF-84544-00-00
Cover
$59.86¢29 931
1
#24
90269-06008-00
RIVET
$8.80¢4 400
1
#25
90560-06244-00
SPACER
$7.94¢3 969
1
#26
90111-05021-00
BOLT,HEX. SOCKET BUT
$5.91¢2 956
1
#27
2DF-84797-00-00
Cover
$54.63¢27 313
1
#28
90269-06008-00
RIVET
$8.80¢4 400
1
#29
90560-06244-00
SPACER
$7.94¢3 969
1
#30
90111-05021-00
BOLT,HEX. SOCKET BUT
$5.91¢2 956
1
#31
2DF-2838X-00-00
BOX, 5
$26.55¢13 275
1
#32
2DF-2833K-00-00
BRACKET 13
$17.25¢8 625
1
#33
97707-50516-00
SCREW, TAPPING
$0.64¢319
1
#34
90183-05042-00
NUT, SPRING
$1.25¢625
1
#35
2DF-28273-00-00
FIN 1
$23.24¢11 619
1
#36
2DF-2837F-00-00
HINGE
$80.49¢40 244
1
#37
2DF-2836X-00-00
KNOB, 1
$15.81¢7 906
1
#38
97707-50012-00
SCREW, TRUSS HEAD TAPPING
$3.85¢1 925
1
#39
3TB-28217-00-00
DAMPER 1
$4.84¢2 419
1
#40
90201-06049-00
WASHER, PLATE
$3.76¢1 881
1
#41
91317-06010-00
BOLT (4MY) (replaces 90110-06065-00)
$8.24¢4 119
1
#42
2DF-2838Y-00-00
BOX
$26.70¢13 350
1
#43
2DF-2833L-00-00
BRACKET 14
$17.14¢8 569
1
#44
97707-50516-00
SCREW, TAPPING
$0.64¢319
1
#45
90183-05042-00
NUT, SPRING
$1.25¢625
1
#46
2DF-28273-00-00
FIN 1
$23.24¢11 619
1
#47
2DF-2837F-00-00
HINGE
$80.49¢40 244
1
#48
2DF-2836Y-00-00
KNOB, 2
$15.81¢7 906
1
#49
97707-50012-00
SCREW, TRUSS HEAD TAPPING
$3.85¢1 925
1
#50
90201-06049-00
WASHER, PLATE
$3.76¢1 881
1
#51
91317-06010-00
BOLT (4MY) (replaces 90110-06065-00)
$8.24¢4 119
1
#52
2DF-283D0-00-00
INNER PANEL ASSY
$199.60¢99 800
1
#53
95702-08500-00
NUT, FLANGE
$0.99¢494
1
#54
2DF-2836M-00-00
PANEL, INNER 3
$68.53¢34 263
1
#55
90183-06069-00
NUT, SPRING
$7.26¢3 631
1
#56
90183-050A6-00
NUT, SPRING
$2.82¢1 412
1
#57
90110-06245-00
BOLT, HEXAGON SOCKET HEAD
$7.46¢3 731
1
#58
90387-07717-00
COLLAR
$7.34¢3 669
1
#59
90167-05079-00
SCREW, TAPPING
$3.63¢1 813
1
#60
2DF-81174-00-00
HOOK
$22.71¢11 356
1
#61
1UY-21638-00-00
DAMPER 1
$7.70¢3 850
1
#62
90119-06209-00
BOLT, WITH WASHER
$6.70¢3 350
1
#63
2DF-2836N-00-00
PANEL, INNER 4
$62.99¢31 494
1
#64
90183-06069-00
NUT, SPRING
$7.26¢3 631
1
#65
90110-06245-00
BOLT, HEXAGON SOCKET HEAD
$7.46¢3 731
1
#66
90387-07717-00
COLLAR
$7.34¢3 669
1
#67
90167-05079-00
SCREW, TAPPING
$3.63¢1 813
1
#68
2DF-2838K-00-00
BOX 1
$34.20¢17 100
1
#69
2DF-28276-00-00
PLATE
$22.57¢11 288
1
#70
90269-06019-00
RIVET
$3.46¢1 731
1
#71
90269-06019-00
RIVET
$3.46¢1 731
1
