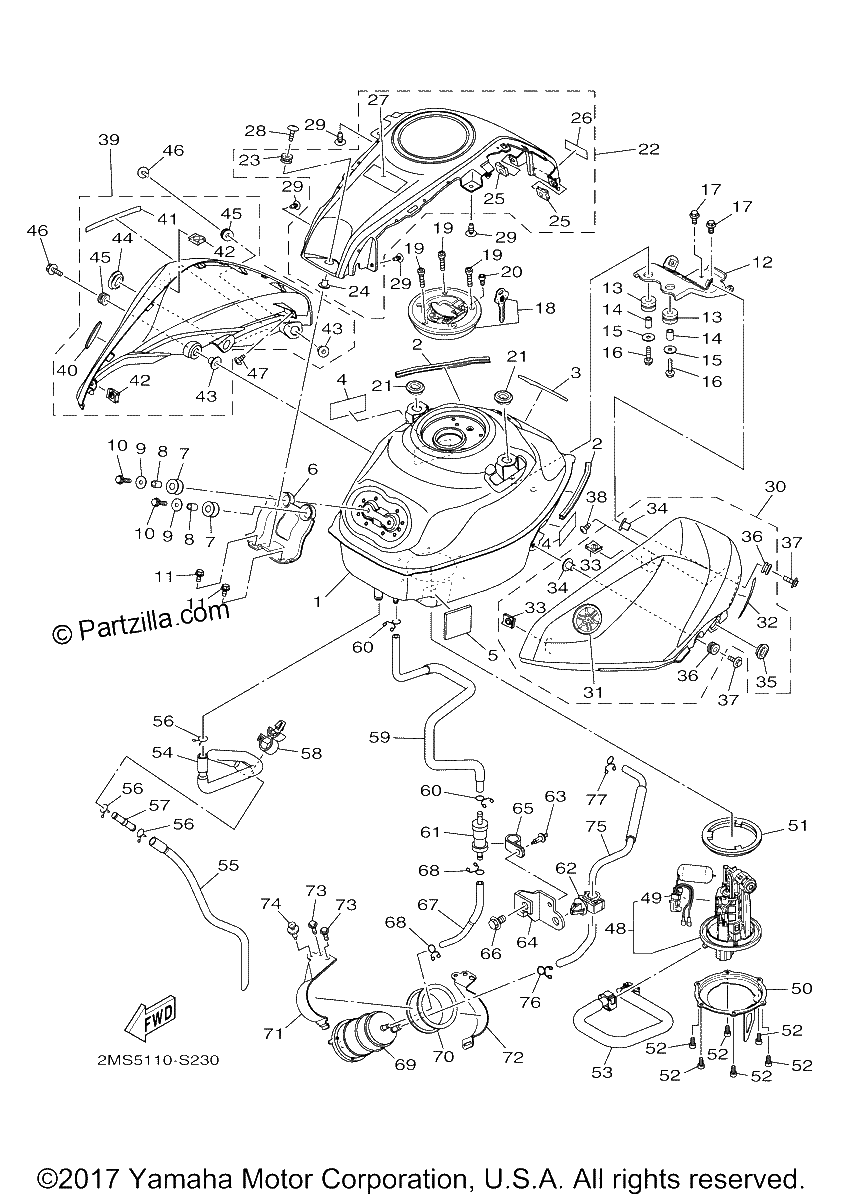

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FUEL TANK COMP. (replaces 1WD-F4110-00-00)
$357.32¢178 658
#2
MOLD, FUEL TANK
$5.55¢2 777
#3
DAMPER, PLATE
$1.53¢765
#4
SEAL
$1.95¢977
#5
DAMPER, PLATE 1
No Disponible
#6
BRACKET, TANK FITTIN
$14.27¢7 136
#7
GROMMET
No Disponible
#8
COLLAR
$5.30¢2 651
#9
WASHER PLAIN
$0.63¢316
#10
BOLT,FLANGE (replaces 90105-06125-00)
$1.61¢805
#11
BOLT, FLANGE (replaces 95802-06012-00)
No Disponible
#12
BRACKET, FUEL TANK 1
No Disponible
#13
GROMMET
$1.25¢627
#14
COLLAR
$5.30¢2 651
#15
WASHER PLAIN
$0.63¢316
#16
BOLT,FLANGE (replaces 90105-06125-00)
$1.61¢805
#17
BOLT, FLANGE
$6.83¢3 415
#18
CAP ASSY
$144.46¢72 232
#19
BOLT, HEXAGON SOCKET HEAD
$8.20¢4 100
#20
BOLT
$5.39¢2 697
#21
Grommet
$4.31¢2 156
#22
TANK SIDE COVER 1
$116.43¢58 213
#22
COVER, TANK
$46.20¢23 098
#23
GROMMET
$2.71¢1 357
#24
COLLAR
$2.70¢1 351
#25
NUT, SPRING
$1.15¢575
#26
SEAL
$1.94¢972
#27
LABEL, CAUTION
$6.59¢3 295
#28
BOLT, HEX. SOCKET BUTTON
$1.61¢805
#29
SCREW, TRUSS HEAD TAPPING
$3.54¢1 771
#30
FUEL TANK COMP.
$64.77¢32 384
#30
TANK SIDE COVER 1
$54.18¢27 088
#31
EMBLEM
$9.72¢4 859
#32
SEAL 2
$2.71¢1 357
#33
NUT, SPRING
$1.15¢575
#34
COLLAR
$2.70¢1 351
#35
Grommet
$5.27¢2 633
#36
GROMMET
$2.71¢1 357
#37
BOLT, WITH WASHER
$5.86¢2 932
#38
SCREW, TRUSS HEAD TAPPING
$3.54¢1 771
#39
TANK SIDE COVER 2
$54.18¢27 088
#39
TANK SIDE COVER 2
$23.98¢11 989
#40
EMBLEM
$9.72¢4 859
#41
SEAL 2
$2.71¢1 357
#42
NUT, SPRING
$1.15¢575
#43
COLLAR
$2.70¢1 351
#44
Grommet
$5.27¢2 633
#45
GROMMET
$2.71¢1 357
#46
BOLT, WITH WASHER
$5.86¢2 932
#47
SCREW, TRUSS HEAD TAPPING
$3.54¢1 771
#48
FUEL PUMP COMP. (replaces 1WD-E3907-11-00)
$249.22¢124 608
#49
SENDER UNIT ASSY, FU
$156.16¢78 079
#50
BRACKET, FUEL PUMP
$11.22¢5 612
#51
O-RING
$41.00¢20 499
#52
BOLT
$5.39¢2 697
#53
PIPE, FUEL 1 (replaces 1WD-E3971-00-00)
$67.75¢33 873
#54
PIPE 2
$13.05¢6 526
#55
PIPE 4
$14.72¢7 360
#56
CLIP,SCISSOR
$5.16¢2 582
#57
PIPE, JOINT 1
$15.32¢7 659
#58
Clamp
$5.93¢2 967
#59
PIPE 4
$29.66¢14 829
#60
Clip
$2.74¢1 368
#61
ROLL OVER VALVE ASSY
$82.40¢41 199
#62
CLAMP
$2.90¢1 449
#63
RIVET
$2.78¢1 392
#64
BRACKET, CANISTOR
No Disponible
#65
Clamp
$2.16¢1 081
#66
BOLT, SMALL FLANGE (replaces 9502M-08012-00)
$7.56¢3 778
#67
PIPE 5
$8.82¢4 410
#68
Clip
$2.74¢1 368
#69
CANISTER ASSY
$143.20¢71 599
#70
BAND
$3.42¢1 708
#71
BRACKET, CANISTER
$13.42¢6 710
#72
BRACKET, CANISTER
$12.58¢6 290
#73
BOLT, FLANGE
$6.88¢3 439
#74
RIVET
$6.23¢3 117
#75
PIPE 6
$24.53¢12 265
#76
CLIP
$8.28¢4 140
#77
Clip
$2.74¢1 368
