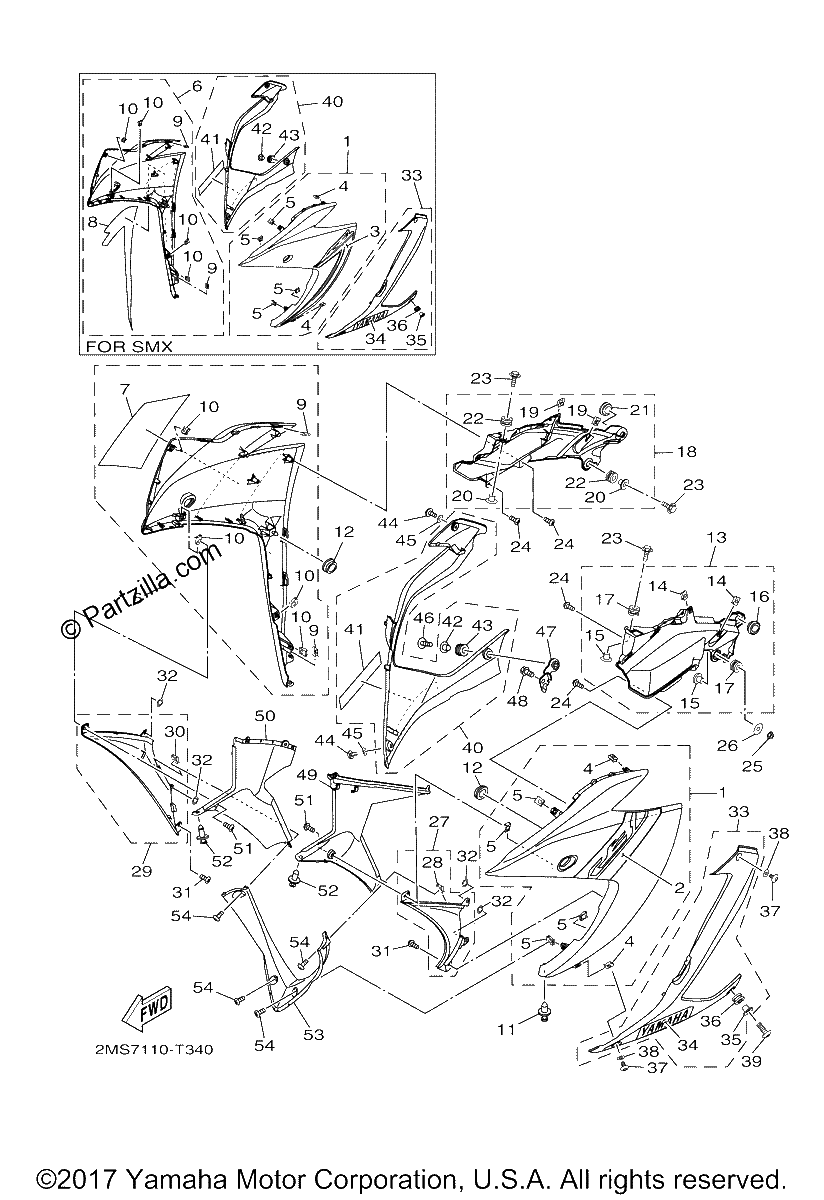

COWLING 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
BODY, FRONT UNDER 1 SUB ASSY
$199.80¢99 901
#1
BODY, FRONT UNDER 1 SUB ASSY
$199.80¢99 901
#2
. . GRAPHIC 3
$7.65¢3 824
#3
. . GRAPHIC 5
$7.92¢3 962
#4
NUT, SPRING
$2.86¢1 432
#5
NUT, SPRING
$1.15¢575
#6
BODY, FRONT UNDER 2 SUB ASSY
$199.80¢99 901
#6
BODY, FRONT UNDER 2 SUB ASSY
$199.80¢99 901
#7
. . GRAPHIC 4
$8.69¢4 347
#8
. GRAPHIC 6
$10.12¢5 060
#9
NUT, SPRING
$2.86¢1 432
#10
NUT, SPRING
$1.15¢575
#11
RIVET
$6.23¢3 117
#12
Grommet
$4.31¢2 156
#13
COVER 7 | Use for Color Black Metallic X ( SMX / 0903 )
$58.24¢29 118
#13
COVER 7 | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$40.76¢20 378
#14
NUT, SPRING
$2.86¢1 432
#15
COLLAR
$2.70¢1 351
#16
Grommet
$4.31¢2 156
#17
GROMMET
$2.71¢1 357
#18
COVER 8 | Use for Color Black Metallic X ( SMX / 0903 )
$58.24¢29 118
#18
COVER 8 | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$44.98¢22 488
#19
NUT, SPRING
$2.86¢1 432
#20
COLLAR
$2.70¢1 351
#21
Grommet
$4.31¢2 156
#22
GROMMET
$2.71¢1 357
#23
BOLT,WITH WASHER
$3.38¢1 691
#24
SCREW, TRUSS HEAD TAPPING
$1.58¢788
#25
NUT, FLANGE
$2.24¢1 121
#26
WASHER PLAIN
$0.63¢316
#27
PANEL ASSY
$24.53¢12 265
#28
NUT, SPRING
$1.15¢575
#29
PANEL ASSY 2
$24.85¢12 426
#30
NUT, SPRING
$1.15¢575
#31
SCREW, TRUSS HEAD TAPPING
$1.58¢788
#32
NUT,SPRING
$7.31¢3 657
#33
UNDER COVER ASSY 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$44.54¢22 270
#33
UNDER COVER ASSY 1 | Use for Color Black Metallic X ( SMX / 0903 )
$21.62¢10 810
#34
EMBLEM | UR FOR MNM3
$3.07¢1 535
#34
EMBLEM | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$5.01¢2 507
#35
COLLAR
$2.70¢1 351
#36
GROMMET
$2.71¢1 357
#37
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
#38
WASHER, PLATE
$7.05¢3 525
#39
BOLT, HEX. SOCKET BUTTON
$1.61¢805
#40
UNDER COVER ASSY 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$45.33¢22 667
#40
UNDER COVER ASSY 2 | Use for Color Black Metallic X ( SMX / 0903 )
$46.24¢23 121
#41
EMBLEM | UR FOR MNM3
$3.07¢1 535
#41
EMBLEM | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$5.01¢2 507
#42
COLLAR
$2.70¢1 351
#43
GROMMET
$2.71¢1 357
#44
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
#45
WASHER, PLATE
$7.05¢3 525
#46
BOLT, HEX. SOCKET BUTTON
$1.61¢805
#47
BRACKET 8
$12.55¢6 273
#48
BOLT, FLANGE
$3.29¢1 644
#49
PANEL, INNER 1
$6.55¢3 278
#50
PANEL, INNER 2
$6.69¢3 347
#51
SCREW, TRUSS HEAD TAPPING
$1.58¢788
#52
RIVET
$6.23¢3 117
#53
PANEL, INNER 3
$41.00¢20 499
#54
SCREW, TRUSS HEAD TAPPING
$1.58¢788
