REAR ARM SUSPENSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

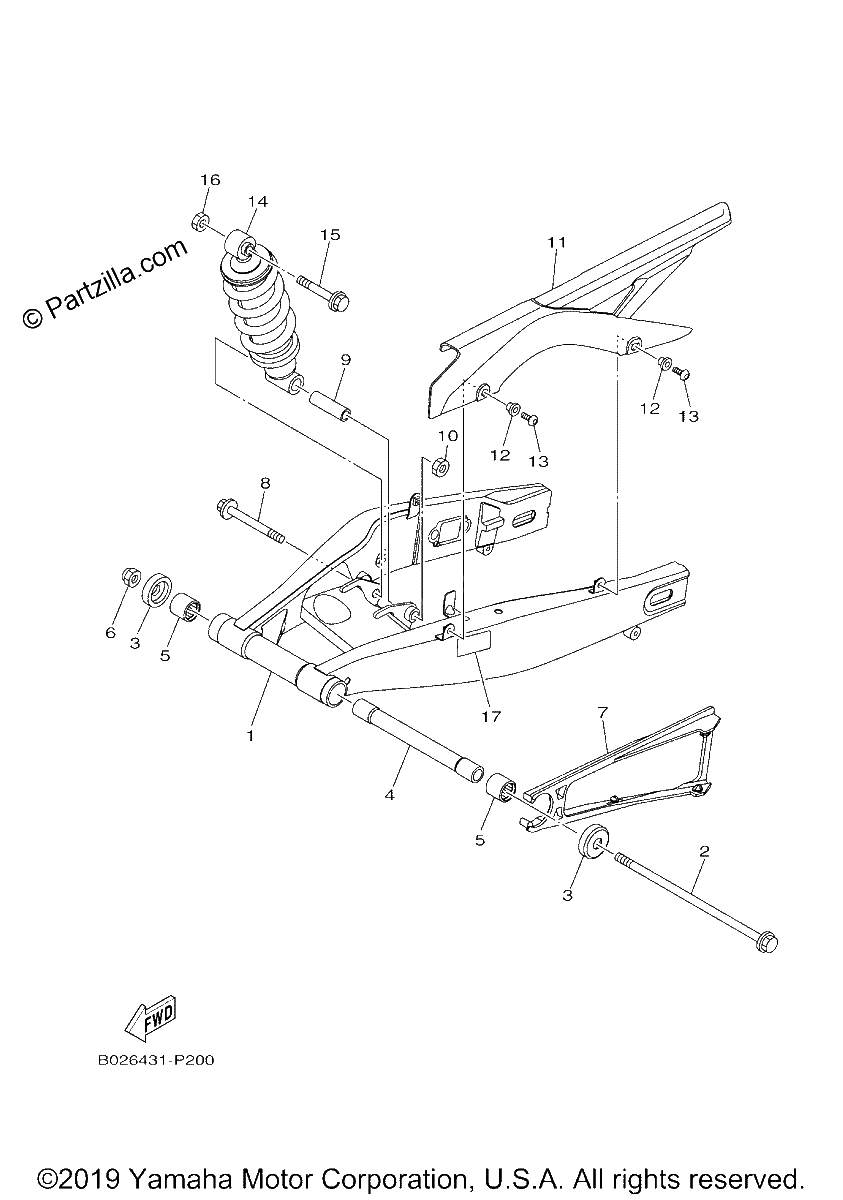

Diagrama de REAR ARM SUSPENSION

Repuestos

#1
1WD-F2110-00-00
REAR ARM COMP.
$236.42¢118 212
1
#2
1WD-22141-00-00
SHAFT, PIVOT
$57.86¢28 931
1
#3
1WD-F2129-00-00
COVER, THRUST 2
$6.04¢3 019
1
#4
1WD-F2184-00-00
BUSH
$71.91¢35 956
1
#5
93320-32403-00
BEARING
$48.22¢24 112
1
#6
95602-14200-00
NUT,SELF-LOCKING
$11.81¢5 906
1
#7
1WD-F2151-00-00
SEAL, GUARD
$53.20¢26 600
1
#8
90105-12309-00
BOLT,WASHER BASED
$12.02¢6 012
1
#9
1WD-F248B-00-00
COLLAR, ROD 1
$13.10¢6 550
1
#10
95617-12100-00
NUT, U
$4.53¢2 263
1
#11
1WD-F2311-01-00
CASE, CHAIN (replaces 1WD-F2311-00-00)
$7.08¢3 538
1
#12
90387-06242-00
COLLAR
$5.95¢2 975
1
#13
90111-06119-00
BOLT, HEX. SOCKET BUTTON
$7.46¢3 731
1
#14
1WD-F2210-00-00
SHOCK ABSORBER ASSY, REAR
$249.81¢124 906
1
#15
90105-12093-00
BOLT, FLANGE
$19.01¢9 506
1
#16
95617-12100-00
NUT, U
$4.53¢2 263
1
#17
2MS-F1668-20-00
LABEL, TIRE
$1.51¢756
1
