FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

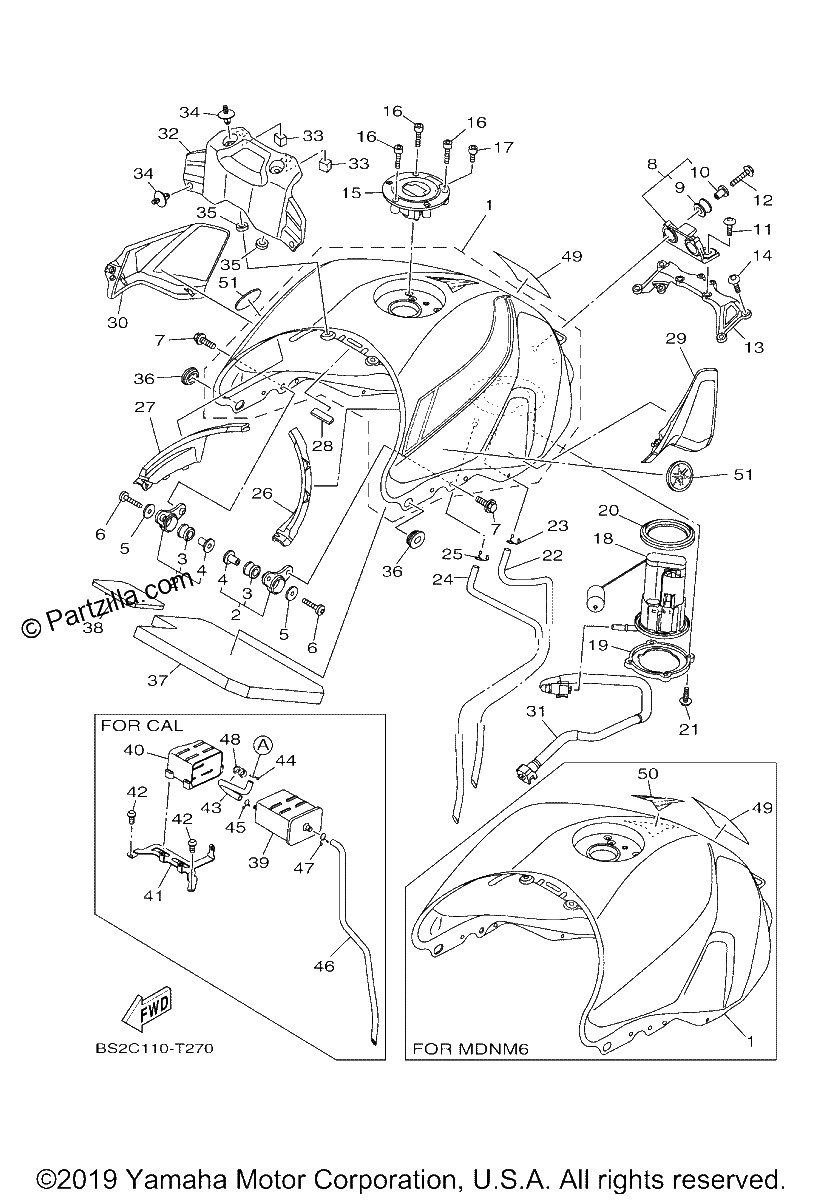

Diagrama de FUEL TANK

Repuestos

#1
1RC-YG241-00-03
FUEL TANK COMP. (replaces 1RC-Y2410-00-X3)
No Disponible
1
#1
1RC-24110-00-PB
FUEL TANK COMP.
$1036.56¢518 282
1
#1
1RC-Y2410-00-X6
FUEL TANK COMP.
$786.59¢393 294
1
#2
23P-24104-00-00
TANK BRACKET ASSY (replaces 23P-24104-01-00)
$55.90¢27 951
1
#3
90480-18008-00
GROMMET
$3.48¢1 742
1
#4
90387-06266-00
COLLAR
$4.30¢2 151
1
#5
90201-06072-00
WASHER, PLATE
$7.01¢3 507
1
#6
92012-06035-00
BOLT, BUTTON HEAD
$1.89¢943
1
#7
90119-06051-00
BOLT, WITH WASHER
$6.89¢3 444
1
#8
1RC-24104-00-00
TANK BRACKET ASSY
$47.48¢23 742
1
#9
3D7-24339-00-00
GROMMET
$3.61¢1 805
1
#10
90387-06136-00
COLLAR
$6.22¢3 111
1
#11
90111-06136-00
BOLT, HEX. SOCKET BUTTON
$5.16¢2 582
1
#12
95D32-06025-00
BLOT, FLANGE DEEP RECESS
$0.93¢466
1
#13
1RC-2413Y-00-00
BRACKET, TANK FITTING
$45.23¢22 615
1
#14
92017-06020-00
BOLT, BUTTON HEAD
$2.79¢1 397
1
#15
39P-24602-10-00
CAP ASSY
$287.60¢143 802
1
#16
90110-05112-00
BOLT, HEXAGON SOCKET HEAD
$8.20¢4 100
1
#17
91312-05010-00
BOLT
$5.39¢2 697
1
#18
1RC-13907-00-00
FUEL PUMP COMP.
$426.33¢213 164
1
#19
1RC-24491-00-00
BRACKET, FUEL PUMP
$27.00¢13 501
1
#20
1RC-24486-00-00
O-RING
$26.89¢13 443
1
#21
90110-05028-00
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
1
#22
1RC-24315-00-00
PIPE 5
$14.40¢7 199
1
#23
90467-090A2-00
Clip
$2.74¢1 368
1
#24
1RC-24316-00-00
PIPE 6 | FOR U49
$13.03¢6 515
1
#25
90467-090A2-00
Clip
$2.74¢1 368
1
#26
1RC-2418B-01-00
MOLE, FUEL TANK 1
$33.92¢16 963
1
#27
1RC-2419B-01-00
MOLE, FUEL TANK 2
$33.92¢16 963
1
#28
2S3-28347-00-00
MOLE 3
$7.28¢3 640
1
#29
1RC-24106-01-00
TANK SIDE COVER ASSY (replaces 1RC-24106-00-00)
$40.78¢20 390
1
#30
1RC-24108-01-00
TANK SIDE COVER ASSY (replaces 1RC-24108-00-00)
$43.13¢21 563
1
#31
1RC-13971-11-00
PIPE, FUEL 1 (replaces 1RC-13971-00-00)
$71.37¢35 685
1
#32
1RC-241B1-00-00
COVER, TANK
$27.98¢13 990
1
#33
90520-15012-00
DAMPER, PLATE
$1.02¢512
1
#34
90269-07077-00
RIVET
$7.59¢3 795
1
#35
5SL-84753-00-00
DAMPER
$5.93¢2 967
1
#36
90480-01558-00
Grommet
$4.31¢2 156
1
#37
2PP-2414J-00-00
DAMPER, PLATE 2
$11.48¢5 739
1
#38
BS2-24141-00-00
PROTECTOR, FUEL TANK
$16.19¢8 096
1
#39
2CR-24170-00-00
CANISTER ASSY | FOR CALIFORNIA
$346.86¢173 432
1
#40
B90-24183-00-00
DAMPER, LOCATING 3 | FOR CAL
$24.76¢12 380
1
#41
B90-2419F-00-00
BRACKET, CANISTOR | FOR CAL
$13.96¢6 981
1
#42
92012-06012-00
BOLT, BUTTON HEAD
$2.74¢1 368
1
#43
B90-24313-10-00
PIPE 3 | FOR CAL
$27.16¢13 582
1
#44
90467-090A2-00
Clip
$2.74¢1 368
1
#45
90467-09026-00
CLIP,SCISSOR
$2.99¢1 495
1
#46
BS2-24321-00-00
PIPE 10
$0.89¢443
1
#47
90467-100A1-00
CLIP | FOR CALIFORNIA
$6.99¢3 496
1
#48
90464-09M31-00
CLAMP
$6.77¢3 387
1
#49
29P-2816R-00-00
LABEL, WARNING GENERAL INFO.
$3.40¢1 702
1
#50
B87-24161-00-00
EMBLEM 1
$12.75¢6 377
1
#51
1RC-2413B-01-00
EMBLEM (replaces 1RC-2413B-00-00)
$21.98¢10 988
1
