HEADLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

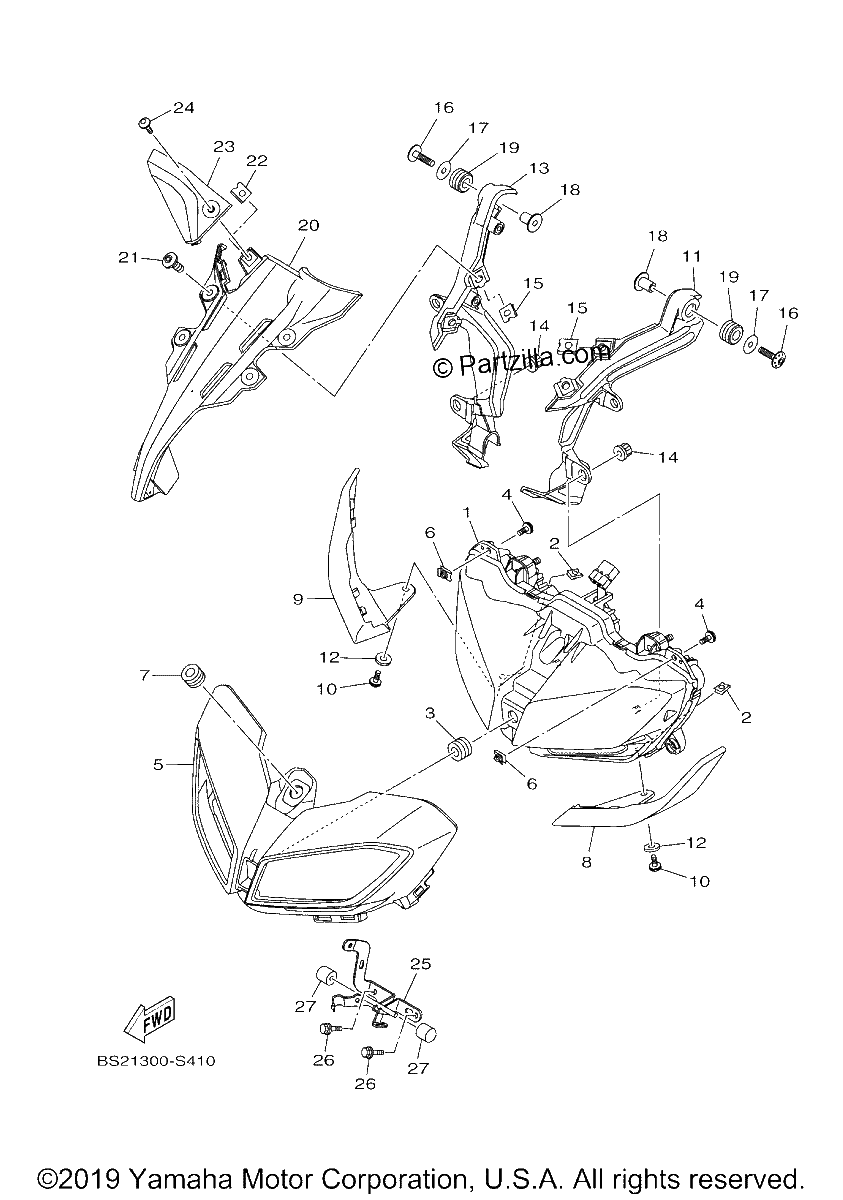

Diagrama de HEADLIGHT

Repuestos

#1
BS2-84300-00-00
HEADLIGHT ASSY
$1354.69¢677 344
1
#2
90183-05042-00
NUT, SPRING
$1.15¢575
1
#3
90480-13014-00
GROMMET
$7.51¢3 755
1
#4
90167-05080-00
SCREW, TAPPING
$2.08¢1 041
1
#5
BS2-2838D-00-00
COVER, HEADLIGHT 1
$25.84¢12 920
1
#6
90183-05042-00
NUT, SPRING
$1.15¢575
1
#7
90480-13014-00
GROMMET
$7.51¢3 755
1
#8
BS2-2830C-00-P8
VISOR, SIDE 1
$75.26¢37 628
1
#8
BS2-2830C-00-P6
VISOR, SIDE 1
$83.98¢41 992
1
#8
BS2-2830C-00-P0
VISOR, SIDE 1
$97.99¢48 996
1
#9
BS2-2830D-00-P6
VISOR, SIDE 2
$84.11¢42 055
1
#9
BS2-2830D-00-P0
VISOR, SIDE 2
$96.94¢48 473
1
#9
BS2-2830D-00-P8
VISOR, SIDE 2
$75.26¢37 628
1
#10
90167-05080-00
SCREW, TAPPING
$2.08¢1 041
1
#11
BS2-2831V-00-00
STAY, HEAD LIGHT 1
$35.78¢17 888
1
#12
90202-05180-00
WASHER, PLATE
$7.05¢3 525
1
#13
BS2-2832V-00-00
STAY, HEAD LIGHT 2
$33.92¢16 963
1
#14
90179-06074-00
NUT
$9.07¢4 537
1
#15
90183-061A4-00
Nut, Spring
$2.22¢1 110
1
#16
90109-06317-00
bolt
$3.10¢1 553
1
#17
90201-06095-00
WASHER, PLATE (replaces 90201-06063-00)
$6.89¢3 444
1
#18
90387-06136-00
COLLAR
$6.22¢3 111
1
#19
90480-14023-00
GROMMET
$5.35¢2 674
1
#20
BS2-23391-00-00
Panel, Front
$24.48¢12 242
1
#21
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#22
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#23
BS2-23397-00-00
PANEL, FRONT 2
$16.09¢8 044
1
#24
90111-05002-00
BOLT, HEX. SOCKET BUTTON
$5.69¢2 846
1
#25
BS2-8431R-00-00
STAY, SETTING
$37.92¢18 958
1
#26
95D07-06016-00
BOLT, FLANGE DEEP RECESS
$0.76¢380
1
#27
BS2-84527-00-00
Damper
$3.00¢1 501
1
