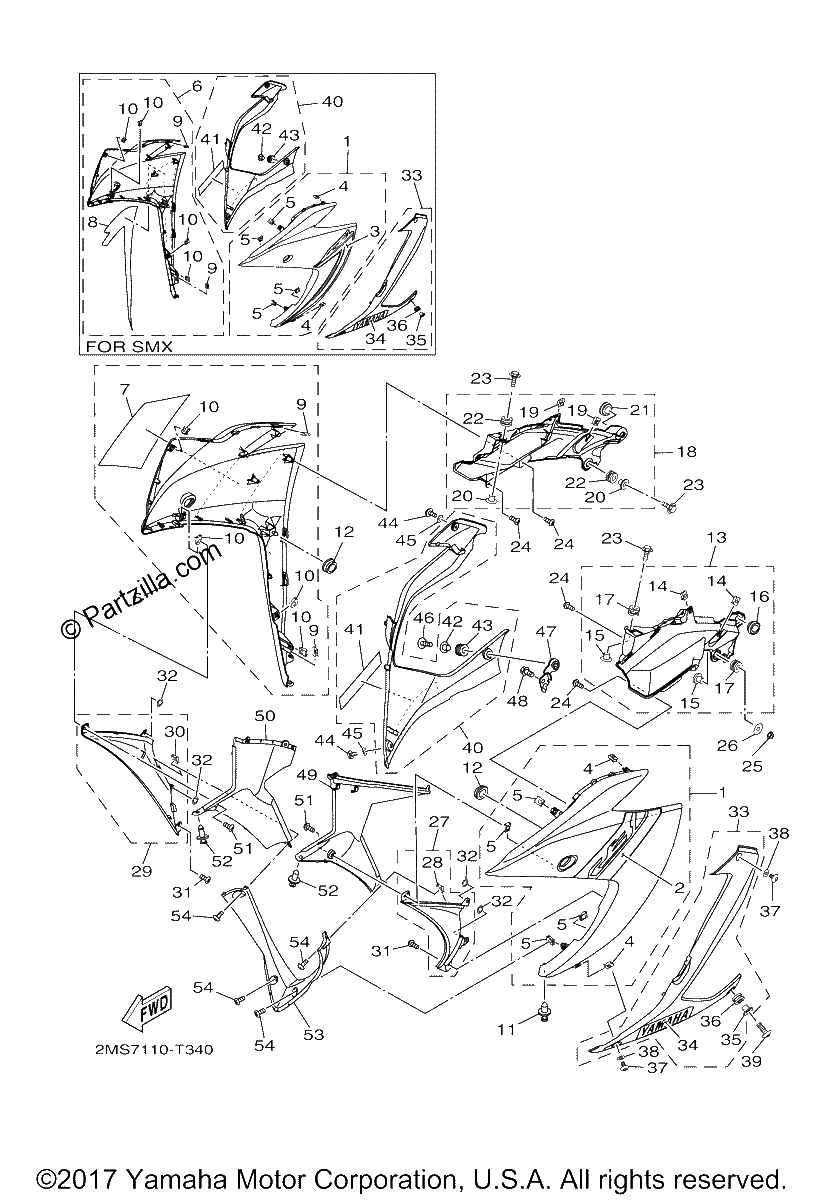

COWLING 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
BODY, FRONT UNDER 1 SUB ASSY
$217.18¢108 588
#1
BODY, FRONT UNDER 1 SUB ASSY
$217.18¢108 588
#2
. . GRAPHIC 3
$8.31¢4 156
#3
. . GRAPHIC 5
$8.61¢4 306
#4
NUT, SPRING
$3.11¢1 556
#5
NUT, SPRING
$1.25¢625
#6
BODY, FRONT UNDER 2 SUB ASSY
$217.18¢108 588
#6
BODY, FRONT UNDER 2 SUB ASSY
$217.18¢108 588
#7
. . GRAPHIC 4
$9.45¢4 725
#8
. GRAPHIC 6
$11.00¢5 500
#9
NUT, SPRING
$3.11¢1 556
#10
NUT, SPRING
$1.25¢625
#11
RIVET
$6.78¢3 388
#12
Grommet
$4.69¢2 344
#13
COVER 7 | Use for Color Black Metallic X ( SMX / 0903 )
$63.30¢31 650
#13
COVER 7 | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$44.30¢22 150
#14
NUT, SPRING
$3.11¢1 556
#15
COLLAR
$2.94¢1 469
#16
Grommet
$4.69¢2 344
#17
GROMMET
$2.95¢1 475
#18
COVER 8 | Use for Color Black Metallic X ( SMX / 0903 )
$63.30¢31 650
#18
COVER 8 | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$48.89¢24 444
#19
NUT, SPRING
$3.11¢1 556
#20
COLLAR
$2.94¢1 469
#21
Grommet
$4.69¢2 344
#22
GROMMET
$2.95¢1 475
#23
BOLT,WITH WASHER
$3.67¢1 838
#24
SCREW, TRUSS HEAD TAPPING
$1.71¢856
#25
NUT, FLANGE
$2.44¢1 219
#26
WASHER PLAIN
$0.69¢344
#27
PANEL ASSY
$26.66¢13 331
#28
NUT, SPRING
$1.25¢625
#29
PANEL ASSY 2
$27.01¢13 506
#30
NUT, SPRING
$1.25¢625
#31
SCREW, TRUSS HEAD TAPPING
$1.71¢856
#32
NUT,SPRING
$7.95¢3 975
#33
UNDER COVER ASSY 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$48.41¢24 206
#33
UNDER COVER ASSY 1 | Use for Color Black Metallic X ( SMX / 0903 )
$23.50¢11 750
#34
EMBLEM | UR FOR MNM3
$3.34¢1 669
#34
EMBLEM | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$5.45¢2 725
#35
COLLAR
$2.94¢1 469
#36
GROMMET
$2.95¢1 475
#37
BOLT, HEX. SOCKET BUTTON
$7.34¢3 669
#38
WASHER, PLATE
$7.66¢3 831
#39
BOLT, HEX. SOCKET BUTTON
$1.75¢875
#40
UNDER COVER ASSY 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$49.28¢24 638
#40
UNDER COVER ASSY 2 | Use for Color Black Metallic X ( SMX / 0903 )
$50.26¢25 131
#41
EMBLEM | UR FOR MNM3
$3.34¢1 669
#41
EMBLEM | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$5.45¢2 725
#42
COLLAR
$2.94¢1 469
#43
GROMMET
$2.95¢1 475
#44
BOLT, HEX. SOCKET BUTTON
$7.34¢3 669
#45
WASHER, PLATE
$7.66¢3 831
#46
BOLT, HEX. SOCKET BUTTON
$1.75¢875
#47
BRACKET 8
$13.64¢6 819
#48
BOLT, FLANGE
$3.57¢1 787
#49
PANEL, INNER 1
$7.13¢3 563
#50
PANEL, INNER 2
$7.28¢3 638
#51
SCREW, TRUSS HEAD TAPPING
$1.71¢856
#52
RIVET
$6.78¢3 388
#53
PANEL, INNER 3
$44.56¢22 281
#54
SCREW, TRUSS HEAD TAPPING
$1.71¢856
