WINDSHIELD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

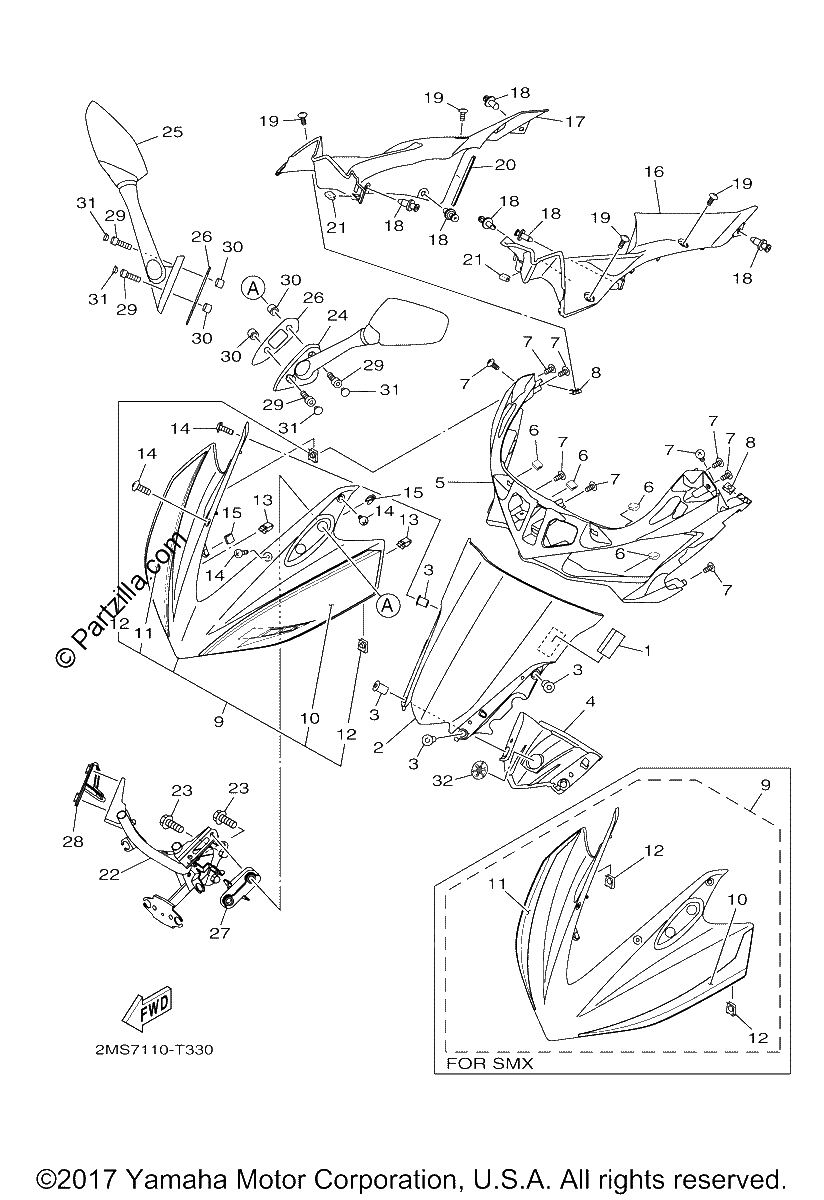

Diagrama de WINDSHIELD

Repuestos

#1
1WD-F815K-10-00
LABEL, NOTICE WINDSHIELD 1
$1.18¢592
1
#2
1WD-F8381-00-00
WINDSHIELD
$90.48¢45 241
1
#3
90179-05523-00
NUT
$6.23¢3 117
1
#4
1WD-H3559-00-00
COVER, METER
$13.89¢6 946
1
#5
1WD-F835G-00-00
BODY, FRONT UPPER 1
$36.54¢18 268
1
#6
1WD-F8376-00-00
TRIM
$2.71¢1 357
1
#7
97702-50016-00
TAPPING SCREW
$2.17¢1 087
1
#8
90183-050A7-00
NUT, SPRING
$2.86¢1 432
1
#9
1WD-XF83F-40-P0
BODY COWLING SUB ASSY
$42.61¢21 304
1
#9
1WD-XF83F-30-P0
BODY COWLING SUB ASSY
$48.13¢24 064
1
#10
1WD-F8391-E0-00
. . GRAPHIC 1
$5.99¢2 996
1
#10
1WD-F8391-F0-00
. . GRAPHIC 1
$3.07¢1 535
1
#11
1WD-F8392-E0-00
. . GRAPHIC 2
$5.99¢2 996
1
#11
1WD-F8392-F0-00
. GRAPHIC 2
$3.42¢1 708
1
#12
90183-05042-00
NUT, SPRING
$1.15¢575
1
#13
44D-F8379-00-00
HOOK
$5.65¢2 823
1
#14
90150-05023-00
SCREW,ROUND HEAD
$3.06¢1 529
1
#15
1WD-F8376-00-00
TRIM
$2.71¢1 357
1
#16
1WD-F836N-00-00
PANEL, INNER 4
$10.87¢5 434
1
#17
1WD-F836R-00-00
PANEL, INNER 5
$32.18¢16 089
1
#18
90269-06081-00
RIVET
$6.23¢3 117
1
#19
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
1
#20
1WD-F1278-00-00
MOLD
$1.12¢558
1
#21
1WD-F8376-00-00
TRIM
$2.71¢1 357
1
#22
1WD-F8356-00-00
STAY 1
$40.01¢20 004
1
#23
95817-08035-00
BOLT,FLANGE (replaces 90105-08108-00)
$7.30¢3 651
1
#24
1WD-F6280-10-00
REAR VIEW MIRROR ASSY (LEFT)
$145.58¢72 789
1
#25
1WD-F6290-10-00
REAR VIEW MIRROR ASSY (RIGHT)
$146.87¢73 433
1
#26
1WD-F8483-00-00
PLATE, RUBBER 1
$7.28¢3 640
1
#27
1WD-F8484-00-00
PLATE, RUBBER 2
$9.91¢4 956
1
#28
1WD-F8485-00-00
PLATE, RUBBER 3
$9.12¢4 560
1
#29
91317-06025-00
BOLT
$2.24¢1 121
1
#30
90387-068C2-00
COLLAR
$1.61¢805
1
#31
90338-05010-00
PLUG
$6.87¢3 433
1
#32
1PA-F836B-00-00
TUNING FORK MARK
$31.65¢15 824
1
