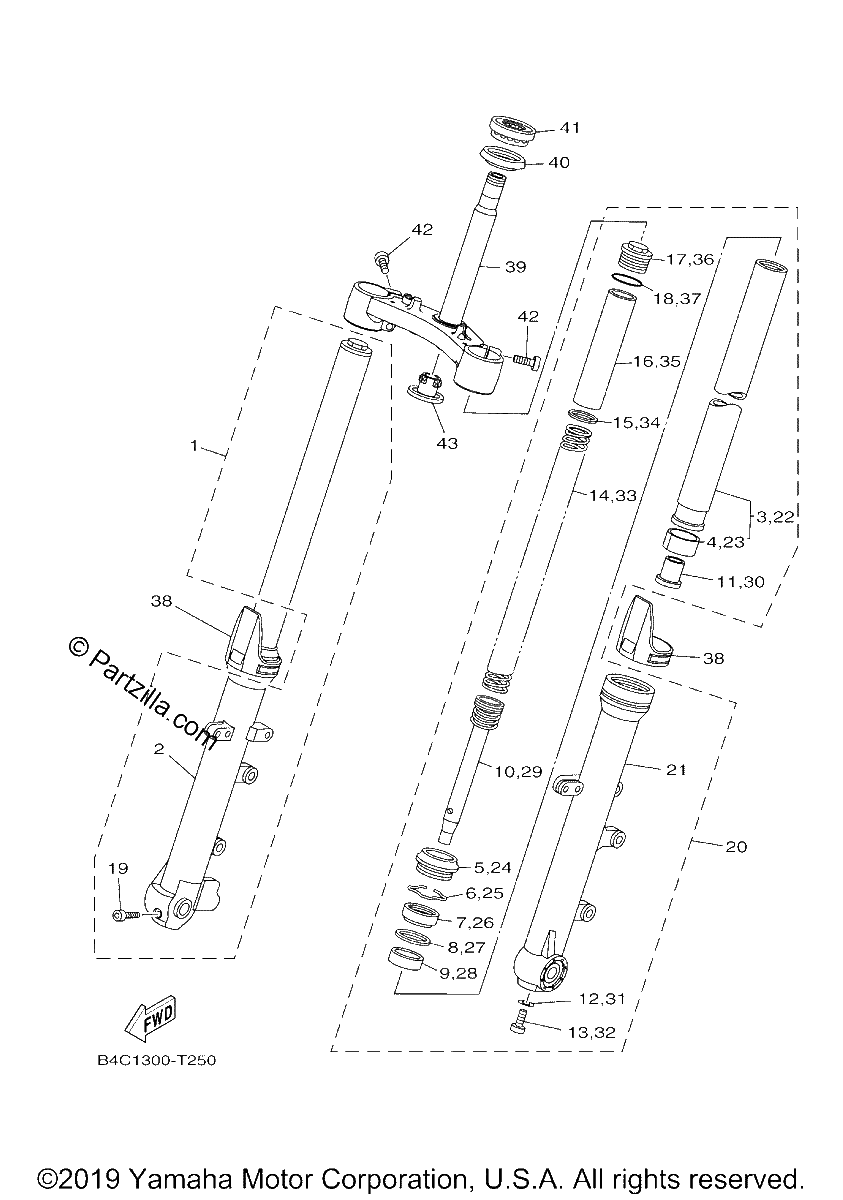

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (R.H) (replaces B4C-23103-00-00)
$583.34¢291 669
#2
TUBE, OUTER 2
$382.50¢191 250
#3
INNER TUBE COMP.1
$210.89¢105 444
#4
PISTON,FRONT FORK
$23.21¢11 606
#5
SEAL, DUST
$23.21¢11 606
#6
RING, SNAP
$7.88¢3 938
#7
OIL SEAL
$28.90¢14 450
#8
WASHER, OIL SEAL
$26.29¢13 144
#9
METAL,SLIDE 1
$34.88¢17 438
#10
CYLINDER COMP., front fork
$104.75¢52 375
#11
SPINDLE, TAPER
$39.31¢19 656
#12
GASKET | (KYB)
$17.09¢8 544
#13
BOLT, HEXAGON SOCKET HEAD
$9.10¢4 550
#14
SPRING, FRONT FORK (replaces BC6-23141-00-00)
$46.61¢23 306
#15
WASHER,SPRING UPR
$3.33¢1 663
#16
SPACER
$21.66¢10 831
#17
BOLT, cap
$51.06¢25 531
#18
O-Ring
$7.65¢3 825
#19
BOLT (3JP)
$6.25¢3 125
#20
FRONT FORK ASSY (L.H) (replaces B4C-23102-00-00)
$568.01¢284 006
#21
TUBE, OUTER (L.H) (replaces 1WS-23126-00-00)
$408.27¢204 138
#22
INNER TUBE COMP.1
$210.89¢105 444
#23
PISTON,FRONT FORK
$23.21¢11 606
#24
SEAL, DUST
$23.21¢11 606
#25
RING, SNAP
$7.88¢3 938
#26
OIL SEAL
$28.90¢14 450
#27
WASHER, OIL SEAL
$26.29¢13 144
#28
METAL,SLIDE 1
$34.88¢17 438
#29
CYLINDER COMP., front fork
$104.75¢52 375
#30
SPINDLE, TAPER
$39.31¢19 656
#31
GASKET | (KYB)
$17.09¢8 544
#32
BOLT, HEXAGON SOCKET HEAD
$9.10¢4 550
#33
SPRING, FRONT FORK (replaces BC6-23141-00-00)
$46.61¢23 306
#34
WASHER,SPRING UPR
$3.33¢1 663
#35
SPACER
$21.66¢10 831
#36
BOLT, cap
$51.06¢25 531
#37
O-Ring
$7.65¢3 825
#38
Cover
$9.19¢4 594
#39
UNDER BRACKET COMP.
$374.50¢187 250
#40
SEAL, STEERING
$25.53¢12 763
#41
BEARING
$66.19¢33 094
#42
BOLT, HEXAGON SOCKET HEAD
$2.73¢1 363
#43
COVER, UNDER 1
$14.65¢7 325
