INTAKE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

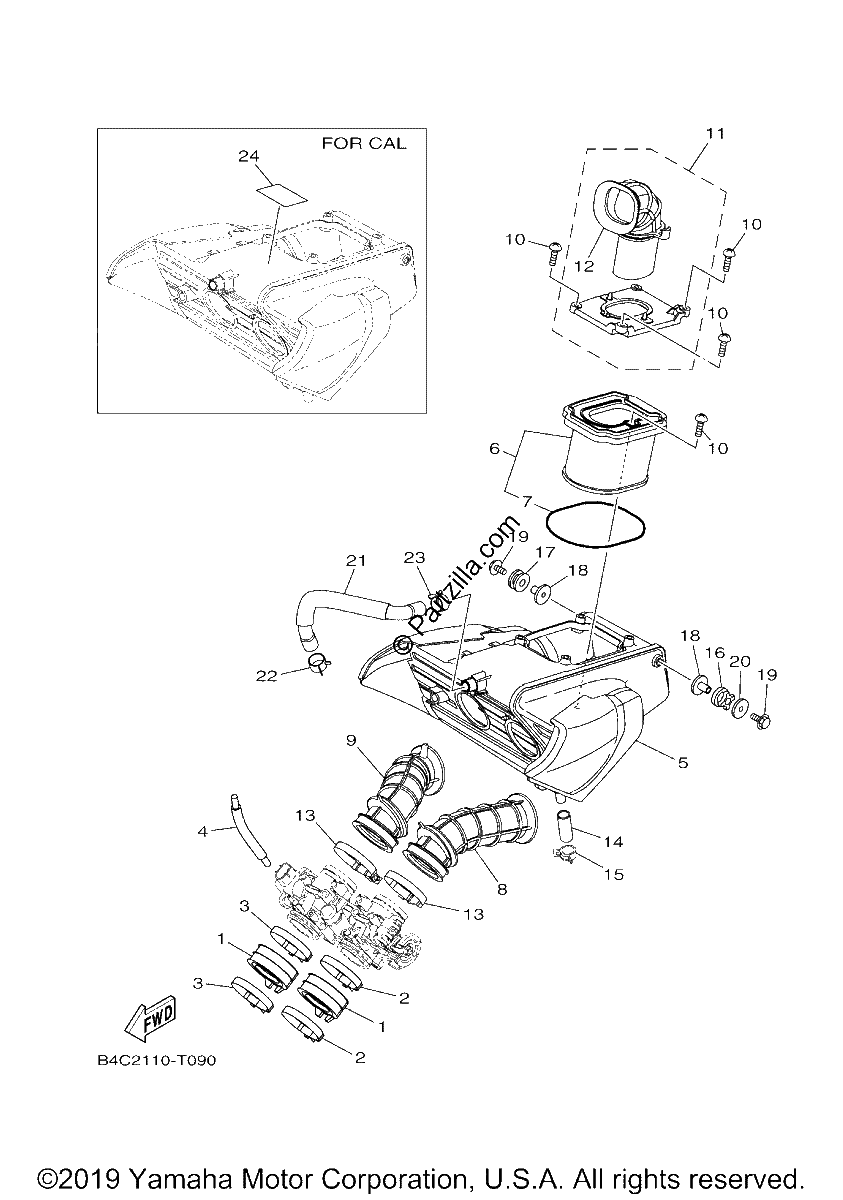

Diagrama de INTAKE

Repuestos

#1
1WS-13635-00-00
JOINT, INTAKE 1
$24.06¢12 029
1
#2
90450-56011-00
HOSE CLAMP ASSY
$11.36¢5 681
1
#3
90450-56012-00
HOSE CLAMP ASSY
$32.83¢16 416
1
#4
1WS-13542-00-00
HOSE, VACUUM SENSI
$4.70¢2 352
1
#5
B4C-14401-00-00
AIR CLEANER CASE ASSY
$119.70¢59 852
1
#6
1WS-14450-00-00
ELEMENT ASSY, AIR
$38.27¢19 136
1
#7
1WS-14452-00-00
SEAL
$7.38¢3 691
1
#8
1WS-14469-01-00
FUNNEL, AIR (replaces 1WS-14469-00-00)
$23.91¢11 954
1
#9
1WS-1446C-01-00
FUNNEL 2 (replaces 1WS-1446C-00-00)
$23.62¢11 811
1
#10
90160-05013-00
SCREW, ROUND TAPPING
$6.75¢3 375
1
#11
1WS-14430-10-00
DUCT ASSY
$33.26¢16 629
1
#12
1WS-14437-10-00
DUCT
$39.01¢19 504
1
#13
90450-56011-00
HOSE CLAMP ASSY
$11.36¢5 681
1
#14
1WS-1443E-00-00
PIPE, DRAIN
$4.46¢2 231
1
#15
90467-13133-00
CLIP(3YX) (replaces 90467-13083-00)
$5.77¢2 886
1
#16
90480-15001-00
Grommet
$7.68¢3 841
1
#17
90480-15014-00
Grommet
$4.40¢2 202
1
#18
90387-06300-00
Collar
$7.28¢3 640
1
#19
95817-06025-00
BOLT,FLANGE (replaces 90105-06125-00)
$1.61¢805
1
#20
90201-064K6-00
WASHER, PLATE
$6.88¢3 439
1
#21
1WS-11166-00-00
PIPE, BREATHER 1
$23.78¢11 891
1
#22
90467-17128-00
CLIP (replaces 90467-17089-00)
$7.30¢3 651
1
#23
90467-160A2-00
CLIP
$4.77¢2 386
1
#24
34B-21684-00-00
PLATE, ROUTING | FOR CALIFORNIA
$7.31¢3 657
1
