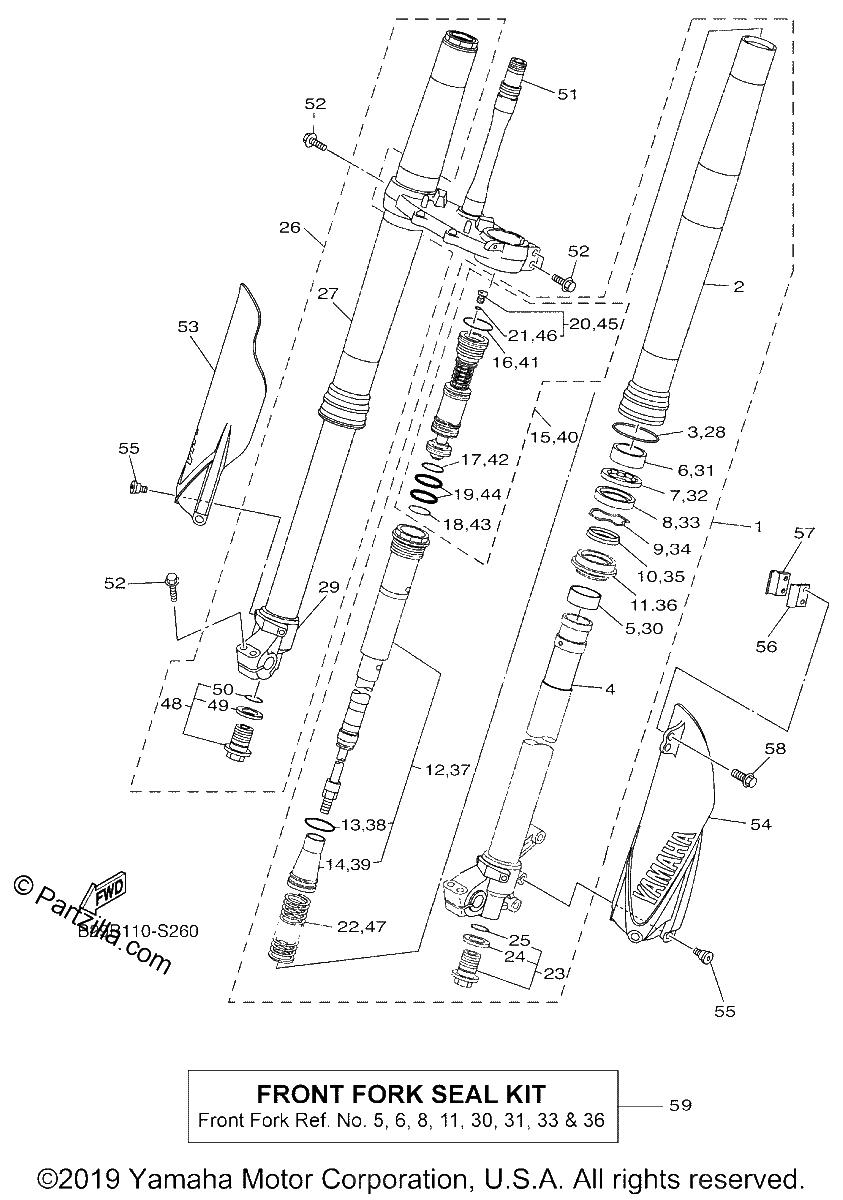

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$1484.99¢742 494
#2
TUBE, OUTER
$893.74¢446 869
#3
RING, SNAP
$4.97¢2 488
#4
INNER TUBE COMP.2
$483.26¢241 631
#5
PISTON, FRONT FORK
$24.64¢12 319
#6
METAL, SLIDE 1
$25.02¢12 513
#7
WASHER, OIL SEAL
$12.61¢6 306
#8
Oil Seal
$23.64¢11 819
#9
RING, SNAP
$7.65¢3 825
#10
SCRAPER
$19.71¢9 856
#11
SEAL, DUST
$22.95¢11 475
#12
CYLINDER COMP., front fork
$679.99¢339 994
#13
O-RING
$3.81¢1 906
#14
SEAT, SPRING UPPER
$84.49¢42 244
#15
VALVE COMP.
$367.52¢183 763
#16
O-RING
$3.26¢1 631
#17
O-RING
$7.65¢3 825
#18
O-RING
$7.08¢3 538
#19
GASKET
$8.85¢4 425
#20
AIR VALVE COMP.
$23.89¢11 944
#21
O-RING
$3.26¢1 631
#22
SPRING, FRONT FORK
$125.78¢62 888
#23
BOLT, CAP
$82.40¢41 200
#24
GASKET
$11.34¢5 669
#25
GASKET
$4.63¢2 313
#26
FRONT FORK ASSY (R.H)
$1484.99¢742 494
#27
TUBE, OUTER
$893.74¢446 869
#28
RING, SNAP
$4.97¢2 488
#29
INNER TUBE COMP.1
$389.86¢194 931
#30
PISTON, FRONT FORK
$24.64¢12 319
#31
METAL, SLIDE 1
$25.02¢12 513
#32
WASHER, OIL SEAL
$12.61¢6 306
#33
Oil Seal
$23.64¢11 819
#34
RING, SNAP
$7.65¢3 825
#35
SCRAPER
$19.71¢9 856
#36
SEAL, DUST
$22.95¢11 475
#37
CYLINDER COMP., front fork
$679.99¢339 994
#38
O-RING
$3.81¢1 906
#39
SEAT, SPRING UPPER
$84.49¢42 244
#40
VALVE COMP.
$367.52¢183 763
#41
O-RING
$3.26¢1 631
#42
O-RING
$7.65¢3 825
#43
O-RING
$7.08¢3 538
#44
GASKET
$8.85¢4 425
#45
AIR VALVE COMP.
$23.89¢11 944
#46
O-RING
$3.26¢1 631
#47
SPRING, FRONT FORK
$125.78¢62 888
#48
BOLT, CAP
$82.40¢41 200
#49
GASKET
$11.34¢5 669
#50
GASKET
$4.63¢2 313
#51
UNDER BRACKET COMP.
$589.99¢294 994
#52
BOLT, FLANGE
$6.88¢3 438
#53
PROTECTOR 2
$16.54¢8 269
#54
PROTECTOR 1
$16.54¢8 269
#55
BOLT
$3.93¢1 963
#56
CLAMP
$19.71¢9 856
#57
CLAMP
$26.99¢13 494
#58
BOLT, FLANGE
$5.05¢2 525
#59
Oil Seal
$23.64¢11 819
