WATER PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

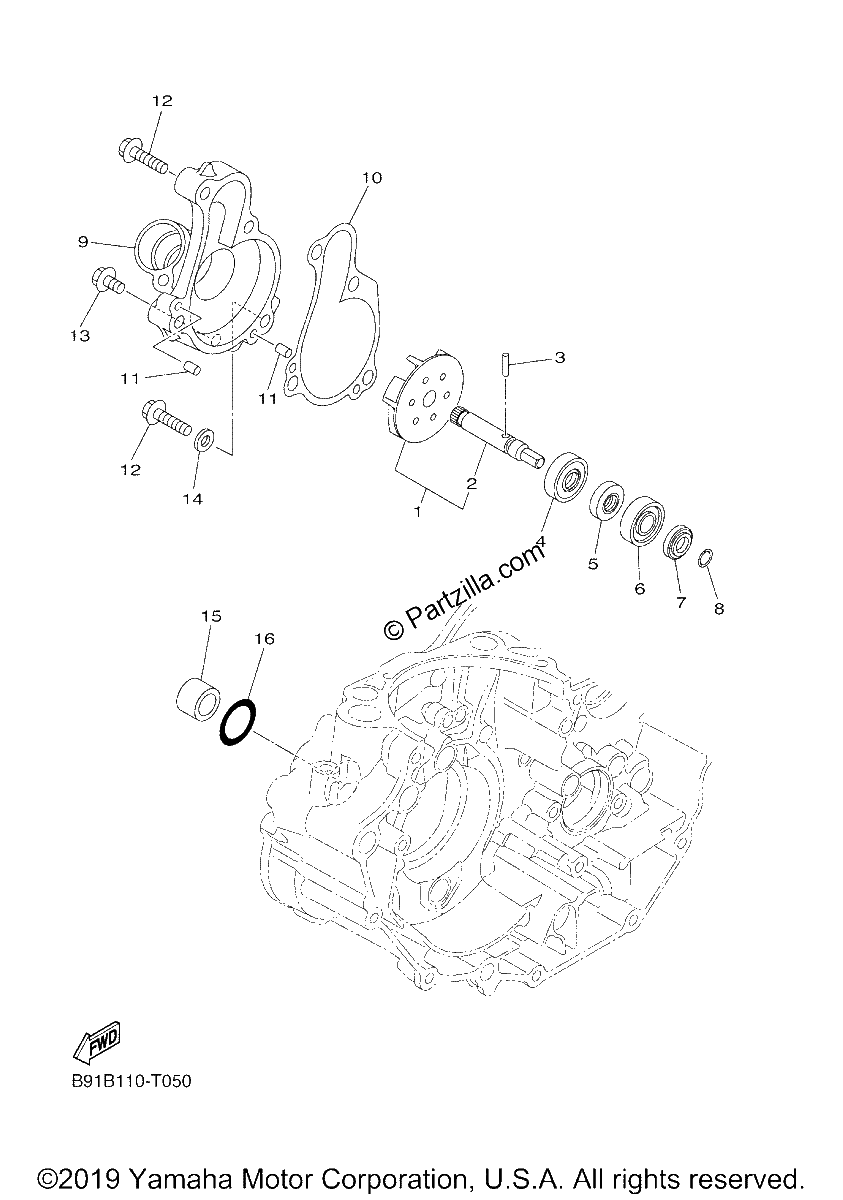

Diagrama de WATER PUMP

Repuestos

#1
BR9-12450-00-00
IMPELLER SHAFT ASSY (replaces 1SL-12450-01-00)
$39.42¢19 711
1
#2
BR9-12458-00-00
SHAFT, IMPELLER This item has been discontinued and may not be available. Contact us for more information.
No Disponible
1
#3
93603-12030-00
PIN, DOWEL
$2.13¢1 064
1
#4
93102-08004-00
Oil Seal
$9.12¢4 560
1
#5
93102-08307-00
OIL SEAL
$4.48¢2 242
1
#6
93300-60814-00
BEARING (1LX) (replaces 93300-60801-00)
$22.90¢11 448
1
#7
1SL-11917-00-00
Collar
$15.47¢7 734
1
#8
93440-07182-00
CIRCLIP
$3.44¢1 719
1
#9
33D-12422-00-00
Cover, Housing
$95.70¢47 851
1
#10
33D-12427-00-00
GASKET, HOUSING COVER 1
$6.99¢3 496
1
#11
93604-10011-00
PIN, DOWEL
$5.75¢2 875
1
#12
95022-06025-00
BOLT, FLANGE
$1.61¢805
1
#13
95022-06010-00
BOLT, FLANGE
$5.97¢2 984
1
#14
90430-06014-00
GASKET
$7.59¢3 795
1
#15
5BE-12564-00-00
PIPE, WATER
$9.54¢4 773
1
#16
93210-19758-00
O-Ring
$6.23¢3 117
1
